Product   model  WLT-043R-AP20

Basic   parameters

CPU: Cortex -A8 architecture,frequency 1.0GHZ

Memory: 512MB DDR3

Flash:256MB NandFlash

Display   screen

Size:4.3 inch

Resolution:480×272

Wide-temperature type,   64K colors or 260K colors

LED backlight:lifetime > 25000 hours

Touch screen

4-wire resistance   touch screen(driver inside)

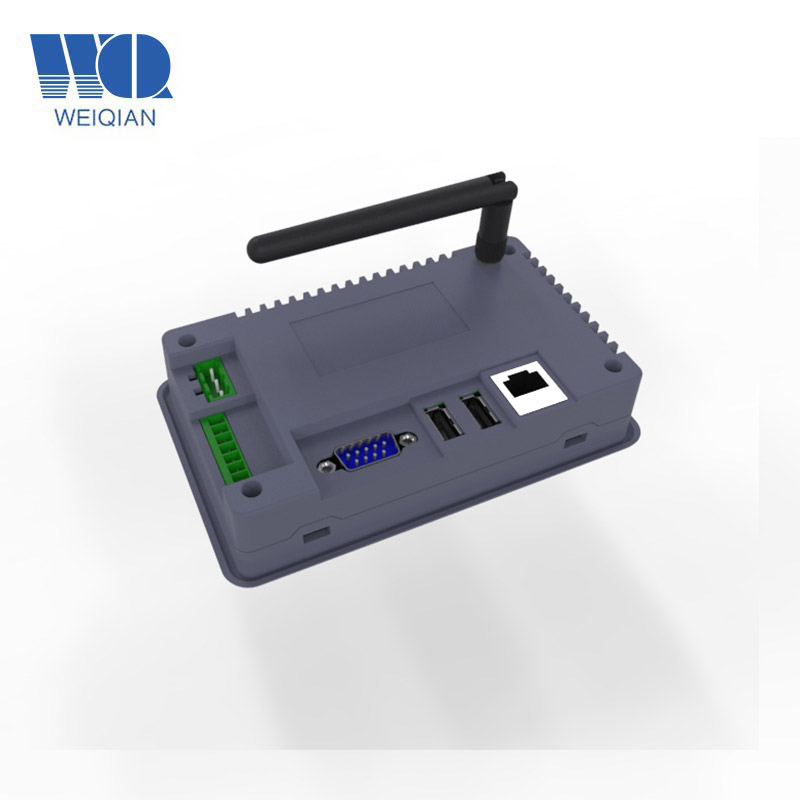

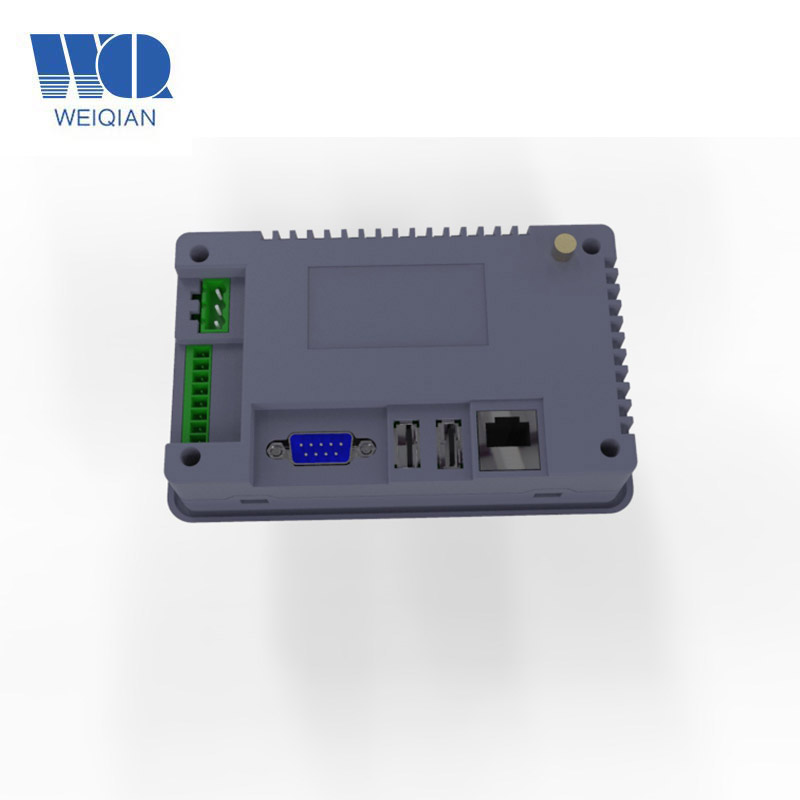

Hardware   interface

1 channel RS-232-DB9 interface(COM1)

1channel 3-wire RS-232 serial port(COM3)

2 channel RS-485 interface(COM2,COM4), COM2 is a multiplexing of  CAN .

 1 channel CAN bus.(optional)(driver inside)

1 channel USB device interface,support ActiveSync connect to PC to   exchange data and debug application.

2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

 1 channel 100M Ethernet interface.

1 channel SD/MMC slot, support TF   card.

1 channel WIFI module outside.(optional)

1 channel DC12V~24V, industrial   power solution

OS  Windows CE 6.0 R3

Defend   degree

IP65(front panel)

Working   Environment

 power:DC   12V~24V

 working temperature:-10~60ºC

storage temperature:-20~85ºC

working humidity:10~90%RH

Size

 shell structure:plastic

panel size:139.6×86.6 (mm)

 trepanning size:131.2×79.2 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

  Support CAN bus network deployment.

Software   support

 Flash power-down protection function.

IDE: Visual Studio 2005/2008.net(.net   2.0 Compact),EVC++,Labview development.

 Easy change the user-defined splash   screen.

Support display screen rotation(degree:   0/90/180/270)
