7 Inch Linux industrial panel PC Touch screen

Keywords :

industrial panel PC / Touch screen / 7 Inch Linux industrial panel PC Touch screen

  • Hits : 12
  • Company : Guangzhou Weiqian computer technology co., LTD.
  • Telephone :
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Users can easily set up the boot interface
  • Support CAN bus to facilitate customers to build fieldbus network
  • Front panel IP65 , designed by industrial standard
  • High stability,7x24 hours no shutdown no outage.
  • WQ brand factory direct sales.

Product Details

Product model  WLX-070R-AP10

Basic   parameters

CPU: Cortex -A8 architecture,frequency 1.0GHZ
Memory: 512MB DDR3
 Flash:256MB NandFlash

Display   screen
Size:7 inch
Wide-temperature type,64K colors or 260K colors
LED backlight:lifetime > 25000 hours

Touch   screen

4-wire resistance touch screen(driver inside)

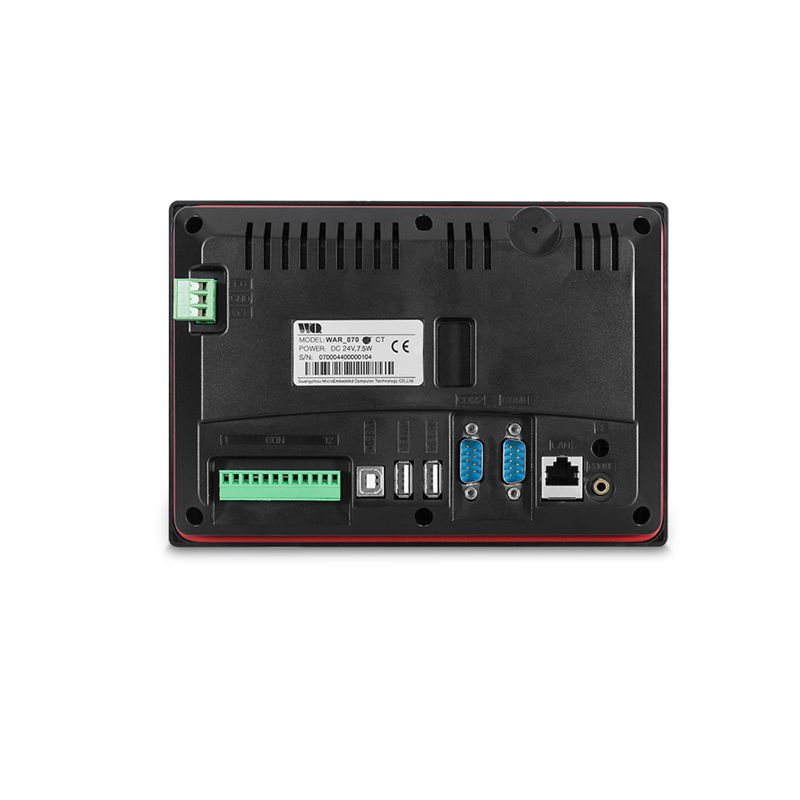

Hardware   interface

4 channel isolated 3-wire RS-232 serial port(COM1,COM2,COM3,COM4),2 channel(COM1、COM2)multiplex as RS-485 bus.
1 channel isolated CAN bus.(optional)
1 channel WIFI module inside.(optional)
1 channel USB device interface
2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.
1 channel 100M Ethernet interface.
1 channel SD/MMC slot.
1 channel 3.5mm audio output interface.
1 channel DC12V~24V,industrial power solution,higher reliability.

OS  Linux

Defend   degree

IP65 (front panel)

Working   environment

power:DC 12~24V ,600mA
working temperature:-10~60℃
storage temperature:-20~80℃
working humidity:10~90%RH


shell structure:plastic
panel size:206.00×142.00 (mm)
trepanning size:196.00×132   .00 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.
Support CAN bus network deployment.

Software   support

Flash power-down   protection function.
QT Creator(QT C++)development, easy to use other software flexibly.
  Easy change the user-defined splash   screen.
Support display screen rotation (degree:   0/90/180/270)
