Industrial Panel PC Embedded Industrial PC
Five Advantages Of Products
- WQ brand factory direct sales.
- Support CAN bus to facilitate customers to build fieldbus network
- Front panel IP65 , designed by industrial standard
- Multi- industrial communication interface RS-232, RS-485 .
- High stability,7x24 hours no shutdown no outage.
Product Details
Basic parameters
CPU: Cortex -A8 architecture,frequency 1.0GHZ
Memory: 512MB DDR3
Flash:256MB NandFlash
Display screen
Size:15 inch
Resolution:1024×768
Wide-temperature type,16000k colors or 24 true colors
LED backlight:lifetime > 25000 hour
Touch screen
5-wire resistance touch screen(driver inside)

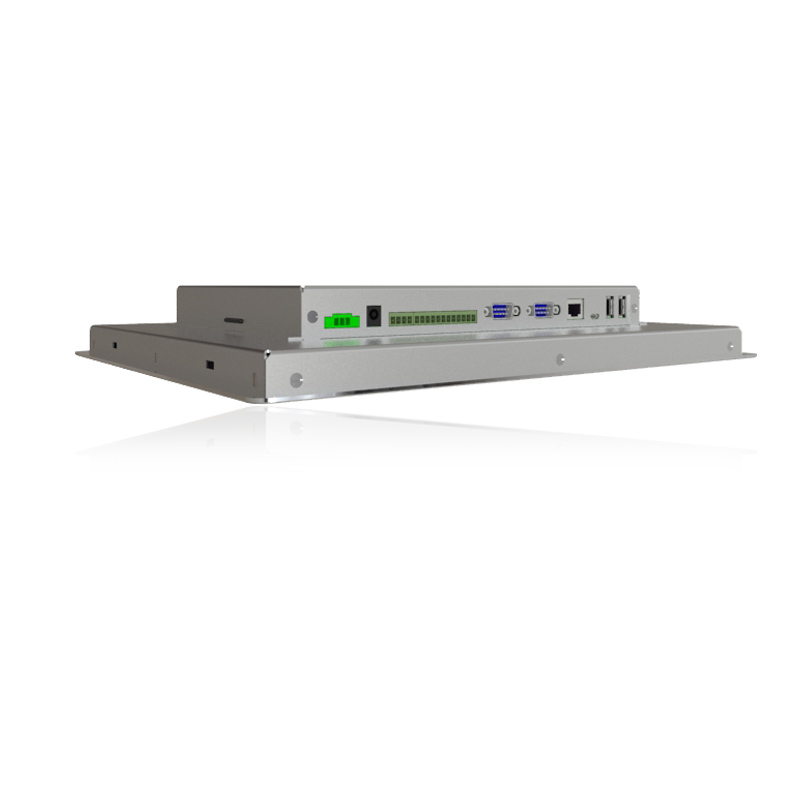

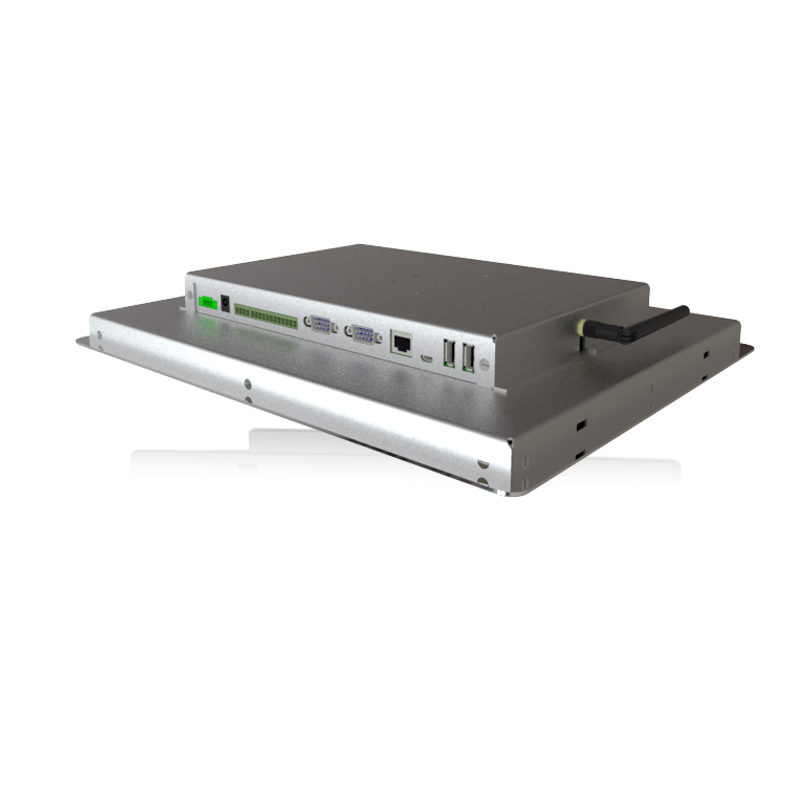

Hardware interface
2 channel DB9 interface(COM1,COM2)
1 channel 3-wire RS-232 serial port(COM3)
2 channel RS-485 interface(COM1、COM2 ), multiplex as COM1、COM2 of RS-232.(Signal isolated as optional)
1 channel CAN bus.(optional)
1 channel USB Device interface,support ActiveSync connect to PC to exchange data and debug application.
2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.
1 channel 100M Ethernet interface.
1 channel SD/MMC slot.
1 channel external Speaker interface.
1 channel external antenna.
2 channel DC12V~24V,industrial power solution,higher reliability.
Built-in WIFI, Bluetooth (optional )
OS Windows CE 6.0
Defend degree
IP65 (front panel)
Working Environment
power:12V-24V DC/3A
working Temperature:-10~60℃
storage temperature: -20~80℃
working humidity:10~90%RH
Size
shell structure:metal
panel size:378.5x302.5(mm)
trepanning size:360x284 (mm)
Application area
industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.
Support CAN bus network deployment.
Software support
Flash power-down protection function.
IDE: Visual Studio 2005/2008.net(.net 2.0 Compact)、Labview development.
Easy change the user-defined splash screen.
Support display screen rotation (degree: 0/90/180/270)
