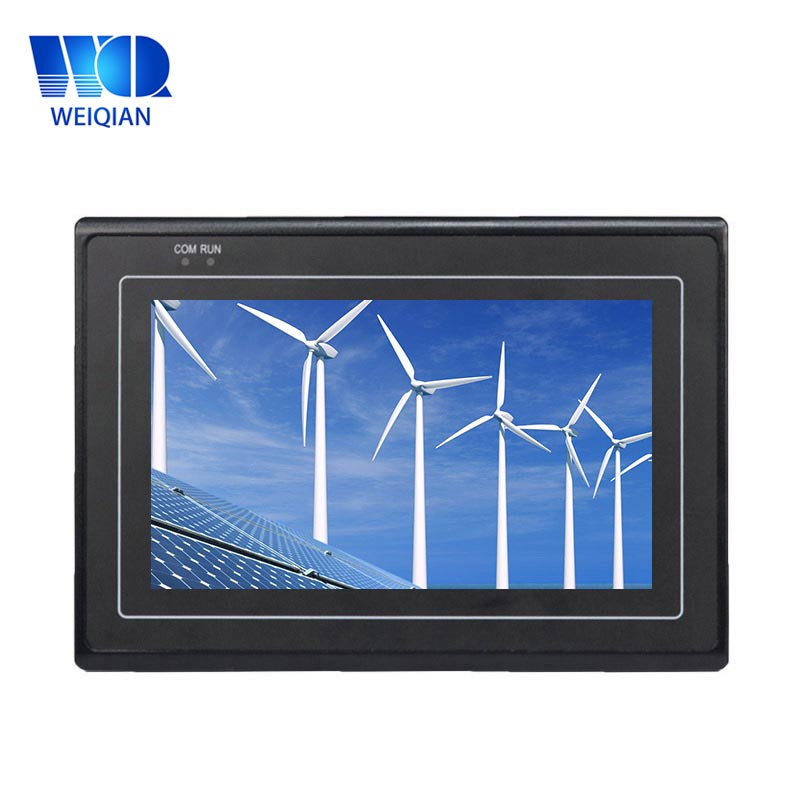

7Inch Wall-Mounted Linux plastic Industrial Panel PC Cortex®-A9 Architecture Fanless pc panel

Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • using Samsung’s 4418 industrial-grade CPU chip
  • rich interfaces
  • smooth operation experience comparable to smart phones
  • better heat dissipation
  • long-term operation is only slightly Temperature

Product Details

1.parameters

Product   model

WLX-070C-SP10/WLX-070R-SP10

Basic   parameters

CPU  Quad-core Cortex®-A9 architecture  frequency 1.4GHz

Memory  1GB DDR3

Flash  8GB NandFlash

Display   screen

Size  7 inch

Resolution  1024×600

Wide-temperature type  16000k colors or 24 true colors

LED backlight  lifetime > 25000 hours

Touch   screen

Capacitance/Resistance touch screen

Hardware   interface

4 channel 3-wire RS-232 serial port  COM1,COM2,COM3,COM4

2 channel RS-485  COM1 COM2 multiplex   as RS-232 (COM1  COM2)  Signal   isolated as optional

1 channel isolated CAN bus. optional

1 channel USB device interface.

2 channel USB Host interface support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot.

1 channel 3.5mm earphone output   interface.

1 channel built-in WIFI .  optional

DC12V~24V,  industrial power solution higher reliability.

Built-in WIFI , Bluetooth module .  optional

OS

Linux

Defend   degree

IP65 (front panel)

Working   environment

power DC 12V-24V  24V   as recommendation

working Temperature -10~55

storage temperature -20~85

working humidity   from10 to 90%RH

Size

shell structure plastic

panel size 206.00×142.00  mm

trepanning size  195.6×131.6  mm

Application   area

industrial control detection device instruments and meters security monitoring medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software   support

QT Creator QT C++ development, easy to use other software flexibly.

Easy change the user-defined splash   screen.

Support display screen rotation (degree:   0/90/180/270).

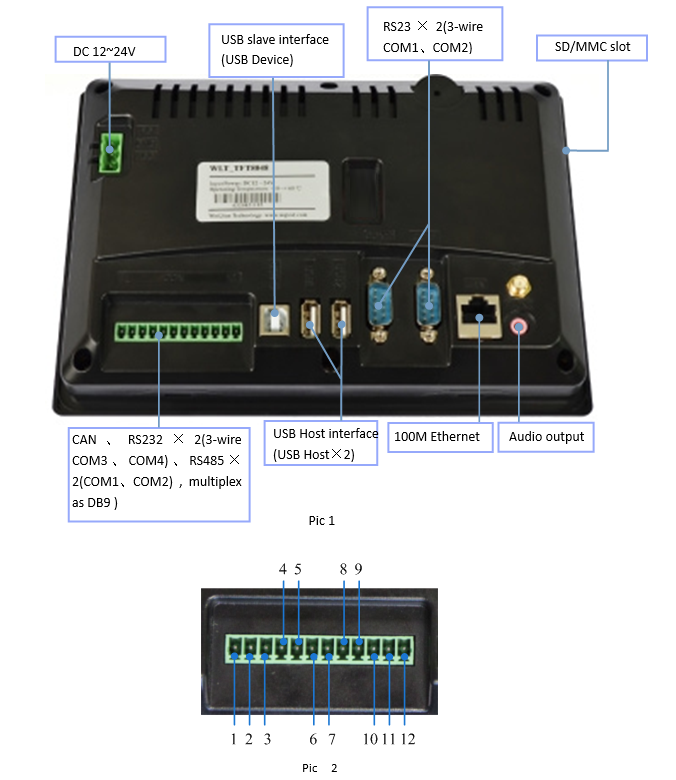

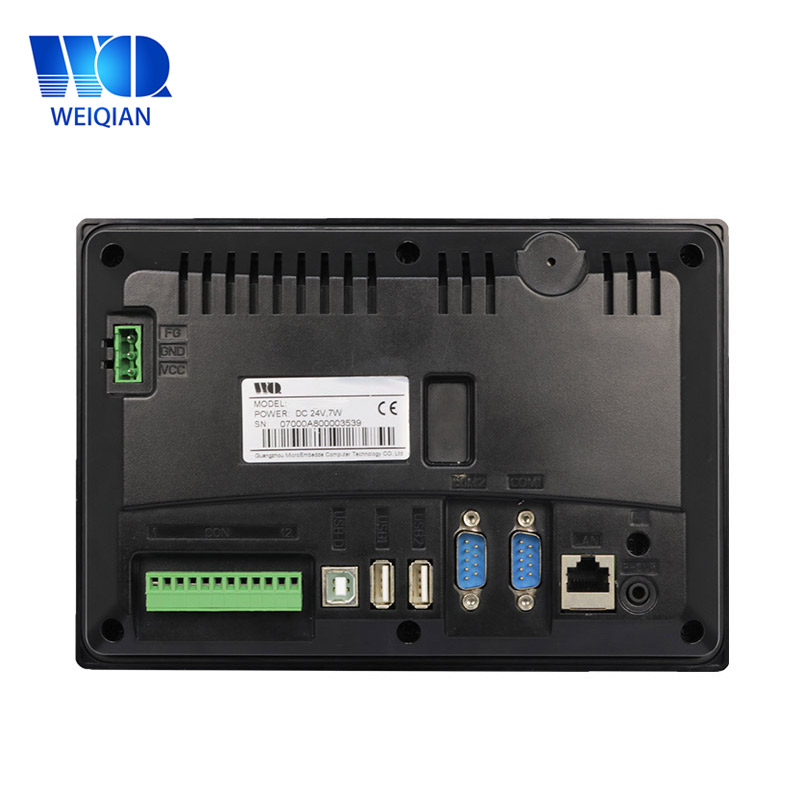

2.Interface definition



1        CANL                                     2       CANH

3       GND                                       4       COM3-RX of RS-232

5       COM3-TX of RS-232              6       COM4-RX of RS-232

7       COM4-TX of RS-232              8       COM2-485B

9       COM2-485A                          10     GND

11     COM1-485B                           12     COM1-485A


2.1 RS-232 interface

4 channel serial port support the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM4. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485.


2.2 RS-485 interface

The corresponding port in Linux system is COM1  COM2. And COM1/COM2 is a multiplexing of COM1/COM2 of RS-232 interface. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .


2.3 CAN Bus interface

The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .


2.4 Power interface

As shown in the figure:



3. Exterior size

Exterior size  206×142  mm         Trepanning size  195.6×131.6  mm
