1.Parameters

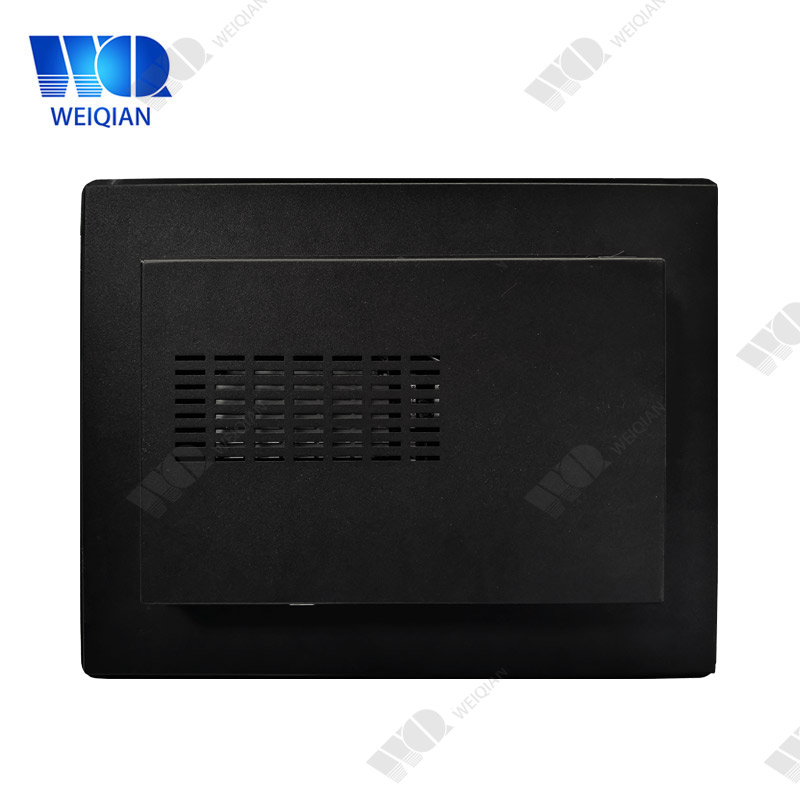

Product model

WPC-150C(R)-JM10

Basic parameters

● CPU   Quad -core J1900 ;  Frequency 2.0GHz

● Integrated graphics: HD Grahics

● Memory  4GB   8G as option   DDR3

● Hard Disk  64GB

Display screen

● Size  15 inch

● Resolution  1024×768

● Wide-temperature type  16000k colors or 24-bit true colors

● LED backlight   lifetime > 25000 hours

Touch screen

Capacitance touch screen

Hardware interface

● 1 channel VGA interface.

● 3 channel RS-232 interface .

● 1 channel RS-485 interface .

● 1 channel HDMI interface.

● 1 channel USB Host 3.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc.

● 1 channel USB Host 2.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc.

● 2 channel 1000M Ethernet interface.

● 1 channel 3.5 audio interface & 1 channel Microphone interface .

● External antenna interface ( WIFI as option)

● 1 channel DC 5.5-2.1 (DC 12V ) power iuput interface.

● 1 channel power button switch .

● Built-in 4G Module or WIFI  (optional) .

Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.

OS

Windows 7/ Windows10

Defend degree

 IP65 (front panel)

Working environment

● power  DC 12V/3A

● working temperature  -10~55℃

● storage temperature  -20~80℃

● working humidity   from10 to 90%RH

Size

● shell structure  Metal

● panel size  378.5×302.5 mm

● trepanning size   360×284  mm

Application area

● industrial control  detection device  instruments and meters  security monitoring  medical apparatus and instruments, intelligent terminals embedded high-end

application.

Software support

● Support universal Windows development software

● Easy change the user-defined splash screen.

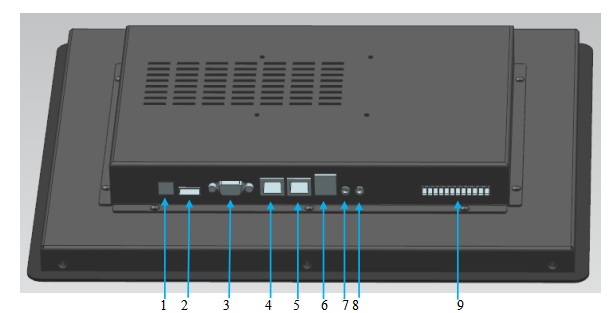

2. Interface definition

1  Power interface

2  HDMI interface

3  VGA interface

4  1000M Ethernet interface

5  1000M Ethernet interface

6  USB Host 3.0 + USB Host 2.0

7  Microphone interface

8  Audio interface

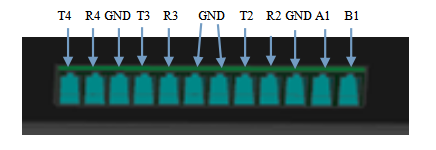

9  COM4-232/COM3-232/COM2-232/COM1-485  (from Left to Right)

2.1 RS-232 interface

3 channel RS-232 serial port   support the highest-level baudrate 115200bps. The corresponding port  in Windows system : COM2 ,COM3 , COM4

 2.2 RS-485 interface

The corresponding port in Windows system is COM1.

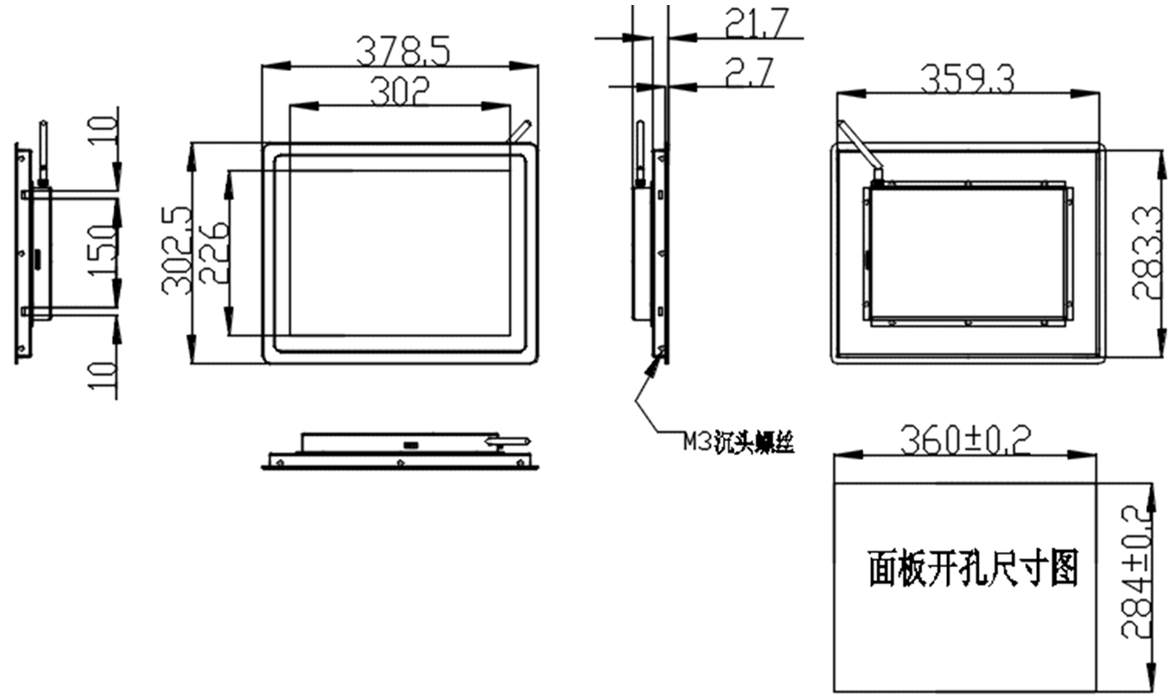

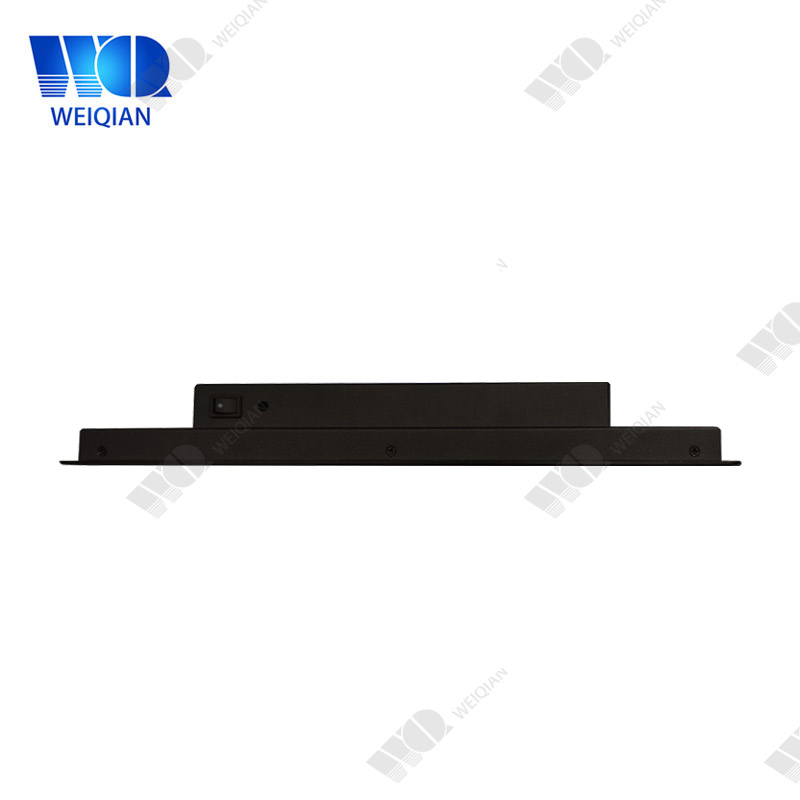

3. Exterior size

Exterior size   378.5×302.5×48.7    mm     Trepanning size    360×284  mm
