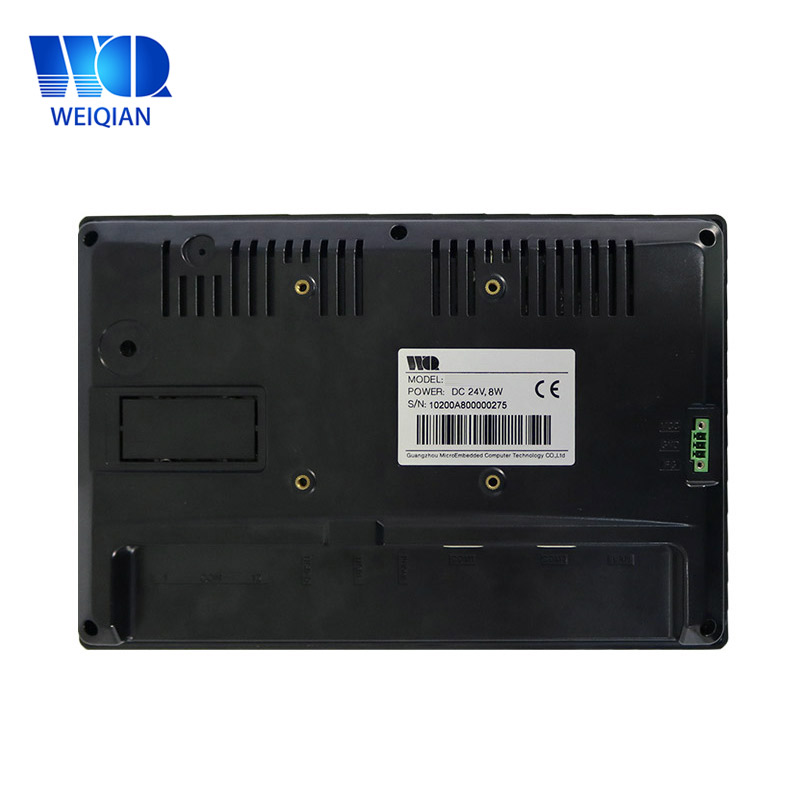

10.2 Inch WinCE Industrial Panel Computer

Keywords :

WinCE Industrial PC 10.2 inch / 10.2 inch WinCE Industrial Panel Computer / 10.2 Inch WinCE Industrial Panel Computer


  • Hits : 1245
  • Company : Guangzhou Weiqian computer technology co., LTD.
  • Telephone : bella@wqlcd.com
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
  • High reliability, no handling errors are allowed, and strict tests are passed
  • With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
  • Communication interface suitable for industrial use, easy to expand
  • Simple and easy secondary development, multi-platform, multi-language support, providing routines

Product Details

1.Parameters


Product model

WLT-102R-AP20


Basic parameters

● CPU    Cortex® A8 Architecture   frequency 1.0GHZ

● Memory    512MB DDR3

● Flash    256MB NandFlash


 Display screen

● Size   10.2 inch

● Resolution   800×480

● LED backlight   lifetime>25000 hours


Touch screen

4-wire resistance touch screen


Hardware interface

● 4 channe● 3-wire RS-232 serial port   COM1,COM2,COM3  COM4    2 channel   COM1   COM2  multiplexing as RS-485 bus.   serial port with isolated mode as optional

● 1 channel CAN bus.  optional

● 1 channel USB Device interface  support ActiveSync connect to PC to exchange data and debug application.

● 3 channel USB Host interface   support usual USB device such as mouse, keyboard, U disk ,etc.

● 1 channel 100M Ethernet interface.

● 1 channel WIFI module inside.  optional

● 1 channel SD/MMC slot.

● 1 channel 3.5mm audio output interface.

● 1 channel DC12V~24V   industria● power solution   higher reliability.


OS

Windows CE 6.0 R3


Defend degree

IP65 (front panel)


Working Environment

● power   12V DC  12V as recommendation  the range is 12V~24V   700mA

● working Temperature   -10~60°C

● Working humidity    from 10 to 90%RH


Size

● structure  plastic

● Panel size   275×181  mm

● Trepanning size  266×171  mm


 Application area

● industrial control  detection device  instruments and meters  security monitoring  medical apparatus and instruments, intelligent terminals embedded high-end application.

● Support CAN bus network deployment.


 Software support

● Flash power-down protection function.

● IDE: Visual Studio 2005/2008.net(.net 2.0 Compact)  EVC++  Labview development.

● Easy change the user-defined splash screen.

● Support display screen rotation (degree: 0/90/180/270)


2.Interface definition

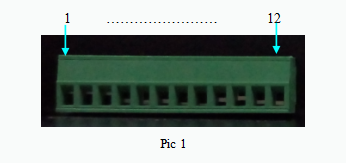

1. CANL                                    2. CANH

3. GND                                     4. COM3-RX of RS-232

5. COM3-TX of RS-232            6. COM4-RX of RS-232

7. COM4-TX  of RS-232           8. COM2-485B

9. COM2-485A                        10. GND

11. COM1-485B



1. USB slave interface  USB Device                        2. USB Host interface  USB host

3. Audio output                                                      4. RS-232 ( COM1,COM2 )  isolated

5. 100M Ethernet



2.1 RS-232 interface

4 channels  support the highest-level baudrate 115200bps. The corresponding interface in Win CE system is COM1 ~ COM4.


2.2 RS-485 interface

The corresponding port in WinCE system is COM1   COM2. And COM1/COM2 is a multiplexing of RS-232 interface.


2.3 CAN Bus interface

The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance ,pls specify if in need.


2.4 Power interface

As shown in the figure:


3.Exterior size

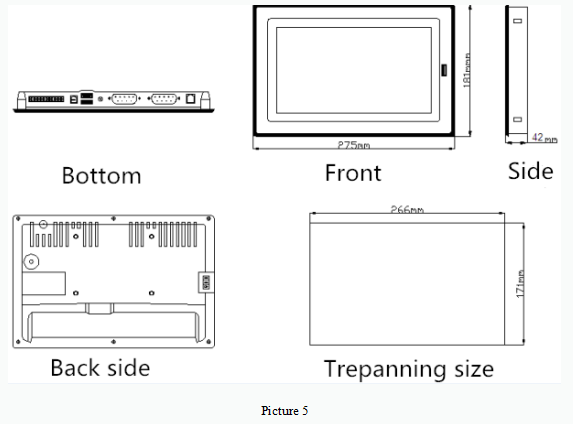

Exterior size  275x181x42  mm      Trepanning size  266x171  mm
