Products
Industrial Touch Screen Panel PC,7 inch industrial computer Industrial
Five Advantages Of Products
- Users can easily set up the boot interface
- Easy for secondary development
- adapting to various harsh environments
- Front panel IP65 , designed by industrial standard
- Multi- industrial communication interface RS-232, RS-485 .
Product Details
Industrial Touch Screen Panel PC,7 inch industrial computer Industrial Product Details
Product model WAR-070C-SS10
Basic parameters
CPU: Cortex-A9 architecture,4 core, frequency 1.0GHZ
Memory: 1GB DDR3
Flash:8GB EMMC
Display screen
size:7 inch
resolution:1024x600
fargong-tempreature,16,000K colors or 24-bit true color
LED backlight:liftetime > 25000 hour
Touch screen
Capacitive touch screen with 5 point multi-touch

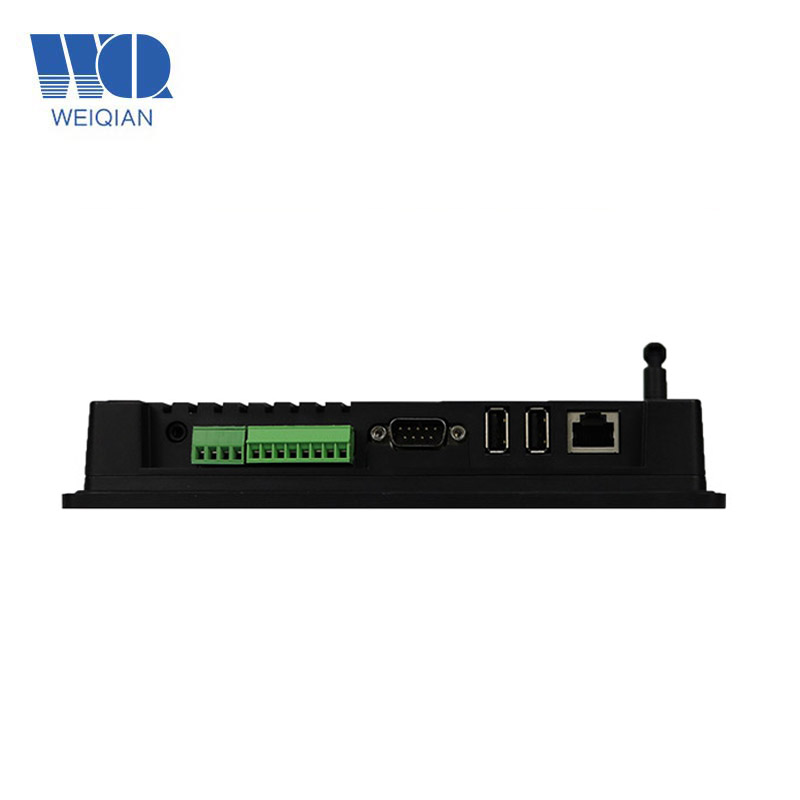

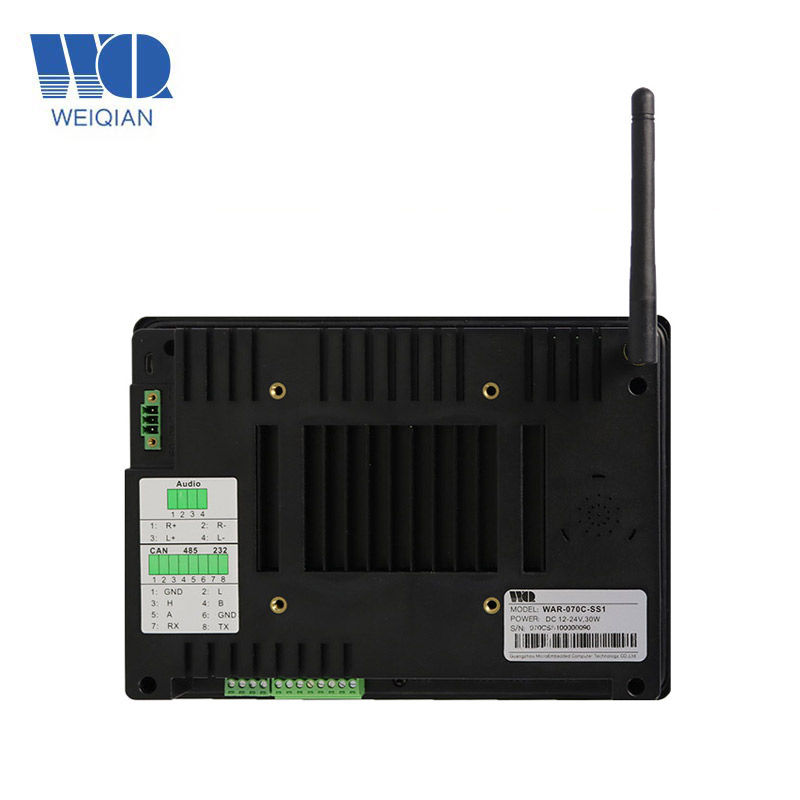

Industrial Touch Screen Panel PC,7 inch industrial computer Industrial Hareware interface
1 channel DB9(COM1)
1 channel 3-wire RS-232 uart(COM2)
1 channel RS-485(COM3)
1 channel isolating CAN bus(optional)
1 channel external earial
1 channel USB Device interface,support ADB connect to PC to exchange data and debug application.
2 channel USB Host interface, support usual usb deivices, such as mouse,keyboard, U disk and so on.
1 channel 10/100 ethernet.
1 channel TF slot, to support mini SD card or TF card.
1 channel audio output interface.
1 channel speaker with dual tracks.
1 channel slot for sim card to support 4G.
DC12V~24V power input.
l4G/wifi/bluetooth module is built-in for option.
OS Android 4.4.2
Defend degree
IP65(frontpanel)
Working environment
power:DC12V ~ 24V(24V as recommendation),600mA
working temperature:-10~60℃
storage temperature:-20~85℃
humidity:10~90%RH
size
shell structure:plastics
panel size:206.00×142.00(mm)
trepanning size:195.6×131.6(mm)
Industrial Touch Screen Panel PC,7 inch industrial computer Industrial
Application Area
industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminal and so on.
Support canbus network deployment.
software support
IDE supported:Eclipse+ADT、Android Studio、QT Creator、Visual Studio 2015/2017
Development language: JAVA/C/C++/C# and so on.
Easy change the user-defined splash screen.
