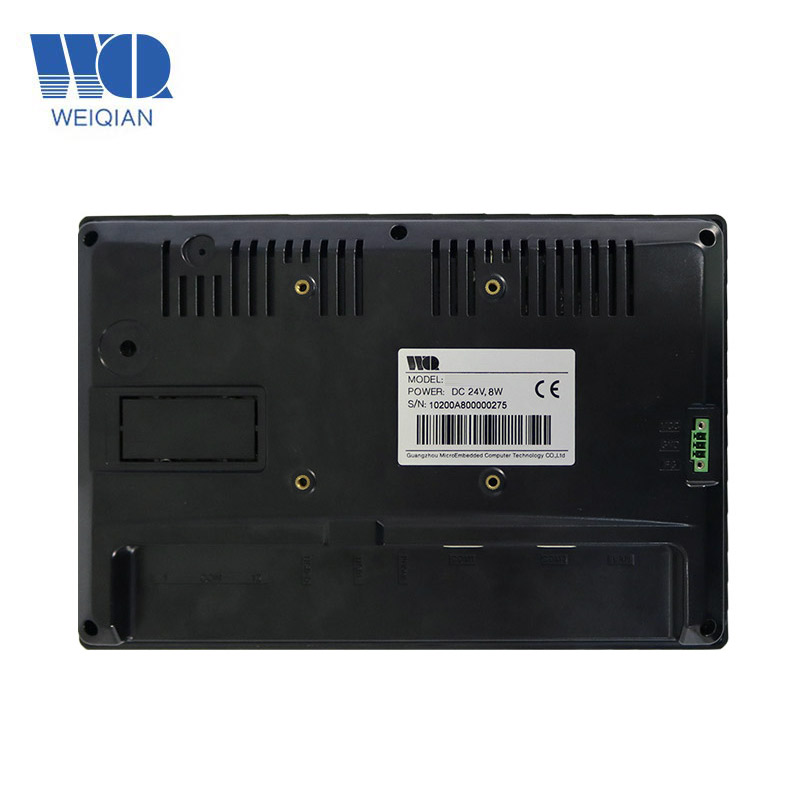

10.1 Inch Resistive Touch Screen Panel High Resolution All In One PC With Touch Screen  Product Details

 Product   model  WAR-101C-SP10/WAR-101R-SP10

Basic   parameters

CPU:Quad-core Cortex®-A9 ,frequency   1.4GHz

Memory:1GB DDR3

Flash:8GB NandFlash

Display   screen

Size:10.1 inch

Resolution:1280×800

Wide-temperature type,16000k colors or 24 true colors

LED backlight:lifetime > 25000 hours

Touch   screen

Capacitance/Resistance touch screen

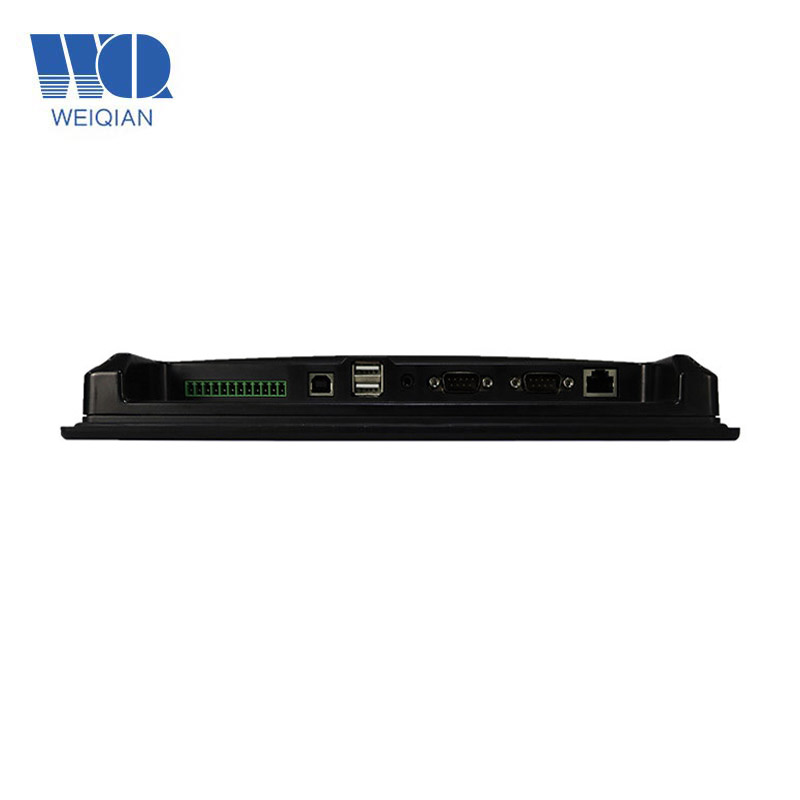

10.1 Inch Resistive Touch Screen Panel High Resolution All In One PC With Touch Screen Hardware   interface

4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4).

2 channel RS-485(COM1、COM2)multiplex as RS-232 (COM1、COM2).(Signal   isolated as optional)

1 channel isolated CAN bus.(optional).

1 channel USB device interface,support   ADB connect to PC to exchange date and debug application .

2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot,support   TF/mini SD card.

1 channel 3.5mm audio output   interface.

1 channel WIFI interface.(optional)

1 channel DC 12V~24V,industrial   power solution,higher reliability.

OS  Android 4.4.2

Defend   degree

IP65 (front panel)

Working   environment

power:DC 12V-24V (24V   as recommendation)

working temperature:-10~55℃

storage temperature:-20~80℃

working humidity:10~90%RH

Size

shell structure:plastic

panel size:275.00×181.00 (mm)

trepanning size:266.00×171 .00 (mm)
10.1 Inch Resistive Touch Screen Panel High Resolution All In One PC With Touch Screen Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software   support

Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

Easy change the user-defined splash   screen.
