Product Details

Touch Screen Industrial Monitor,7 inch Industrial tablet Computer

 Product   model    WLT-070R-NP00

Basic   parameters

CPU:ARM9 architecture,frequency 300MHZ

 Memory: 64MB DDR2

Flash:256MB NandFlash

Display   screen

 Size:7 inch

 Resolution:800×480

Wide-temperature type,64K colors or 260K colors

LED backlight:lifetime > 25000 hours

Touch   screen


4-wire resistance touch screen(driver inside)

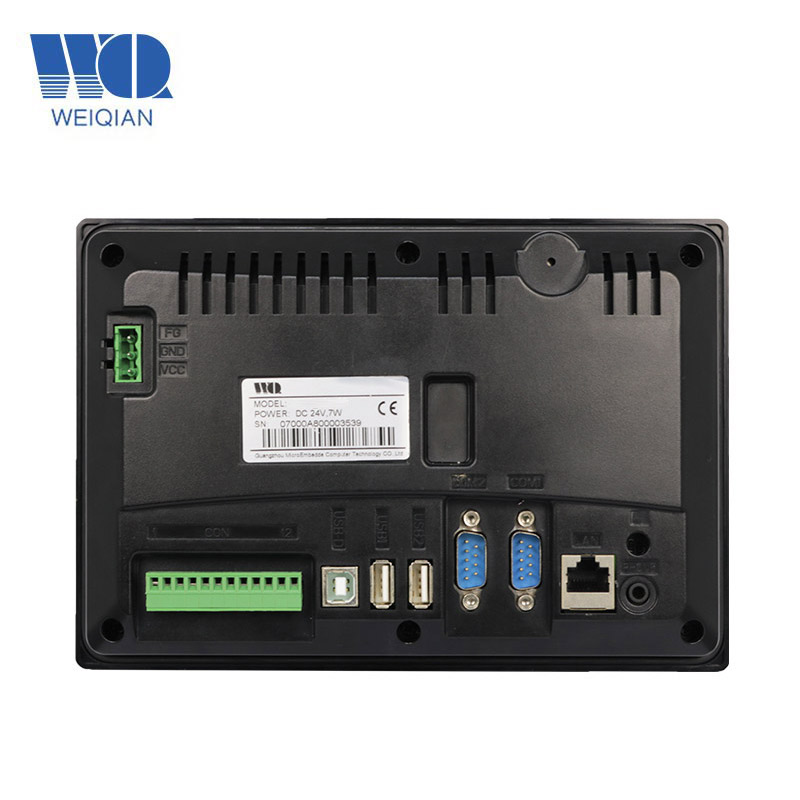

Touch Screen Industrial Monitor,7 inch Industrial tablet Computer Hardware   interface


 4 channel 3-wire RS-232 serial port(COM1,COM2,COM5,COM8).

3 channel RS-485 serial port(COM3、COM7、COM9), COM3 is a multiplexing of CAN,   COM3 as standard .

 1 channel CAN bus, multiplex as COM3(optional)

1 channel built-in WIFI module .(optional)

1 channel USB device interface,support ActiveSync connect to PC to   exchange data and debug application.

 2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot.

1 channel 3.5mm audio output interface.

1 channel DC12V~24V,industrial power solution,higher reliability.

OS    Windows CE 6.0 R3

Defend   degree    IP65 (front panel)

Working   Environment

 power:12~24V DC(24V   as recommendation),600mA

 working temperature:-10~60℃

 Storage temperature:-20~80℃

 working humidity:10~90%RH

Size

 shell structure:plastic

panel size:206.00×142.00 (mm)

 trepanning size:196.00×132 .00 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

 Support CAN bus network deployment.

Touch Screen Industrial Monitor,7 inch Industrial tablet Computer Software support

 Flash power-down protection function.

 IDE: Visual Studio 2005/2008.net(.net 2.0 Compact)、Labview development.

 Easy change the user-defined splash screen.

Support display screen rotation (degree: 0/90/180/270)
