Product   model   WLT-070R-AP20
 Basic parameters

CPU: Cortex -A8 architecture,frequency 1.0GHZ

Memory: 512MB DDR3

Flash:256MB NandFlash

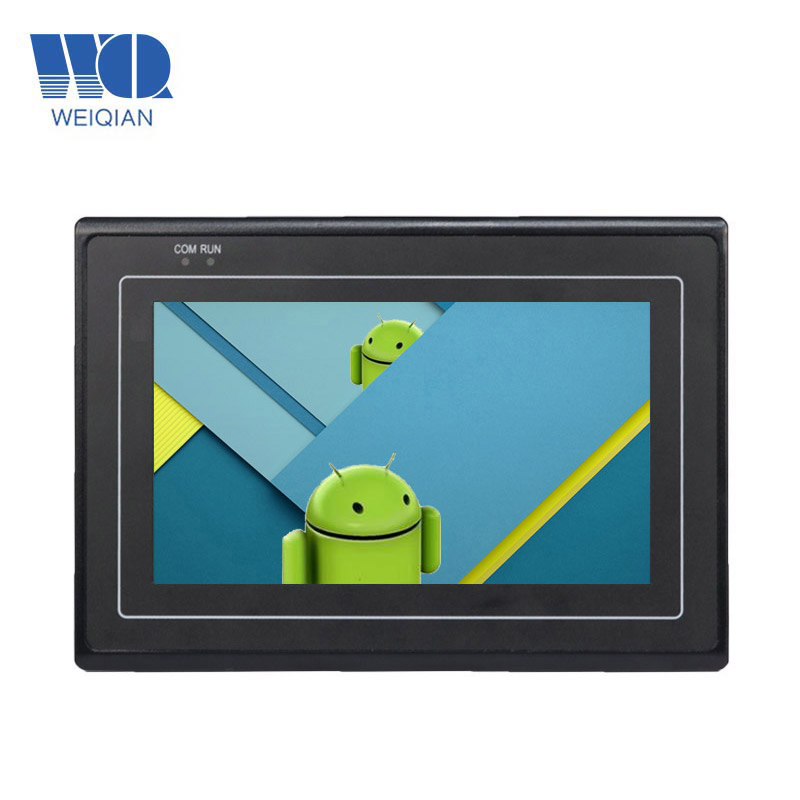

 Display screen

 Size:7 inch

Resolution:800×480

 Wide-temperature type,64K colors or 260K   colors

 LED backlight:lifetime > 25000 hours
Touch screen

4-wire resistance   touch screen(driver inside)

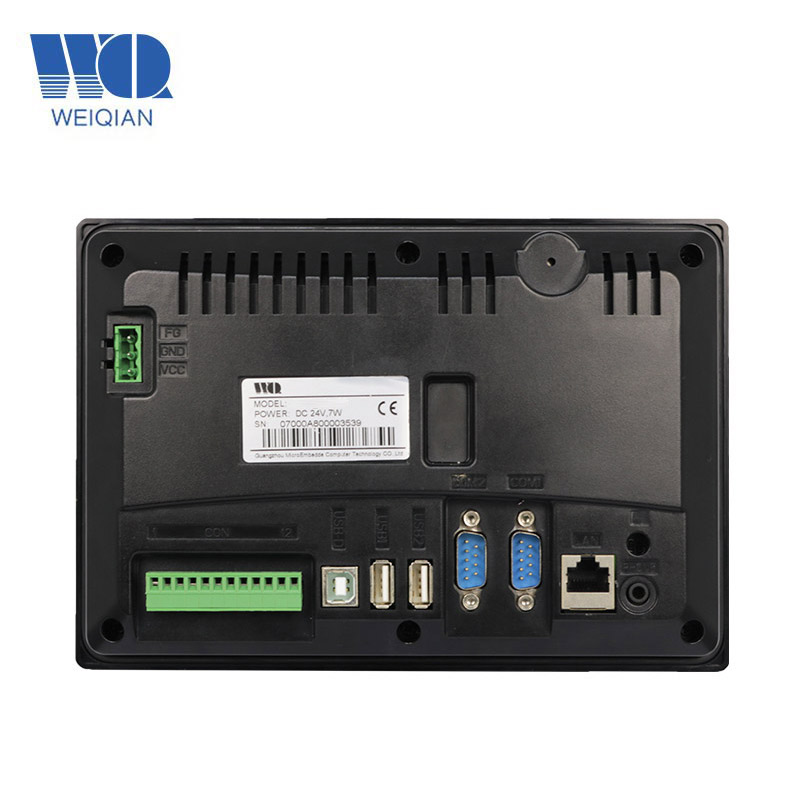

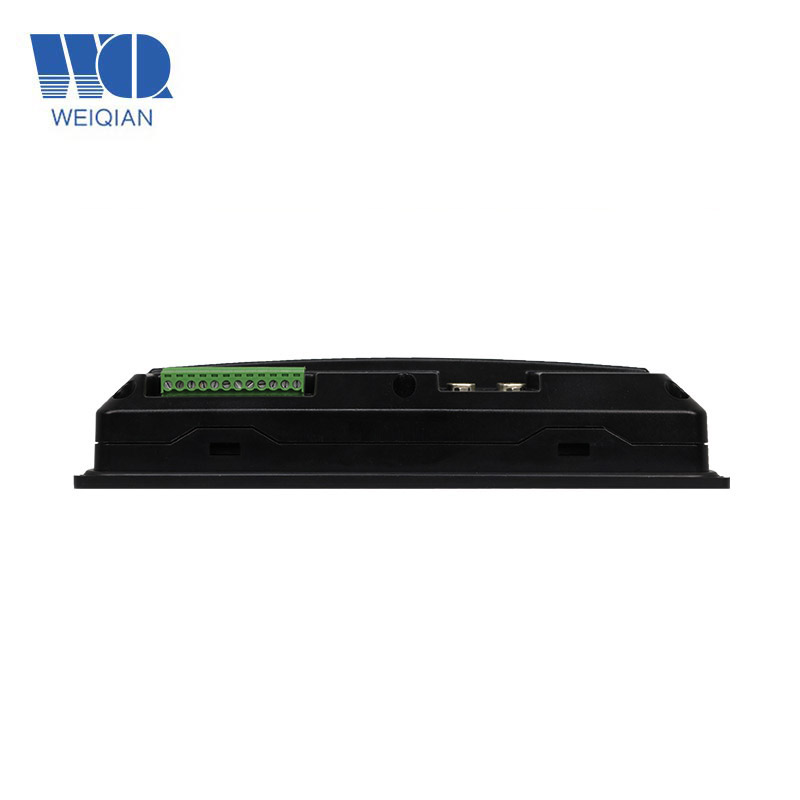

 Hardware interface

4 channel isolated 3-wire RS-232   serial port(COM1,COM2,COM3,COM4),2 channel(COM1,COM2)multiplex as RS-485 bus.

1 channel   isolated CAN bus.(optional)

1   channel WIFI module inside.(optional)

1 channel USB device   interface,support ActiveSync connect to PC to exchange data and debug   application.

2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

1 channel 10/100M Ethernet interface.

1 channel SD/MMC slot.

 1 channel 3.5mm audio output interface.

1 channel DC12V~24V,industrial power solution,higher   reliability.

OS    Windows CE 6.0 R3

Defend   degree  IP65(front panel)
Working environment

  power:12V DC(12V as recommendation,the range is 12V~24V),600mA

working temperature:-10~60ºC

storage temperature:-20~80ºC

working humidity:10~90%RH
Size
shell structure:plastic

 panel size:206.00 x 142.00 (mm)

trepanning size:196.00 x 132 .00 (mm)
Application area

 industrial control,detection device,instruments and   meters,security monitoring,medical apparatus   and instruments, intelligent terminals embedded high-end application.

Support CAN bus network deployment.
Software support

 Flash power-down   protection function.

 IDE: Visual Studio 2005/2008.net(.net 2.0 Compact),Labview   development.

Support QT4.8 GUI

Easy change the user-defined   splash screen.

Support display screen   rotation (degree: 0/90/180/270)
