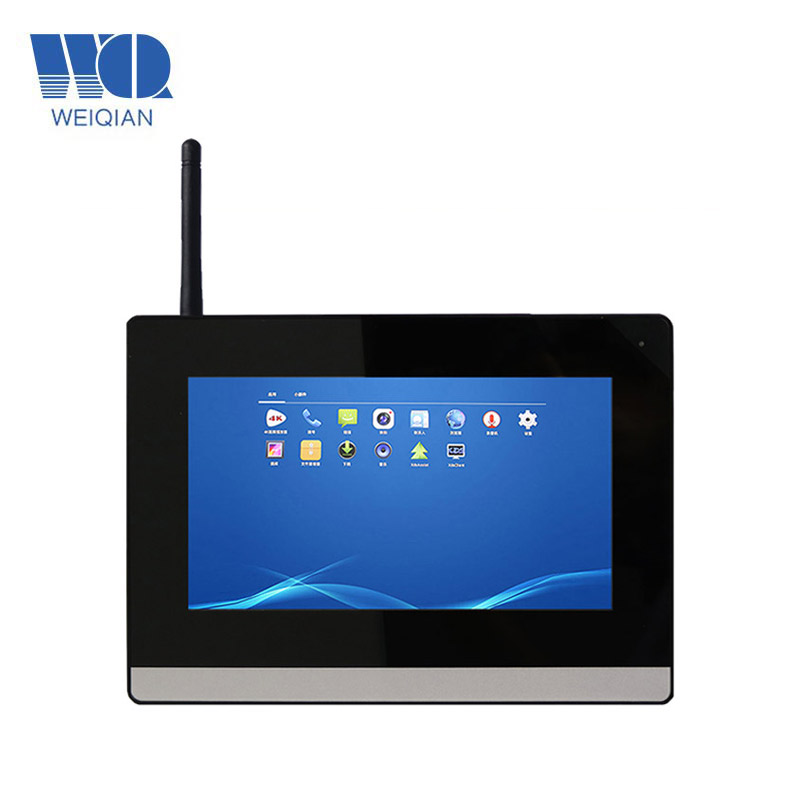

7 inch Android industrial computer Industrial monitor touch screen displays

Keywords :

Android industrial computer / Industrial monitor touch screen displays / touch screen industrial computer


  • Hits : 88
  • Company : Guangzhou Weiqian computer technology co., LTD.
  • Telephone : bella@wqlcd.com
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Multi- industrial communication interface RS-232, RS-485
  • Support CAN bus to facilitate customers to build fieldbus network
  • adapting to various harsh environments
  • Easy for secondary development
  • Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C#

Product Details

Product   model    WAR-070C-SS10

Basic   parameters


 CPU: Cortex-A9 architecture,4   core, frequency 1.0GHZ

Memory: 1GB DDR3

 Flash:8GB EMMC

Display   screen

 size:7 inch

 resolution:1024x600

fargong-tempreature,16,000K colors or 24-bit true color

LED backlight:liftetime > 25000 hour

Touch   screen

Capacitive touch screen with 5 point   multi-touch

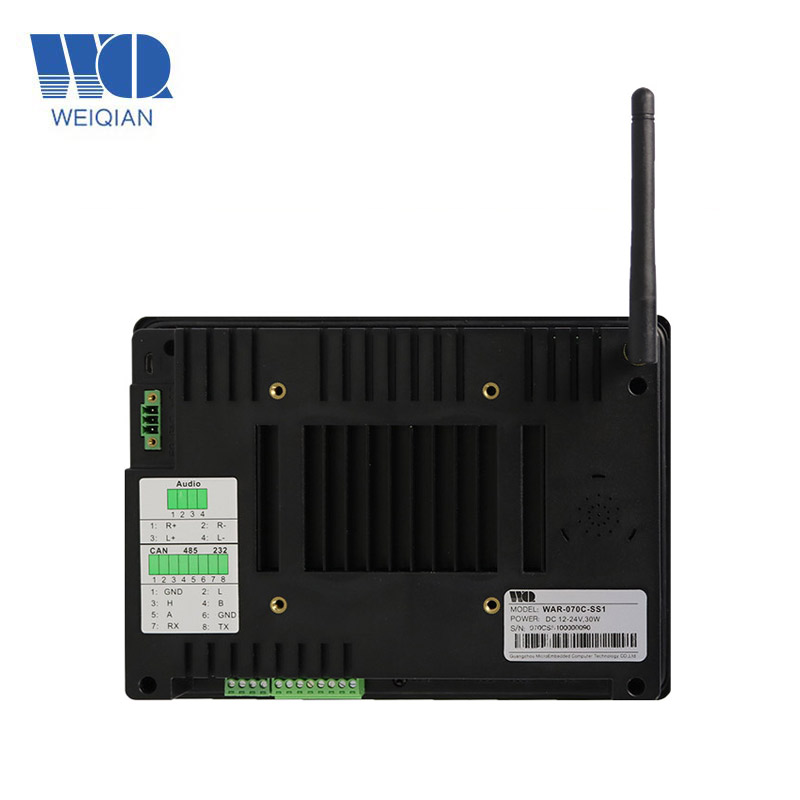

Hareware   interface

1 channel DB9(COM1)

 1 channel 3-wire RS-232 uart(COM2)

1 channel RS-485(COM3)

 1 channel isolating CAN bus(optional)

 1 channel external earial

 1 channel USB Device   interface,support ADB connect to PC to exchange data and debug application.

2 channel USB Host interface,   support usual usb deivices, such as mouse,keyboard, U disk and so on.

 1 channel 10/100 ethernet.

1 channel TF slot, to support   mini SD card or TF card.

 1 channel audio output   interface.

 1 channel speaker with dual   tracks.

1 channel slot for sim card   to support 4G.

DC12V~24V power input.

l4G/wifi/bluetooth module is built-in for option.

OS  Android 4.4.2

Defend   degree

IP65(frontpanel)

Working   environment

 power:DC12V ~ 24V(24V as recommendation),600mA

 working temperature:-10~60℃

 storage temperature:-20~85℃

humidity:10~90%RH

size

  shell structure:plastics

panel size:206.00×142.00(mm)

 trepanning size:195.6×131.6(mm)

Application   Area

industrial control,detection device,instruments and   meters,security monitoring,medical apparatus   and instruments, intelligent terminal and so on.

  Support canbus network   deployment.

software   support

IDE supported:Eclipse+ADT、Android Studio、QT Creator、Visual Studio 2015/2017

Development language: JAVA/C/C++/C#   and so on.

Easy change the user-defined   splash screen.
