Product   model  WAR-070C-SSR0

Basic   parameters

CPU:Quad-core Cortex-A9 Architecture,frequency 1.4GHz

Memory:1GB DDR3

Flash:8GB NandFlash

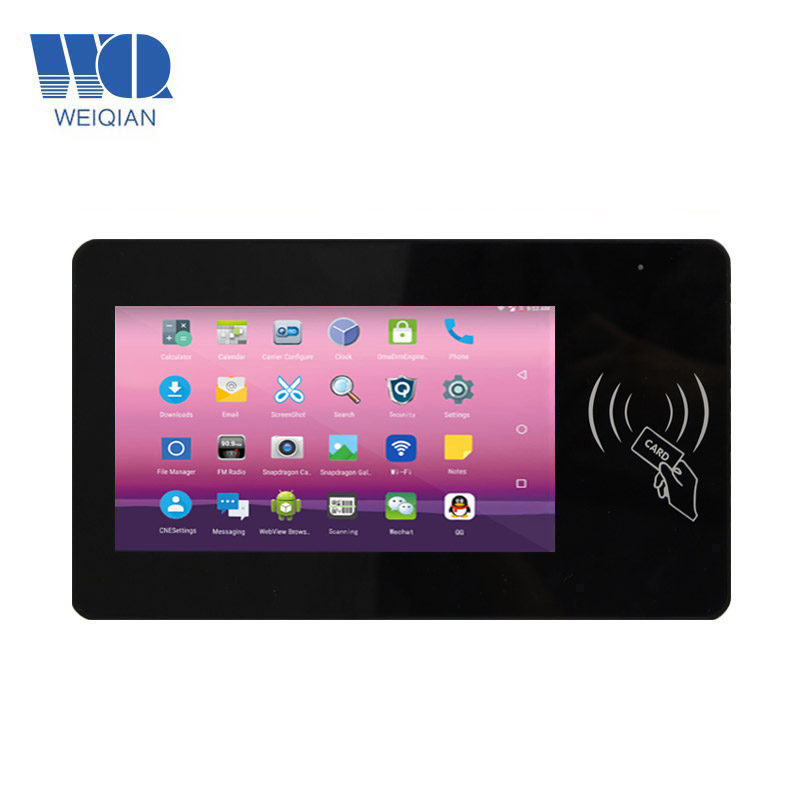

Display   screen

Size:7 inch

Resolution:1024x600

Wide-temperature type,16000k colors or 24 true colors

LED backlight:lifetime > 25000 hours

Touch   screen

Capacitance/Resistance touch screen

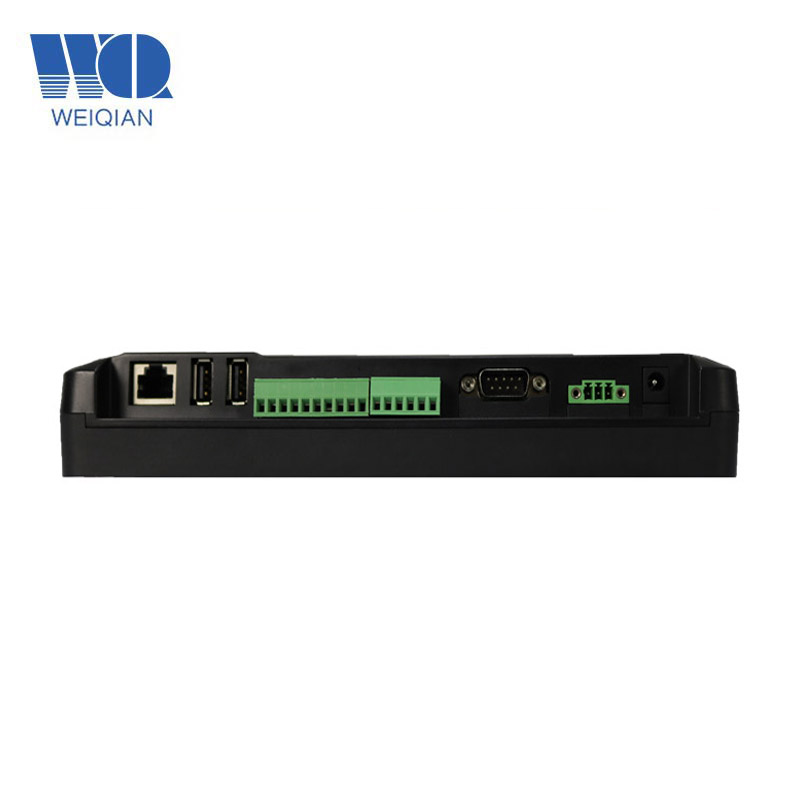

Hardware   interface

1 channel DB9 interface(COM1).

1 channel 3-wire RS-232 serial port(COM2).

1 channel RS-485 interface(COM3).

4 channel IO input interface,3   channel IO output interface.

1 channel USB Device interface,support ADB connect to PC to exchange date and debug   application .

2 channel USB Host interface,   support usual USB device such as mouse, keyboard, U disk ,etc.

1 channel external antenna   interface.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot,support TF   card.

1 channel audio output interface .

2 channel built-in speaker   interface.

1 channel 4G SIM card interface .

2 channel DC 12V~24V ,industrial   power solution,higher   reliability.

Built-in 4G ,WIFI ,Bluetooth module (optional) .

OS  Android 4.4.2

Defend   degree

IP65 (front panel)

Working   environment

power:DC 12V-24V (24V   as recommendation)

working temperature:-10~60ºC

storage temperature:-20~85ºC

working humidity:10~90%RH

Size

shell structure:plastic

panel size:206.00×142.00 (mm)

trepanning size:195.6×131.6 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software   support

Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

Easy change the user-defined splash   screen.
