Product   model  WAR-101C-SP10/WAR-101R-SP10

Basic   parameters

CPU:Quad-core Cortex®-A9 ,frequency   1.4GHz

Memory:1GB DDR3

Flash:8GB NandFlash

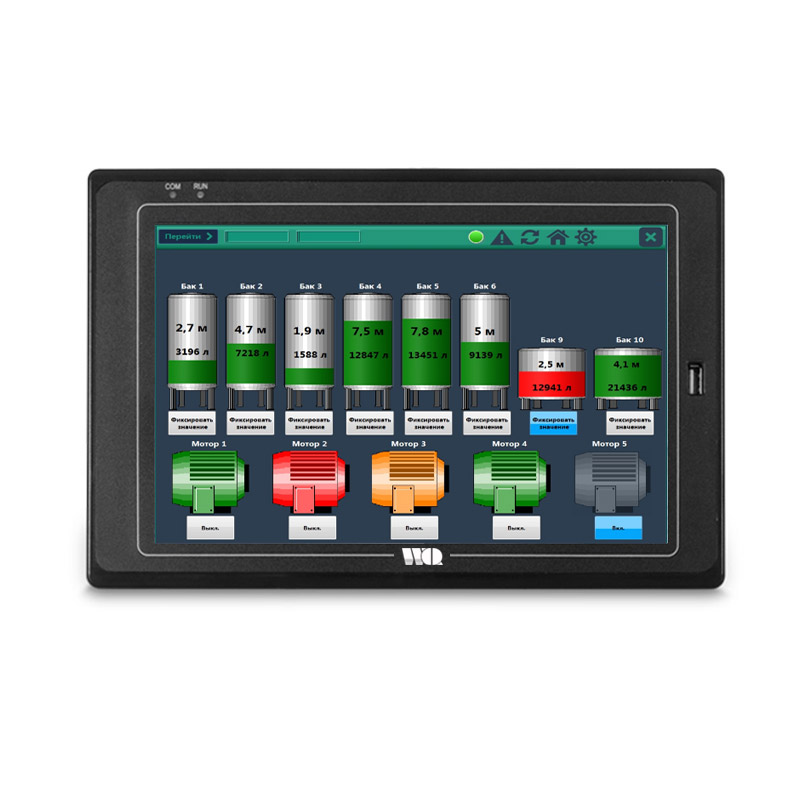

Display   screen

Size:10.1 inch

Resolution:1280×800

Wide-temperature type,16000k colors or 24 true colors

LED backlight:lifetime > 25000 hours

Touch   screen

Capacitance/Resistance touch screen

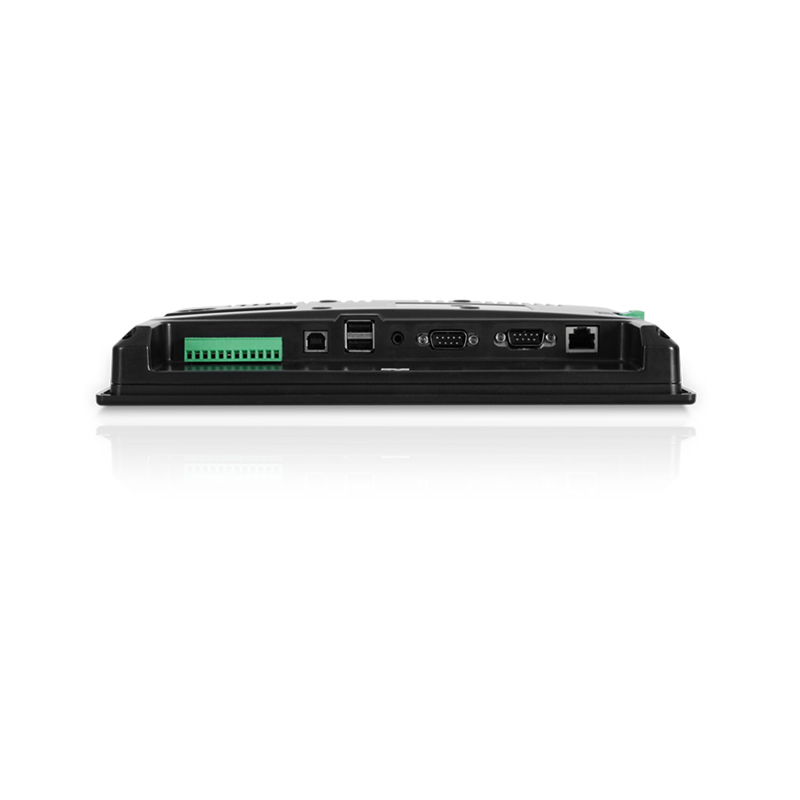

Hardware   interface

4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4).

2 channel RS-485(COM1、COM2)multiplex as RS-232 (COM1、COM2).(Signal   isolated as optional)

1 channel isolated CAN bus.(optional).

1 channel USB device interface,support   ADB connect to PC to exchange date and debug application .

2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot,support   TF/mini SD card.

1 channel 3.5mm audio output   interface.

1 channel WIFI interface.(optional)

1 channel DC 12V~24V,industrial   power solution,higher reliability.

OS  Android 4.4.2

Defend   degree

IP65 (front panel)

Working   environment

power:DC 12V-24V (24V   as recommendation)

working temperature:-10~55℃

storage temperature:-20~80℃

working humidity:10~90%RH

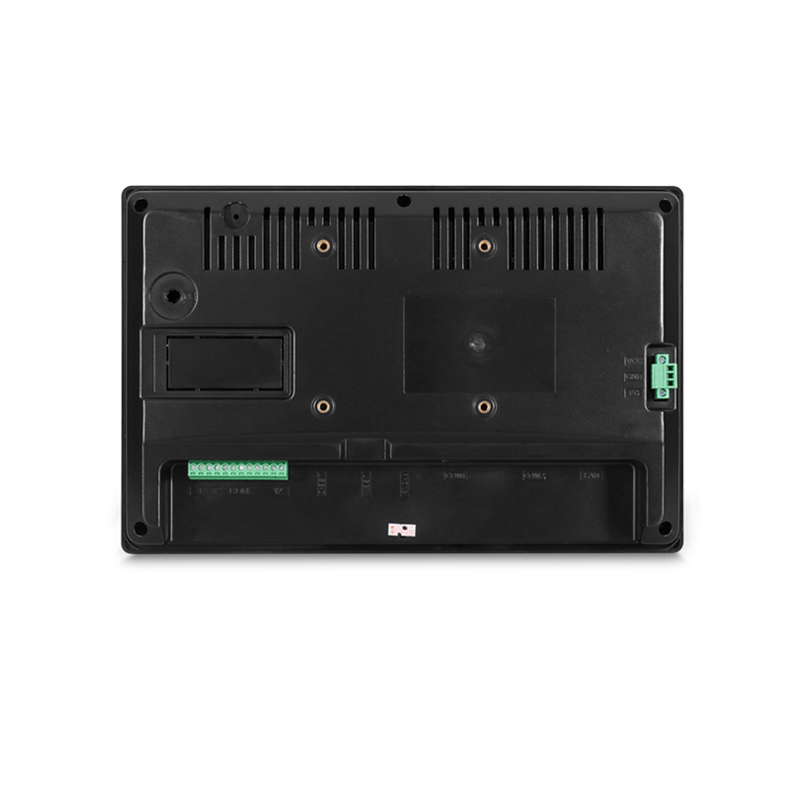

Size

shell structure:plastic

panel size:275.00×181.00 (mm)

trepanning size:266.00×171 .00 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software   support

Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

Easy change the user-defined splash   screen.
