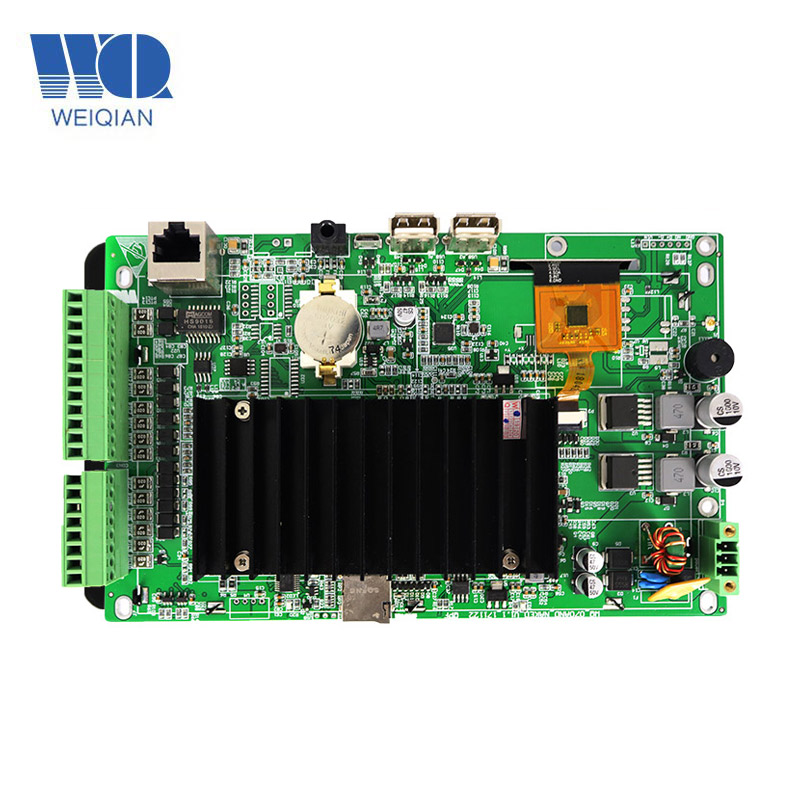

Product model    WAR-070C-SN00

Basic   parameters

CPU:Quad-core Cortex®-A7 architecture,frequency 1.2GHz

Memory:1GB DDR3

EMMC:8GB

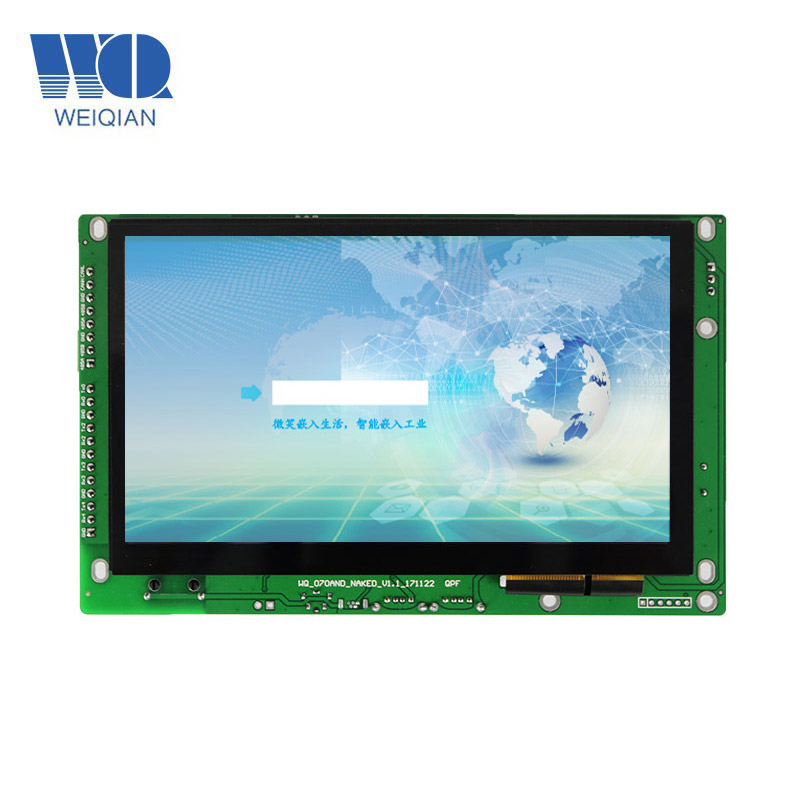

Display   screen   Size:7 inch

Resolution:1024×600

 Wide-temperature type,16000k colors or 24 true colors

LED backlight:lifetime > 25000 hours

Touch   screen

Capacitance touch screen

Hardware interface

4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4).

1 channel RS-485(COM4)multiplex as RS-232 (COM4) .

1 channel USB device interface, support   ADB connect to PC to exchange data and debug application.

 2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot, support TF /MMC card.

1 channel 3.5mm audio MIC interface.

1 channel 3.5mm audio HPC interface.

1 channel power   amplifier interface (8Ω/3w).

1 channel SIM card interface .

Six buttons: (1x Power, 1x Home, 2x   Volume,1x User , 1x Reset ).

1 channel CAN interface.(optional).

1 channel 4G module & interface   . (optional)

1 channel WIFI module .(optional)

1 channel EDG3.5-3P DC 12V~24V,industrial power solution,higher reliability.

Bluetooth ,GPS .(optional)

OS    Android 5.1

Defend   degree    /

Working   environment

power:DC 12V-24V (24V   as recommendation)

working temperature:-10~60℃

storage temperature:-20~80℃

working humidity:10~90%RH

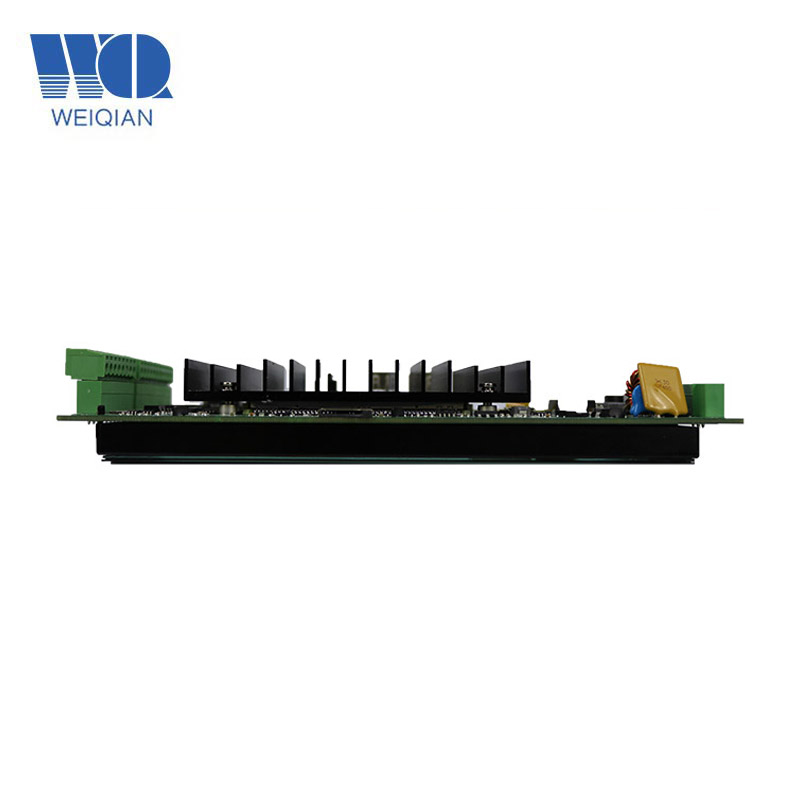

Size    No shell

Size:202x113x20.6 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software support

Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

l  Easy change the user-defined splash screen.
