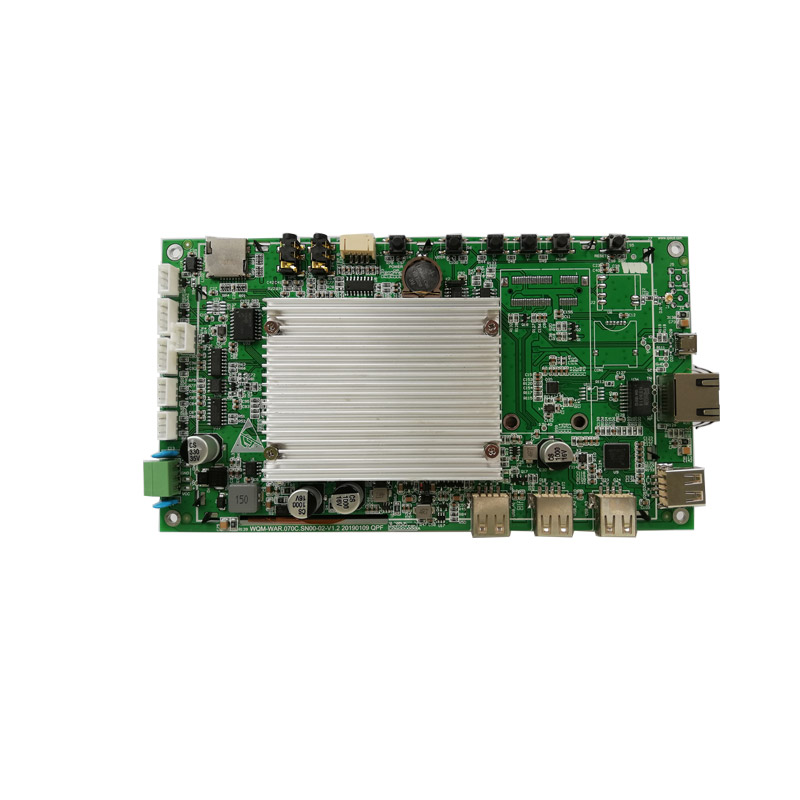

Product model

WAR-101C-SN00

Basic   parameters

CPU :Quad-core Cortex-A7 architecture ,frequency 1.2GHz

Memory:1GB DDR3

EMMC:8GB

Display   screen

Size:10.1 inch

Resolution:800×1280

Wide-temperature type,16000k colors or 24 true colors

LED backlight:lifetime > 25000 hour

Touch   screen

Capacitance touch screen

Hardware   interface

4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4)

1 channel RS-485(COM4)is a multiplexing as COM4 of RS-232.

1 channel USB device interface, support   ADB connect to PC to exchange data and debug application.

4 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot, support   MMC/TF card.

1 channel 3.5mm audio MIC interface.

1 channel 3.5mm audio HPC interface.

1 channel power amplifier   interface (8Ω/3w).

1 channel SIM card interface .

Six buttons: (1x Power, 1x Home, 2x   Volume,1x User , 1x Reset ).

1 channel IO input interface.

1 channel CAN interface.(optional).

1 channel 4G module & interface   . (optional)

1 channel WIFI module .(optional)

1 channel EDG3.5-3P DC 12V~24V,industrial power solution,higher reliability.

Bluetooth ,GPS .(optional)

OS

Android 5.1

Defend   degree

/

Working   Environment

power:DC 12V-24V (24V   as recommendation)

working temperature:-10~60ºC

storage temperature:-20~80ºC

working humidity:10~90%RH

Size

No shell

Size:202x113x20.6 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Hardware   support

Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

Easy change the user-defined splash   screen.
