Product Details

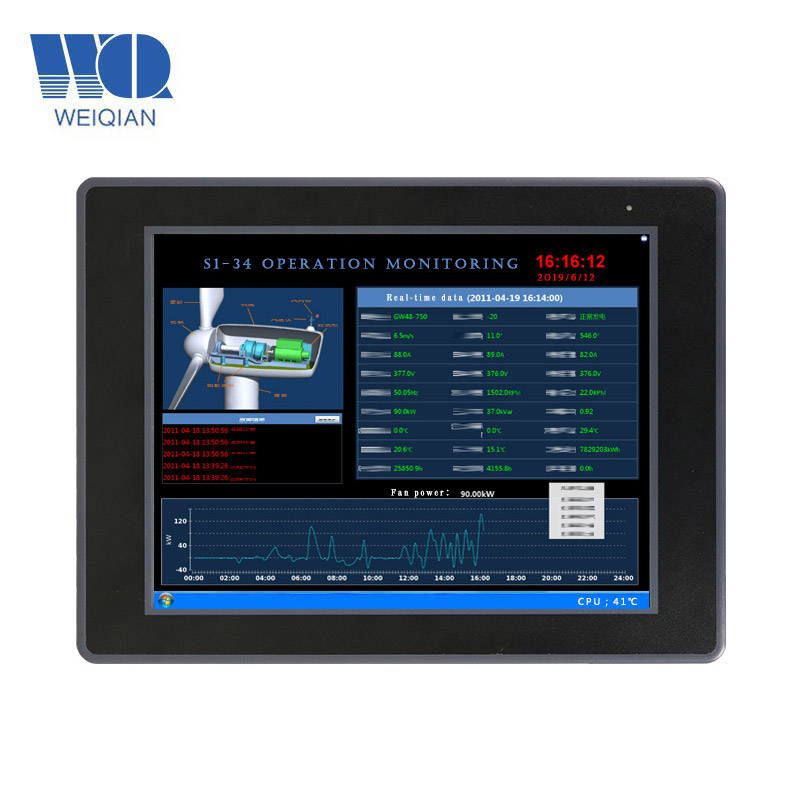

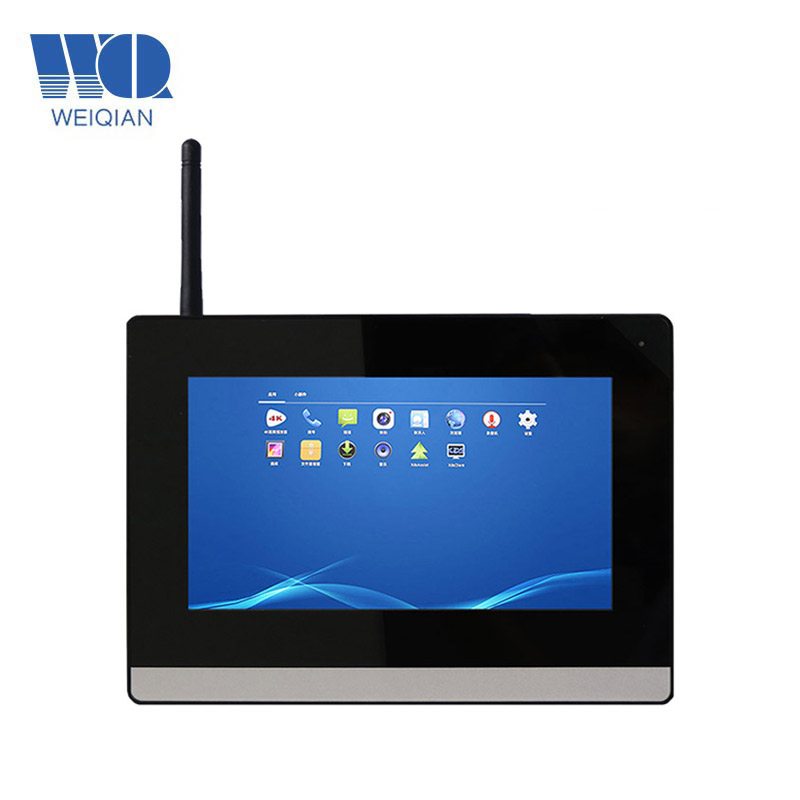

7/10.1/10.4/12/15 Inch Industrial LCD Touchscreen Display,TFT HMI Touch Screen Panel

Product   model

WAR-070C-SS10

Basic   parameters

 CPU: Cortex-A9 Architecture, Quad-Core, frequency 1.0GHz

Memory: 1GB DDR3

 Flash:8GB EMMC

Display   screen

 size:7 inch

 Resolution:1024x600

Wide-tempreature type,16,000K colors or 24-bit true color

LED backlight:liftetime > 25000 hour

Touch   screen

Capacitive touch screen with 5 point Multi-touch

Hareware   interface

1 channel DB9(COM1)

 1 channel 3-wire RS-232 uart(COM2)

1 channel RS-485(COM3)

 1 channel isolating CAN bus (optional)

 1 channel external earial

 1 channel USB Device   interface,support ADB connect to PC to exchange data and debug application.

2 channel USB Host interface,   support usual usb deivices, such as mouse,keyboard, U disk and so on.

 1 channel 100 ethernet.

1 channel TF slot, support  mini SD card or TF card.

 1 channel audio output interface.

 1 channel speaker with dual tracks.

1 channel slot for sim card to support 4G.

DC12V~24V power input.

4G /wifi / bluetooth module ( optional ).

OS

Android 4.4.2

Defend   degree

IP65 (frontpanel)

Working   environment

 power:DC12V ~ 24V(24V as recommendation),600mA

 working temperature:-10~60ºC

 storage temperature:-20~85ºC

humidity:10~90%RH

size

shell structure:plastic

panel size:206.00×142.00(mm)

 trepanning size:195.6×131.6(mm)

Application   area

1. industrial control, detection device, instruments and  meters, security monitoring, medical apparatus  and instruments, intelligent terminal and so on.

2. Support CAN Bus network deployment.

7/10.1/10.4/12/15 Inch Industrial LCD Touchscreen Display,TFT HMI Touch Screen Panel software support

IDE supported:Eclipse+ADT,Android Studio,QT Creator,Visual Studio 2015/2017

Development language: JAVA/C/C++/C#   and so on.

Easy change the user-defined   splash screen.
