Five Advantages Of Products

  • High stability,7x24 hours no shutdown no outage.
  • Front panel IP65 , designed by industrial standard
  • Support CAN bus to facilitate customers to build fieldbus network
  • adapting to various harsh environments
  • WQ brand factory direct sales.

Product Details

All-in-One Industrial Touch Panel PCS Product Details

 Product   model   WLT-104R

Basic   parameters

【High   Configuration】:

CPU:Cortex A8 Architecture,frequency 1.0GHZ

  Memory:512MB DDRⅡ,Flash:256MB NandFlash

【Low Configuration】:

CPU:SAMSUNG  S3C2416,ARM9 Architecture,frequency 400MHZ

Memory:64MB DDRⅡ

Flash:128MB NandFlash

 Display screen


Size:10.4 inch


Resolution:800×600

Wide-temperature type,   64K colors or 260K colors

LED backlight:lifetime>25000 hours

Touch   screen    4-wire resistance touch screen(driver inside)

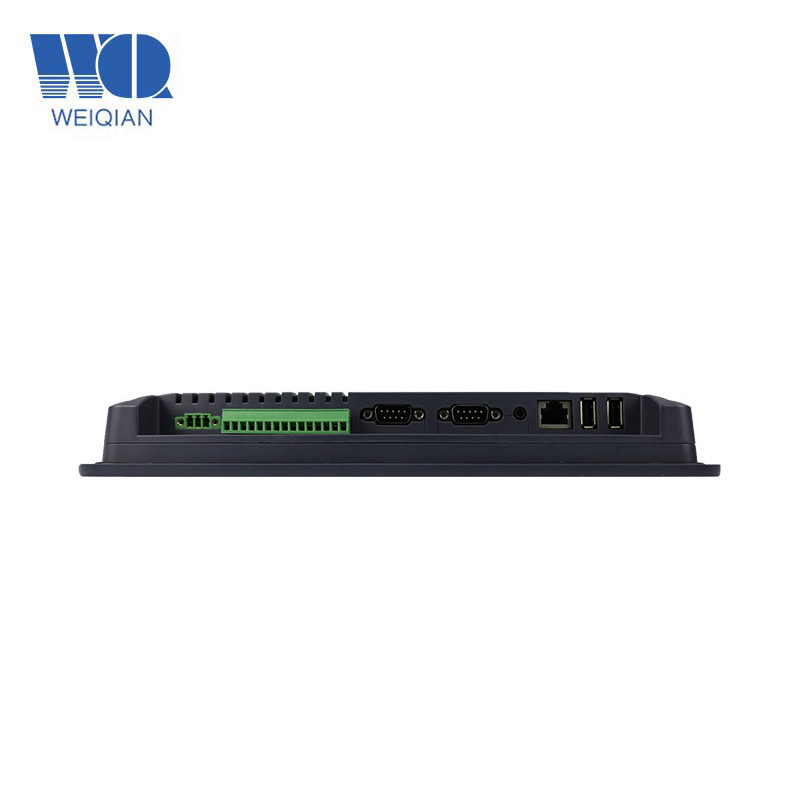

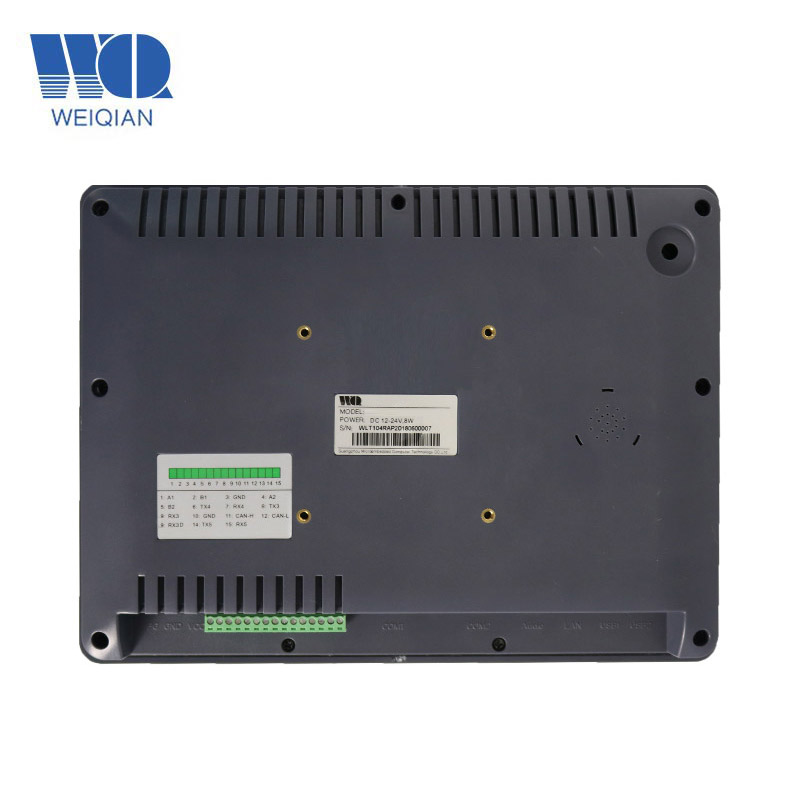

All-in-One Industrial Touch Panel PCS  Hardware   interface

4 channel isolated 3-wire RS-232 serial   port(COM1,COM2,COM3,COM4),2 channel(COM1、COM2)multiplex as RS-485 bus.

1 channel CAN bus.(optional)(driver inside)

1 channel USB Device interface,support ActiveSync connect to PC to   exchange data and debug application.

1 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

 1 channel 100M Ethernet interface.

1 channel WIFI module   inside.(optional)

 1 channel SD/MMC slot.

1 channel 3.5mm audio output   interface.

1 channel DC12V~24V,industrial power solution,higher reliability.

OS

【High   Configuration】:Windows   CE 6.0 R3

【Low   Configuration】:Windows   CE .NET 5.0

Defend   degree

IP65 (front panel)

Working   Environment

power:12V DC(12V   as recommendation,the   range is 12V~24V),600mA

 working Temperature:-10~60°C

Working humidity:10~90%RH

Size

Structure:plastic

Panel size:287.30×218.50(mm)

Trepanning size:267.40×198.60 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

 Support CAN bus network deployment.

All-in-One Industrial Touch Panel PCS Software   support

Flash power-down protection function.

IDE: Visual Studio   2005/2008.net(.net 2.0 Compact)、EVC++、Labview development.

Easy change the user-defined splash   screen.

Support display screen rotation (degree:   0/90/180/270)
