Product Details

 Embedded Industrial PC,4.3 Inch Linux Embedded Tablet PC   Product model  WLX-043R-AP10

Basic   parameters

CPU: Cortex -A8 architecture,frequency 1.0GHZ

Memory: 512MB DDR3

 Flash:256MB NandFlash

Display   screen

Size:4.3 inch

Resolution:480×272

Wide-temperature type,64K colors or 260K colors

 LED backlight:lifetime > 25000 hours

Touch   screen

4-wire resistance touch screen(driver inside)

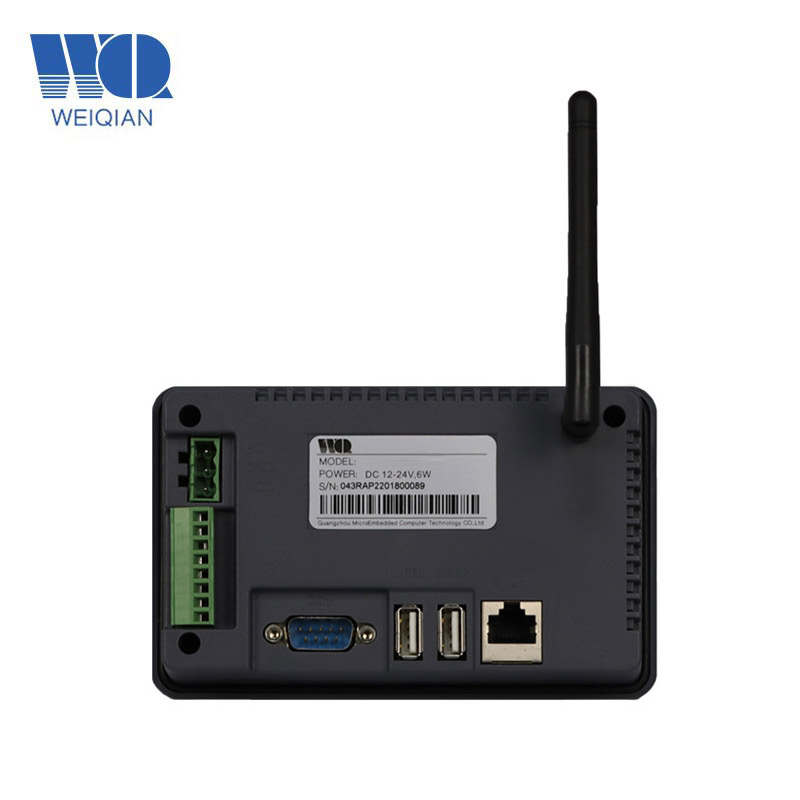

Hardware   interface

1 channel RS-232-DB9 interface(COM1)

1 channel 3-wire RS-232 serial port(COM3)

 2 channel RS-485 interface(COM2、COM4),COM2   is a multiplexing of CAN.

1 channel CAN bus. (driver inside)(optional).

1 channel USB Device interface.

 2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot, support TF   card.

1 channel WIFI module inside.(optional)

1 channel DC12V~24V, industrial   power solution,higher   reliability.

OS  Linux

Defend   degree

IP65 (front panel)

Working   Environment

power:DC 12V-24V    (6W)

working Temperature:-10~60℃

storage temperature:-20~85℃

working humidity:10~90%RH

Size

shell structure: plastic

panel size:139.6×86.6 (mm)

 trepanning size:131.2×79.2 (mm)

Embedded Industrial PC,4.3 Inch Linux Embedded Tablet PC   Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software   support

 Flash power-down   protection function.

QT Creator(QT C++)development, easy to use other software flexibly.

Easy change the user-defined splash   screen.

Support display screen rotation (degree:   0/90/180/270)
