1.parameters

Product model

WAR-150C(R)-SM10

Basic parameters

● CPU:Quad-core Cortex®-A9  ; Frequency 1.4GHz

● Memory:1GB DDR3

● Flash:8GB

Display screen

● Size:15 inch

● Resolution:1024×768

● Wide-temperature type,16000k colors or 24 true colors

● LED backlight:lifetime > 25000 hours

Touch screen

Capacitance/Resistance touch screen

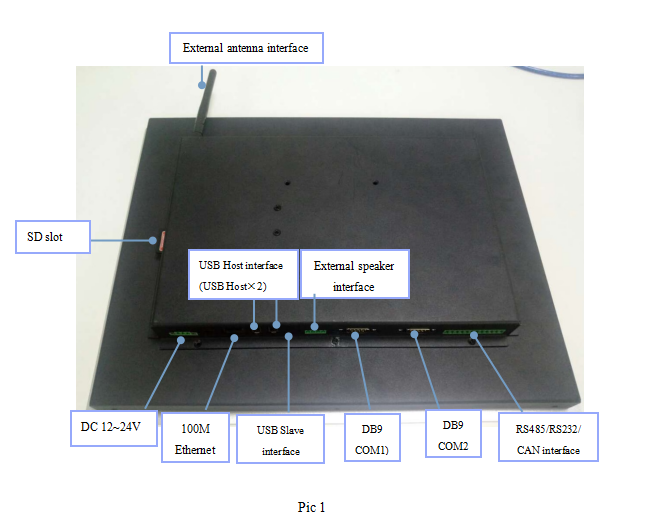

Hardware interface

● 2 channel DB9 interface(COM1,COM2).

● 2 channel 3-wire RS-232 serial port(COM3, COM4).

● 2 channel RS-485 interface(COM1,COM2 ), multiplex as RS-232 (COM1,COM2 ).

● 1 channel CAN bus.(optional)

● 4 channel IO port (DO1&DI1, DO2&DI2, DO3&DI3, DO4&DI4), multiplex as RS-232(COM3,COM4) ,RS-485(COM1,COM2) , CAN .

● 1 channel USB Device port, support ADB connect to PC to exchange data and debug application.

● 2 channel USB Host port, support usual USB device such as mouse, keyboard, U disk ,etc.

● 1 channel 100M Ethernet interface.

● 1 channel SD/MMC slot,support SD /MMC card .

● 1 channel external Speaker interface (4Ω3w).

● 1 channel external antenna. (optional )

● 2 channel DC12V~24V,industrial power solution,higher reliability.

● Built-in WIFI, Bluetooth module.  (optional )

Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.

OS

Android 4.4.2/Android 5.1

Defend degree

IP65 (front panel)

Working Environment

● power:12V-24V DC (3A)

● working Temperature:-10~60℃

● storage temperature:  -20~80℃

● working humidity:10~90%RH

Size

● shell structure:Metal

● Panel size:378.5x302.5(mm)

● Trepanning size:360x284 (mm)

Application area

● industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

● Support CAN bus network deployment.

Software support

● Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

● Easy change the user-defined splash screen.

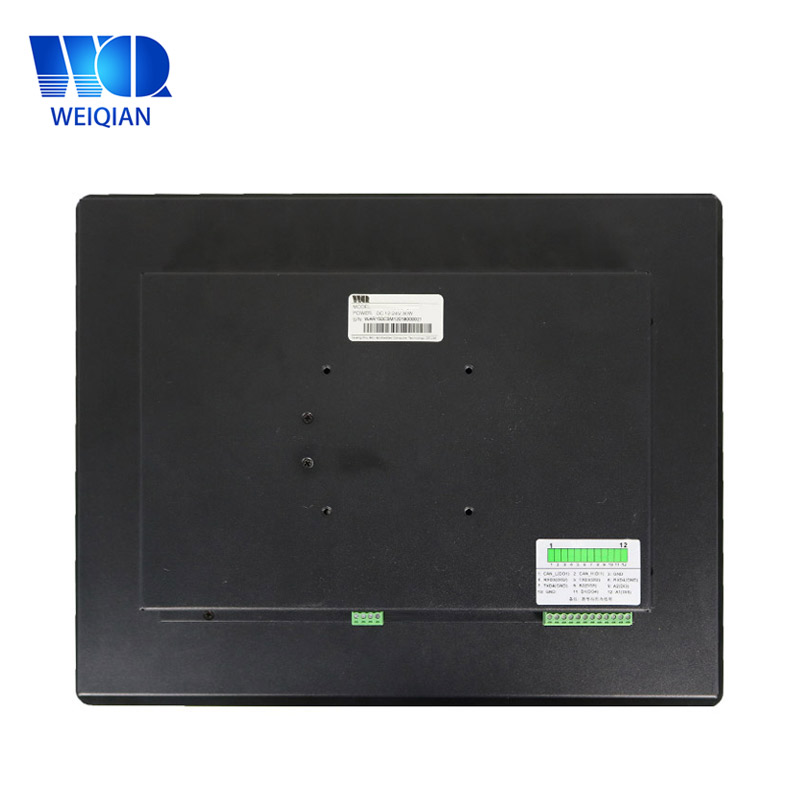

 2.Interface definition

1. COM1-RS-485A

2. COM1-RS-485B

3. GND

4. COM2-RS-485A

5. COM2-RS-485B

6. COM4-RS-232-TX

7. COM4- RS-232-RX

8. COM3-RS-232-TX

9. COM3-RS-232-RX

10. GND

11. CANH

12. CANL

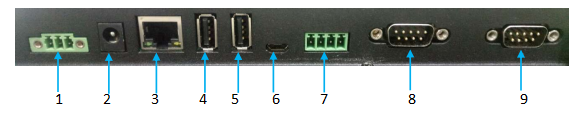

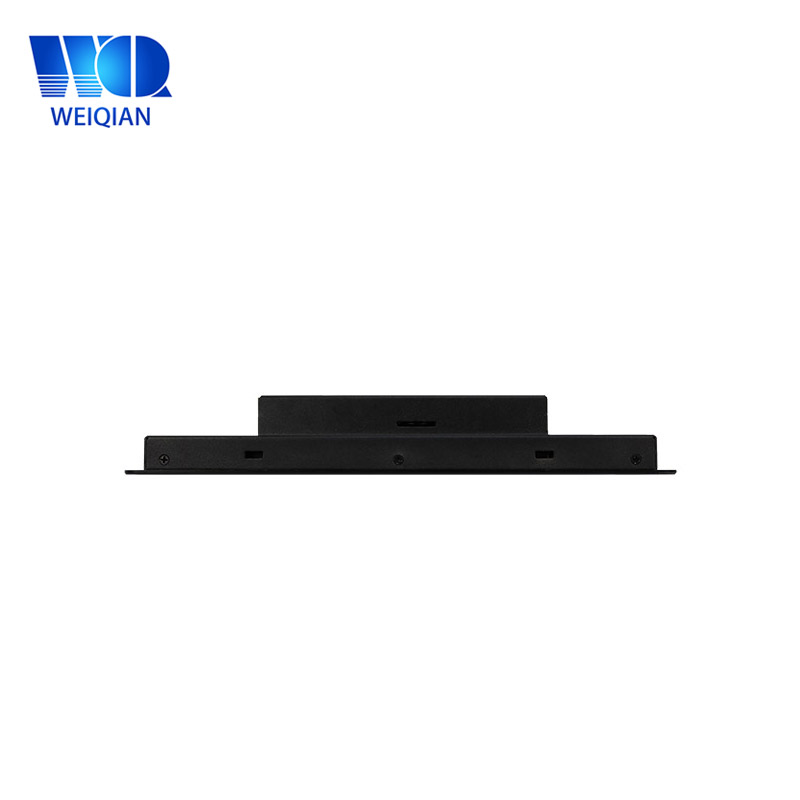

1. 3P(12-24V)Terminal power input interface

2.  12-24V power adapter input interface

3.  100M Ethernet interface

4.  USB Host interface (USB host)

5.  USB Host interface (USB Host)

6.  USB slave interface (USB Device)

7.  External speaker interface

8.   RS-232  COM1 interface (isolated)

9.  RS-232  COM2  interface (isolated)

2.1 RS-232 interface

4 channel serial port,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4.

2.2 RS-485 interface

The corresponding port in Android system is COM1,COM2, and COM1/COM2, multiplexing as  RS-232 interface (COM1/COM2 ).

2.3 CAN Bus interface

The function of Can-bus interface is optional . Also, without terminal resistance inside ,pls specify once in need.

2.4 Power interface

2.5 External Speaker interface

1.  Right channel  OUTL-

2.  Right channel  OUTL+

3.  Left channel  OUTR-

4.  Left channel  OUTR+

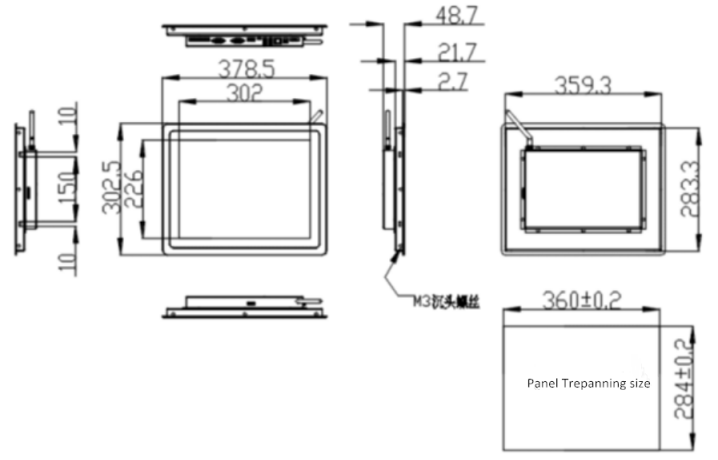

3. Exterior size

Exterior size:378.5x302.5x48.7  (mm)          Trepanning size:360x284  (mm)
