Five Advantages Of Products

High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
High reliability, no handling errors are allowed, and strict tests are passed
With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
Communication interface suitable for industrial use, easy to expand
Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance

Product Details

1.parameters

Product model

WAR-101C-SN00

Basic parameters

● CPU :Quad-core Cortex®-A7 architecture ; Frequency 1.2GHz

● Memory:1GB DDR3

● EMMC:8GB

Display screen

● Size:10.1 inch

● Resolution:800×1280

● Wide-temperature type,16000k colors or 24 true colors

● LED backlight:lifetime > 25000 hour

Touch screen

Capacitance touch screen (Hardness: 1H)

Hardware interface

● 4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4)(2.54mm interface)

● 1 channel RS-485(COM4)interface, multiplexing as RS-232 ( COM4 ) (2.54mm interface)

● 1 channel USB device interface, support ADB connect to PC to exchange data and debug application.

● 4 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

● 1 channel 100M Ethernet interface.

● 1 channel SD/MMC slot, support MMC/TF card.

● 1 channel 3.5mm audio MIC interface.

● 1 channel 3.5mm audio HPC interface.

● 1 channel power amplifier interface (8Ω/3w).

● 1 channel SIM card interface .

● Six buttons: (1x Power, 1x Home, 2x Volume,1x User , 1x Reset ).

● 3 channel IO input interface.(optional)

● 1 channel CAN interface.(optional)

● 1 channel 4G module . (optional)

● 1 channel WIFI module .(optional)

● 1 channel EDG3.5-3P or Round hole DC 5.5*2.1mm DC12V~24V. Power Input interface.

Android 4.4.2 / Android 6.0

Defend degree

Working Environment

● power:DC 12V-24V (24V as recommendation)

● working temperature:0~50℃

● storage temperature:-10~70℃

● working humidity:10~90%RH

Size

● No shell

● Size:249x154x23.5(mm)

Application area

● industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

● Support CAN bus network deployment.

Software support

● Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

● Easy change the user-defined splash screen.

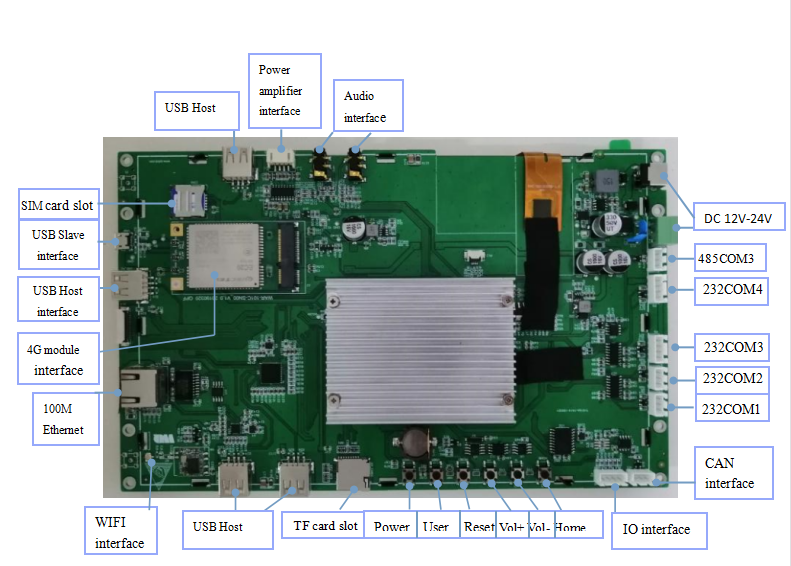

2. Interface definiton

2.1 RS-232 interface

4 channel serial port,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4.

2.2 RS-485 interface

The corresponding port in Android system is COM4, and RS-485 (COM4 ) is a multiplexing of RS-232 (COM4).

2.3 CAN Bus interface

The function of Can-bus interface is optional.

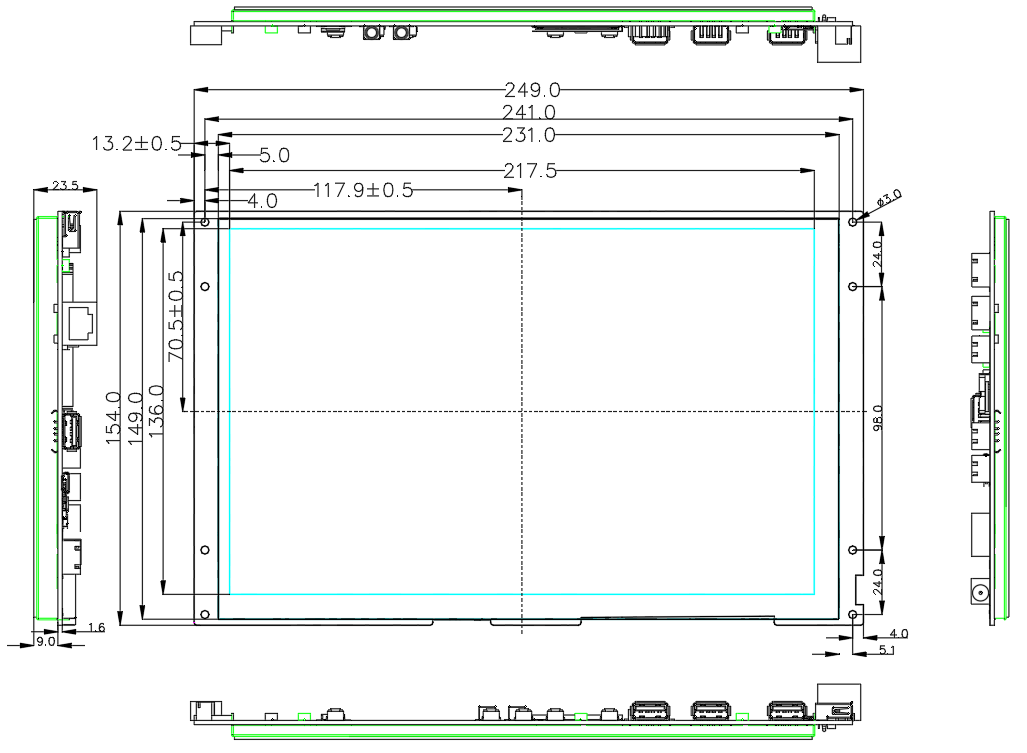

3. Exterior size

Panel size :249x154x23.5(mm); Trepanning size : 232x150 (mm)
