15.6 inch Android Industrial Panel PC industrial grade computer industrial sbc industrial tablet computer
Five Advantages Of Products
- High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
- High reliability, no handling errors are allowed, and strict tests are passed
- With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
- Communication interface suitable for industrial use, easy to expand
- Simple and easy secondary development, multi-platform, multi-language support, providing routines
Product Details
1.parameters
Product model
WAR-156C-SM20
Basic parameters
l CPU:Octa-core Cortex®-A53 architecture ; Frequency 1.4GHz
l Memory:2GB DDR3
l Flash:8GB NandFlash
Display screen
l Size:15.6 inch
l Resolution:1920×1080
l Wide-temperature type,262k colors or 18-bit true colors
l LED backlight:lifetime > 25000 hour
Touch screen
Capacitance touch screen

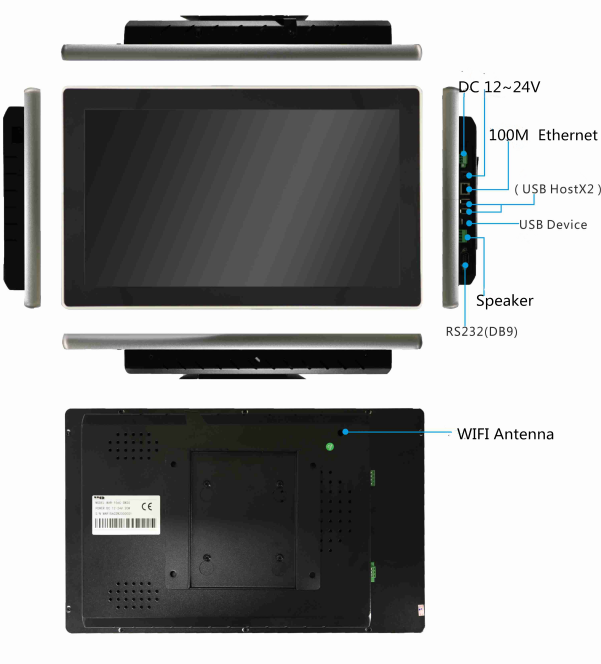

Hardware interface
l 1channel RS-232 (DB9) serial port(COM1).
l 1 channel USB device interface, support ADB connect to PC to exchange data and debug application.
l 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.
l 1 channel 100M Ethernet interface.
l 1 channel 3-wire 2EDG power input interface (DC12V~24V) .
l 1 channel external Speaker interface (8Ω1.7w or 4Ω3w) (optional).
l 1 channel power (DC12V~24V) .
l 1 channel external WIFI interface (optional).
l Built-in WIFI , Bluetooth module (optional).
Attention
When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS
Android 5.1
Defend degree
IP65 (front panel)
Working Environment
l power:DC 12V-24V (24V as recommendation)
l working Temperature:0~50℃
l storage temperature:0~60℃
l working humidity:10~90%RH
Size
l shell structure: Metal
l panel size:398.35×248.35(mm)
l Mounting Hole Size :75*75 (mm)
Application area
l industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.
l Support CAN bus network deployment.
Software support
l Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .
l Easy change the user-defined splash screen.
2. Interface definition
2.1 RS-232 interface
1 channel DB9 serial port,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1.

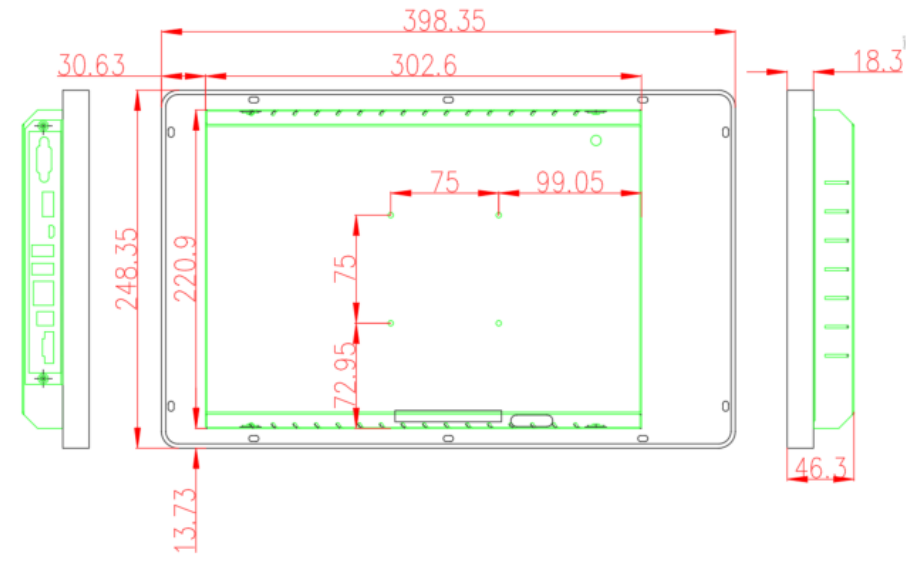

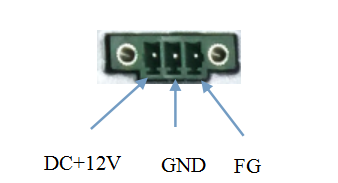

2.2 Power interface 3 .Exterior size
Exterior size:398.35×248.35(mm) Trepanning size:75×75(mm).
3 .Exterior size
Exterior size:398.35×248.35(mm) Trepanning size:75×75(mm).
