15 Inch Linux industrial panel computer

Keywords :

15 Inch Linux industrial panel computer(High configuration) / Linux Industrial PC 15 inch / 15 inch Linux industrial panel computer(metal)


  • Hits : 505
  • Company : Guangzhou Weiqian computer technology co., LTD.
  • Telephone : bella@wqlcd.com
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
  • High reliability, no handling errors are allowed, and strict tests are passed
  • With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
  • Communication interface suitable for industrial use, easy to expand
  • Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance

Product Details

1.Parameters

Product model

WLX-104R-AP20

Basic parameters

● CPU: Cortex® -A8 architecture ;  Frequency 1.0GHZ

● Memory: 512MB DDR3

● Flash   256MB NandFlash

Display screen

● Size  10.4 inch

● Resolution  800×600

● Wide-temperature type   64K colors or 260K colors

● LED backlight   lifetime > 25000 hours


Touch screen

4-wire Resistance touch screen

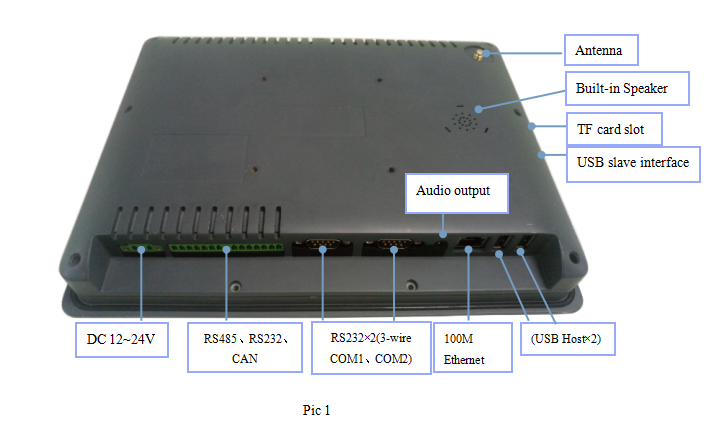

Hardware interface

● 5 channel 3-wire RS-232 serial port ( COM1, COM2, COM3, COM4, COM5), and 2 channel (COM1/COM2) are multiplexing of RS-485 bus, COM5 is a multiplexing of CAN .

● 1 channel CAN bus.  optional.

● 1 channel USB device interface.

● 2 channel USB Host interface   support usual USB device such as Mouse, Keyboard, U disk ,etc.

● 1 channel 100M Ethernet interface.

● 1 channel SD/MMC slot, support TF card.

● 1 channel 3.5mm audio output interface.

● 1 channel built-in Speaker interface. optional.

● 1 channe● WIFI antenna interface. optional.

● DC 12V~24V  isolated industria● power solution  higher reliability.

● Built-in WIFI module . (optional )


Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.


OS

Linux

Defend degree

IP65 (front panel)

Working environment

● power  DC 12V-24V /1A

● working temperature  -10~60℃

● storage temperature  -20~80℃

● working humidity from 10 to 90%RH


Size

● shell structure   plastic

● power  DC 12V-24V   24V as recommendation

● panel size   280.9×212.3    mm

● trepanning size   268.6×200.1    mm


Application area

● industrial control detection device  instruments and meters  security monitoring  medical apparatus and instruments, intelligent terminals embedded high-end application.

● Support CAN bus network deployment.


Software support

● Flash power-down protection function.

● Support Eclipse, QT Creator, Arm linux gcc/g++ compiler, shell programming, STL library, Python2.7 development, support JAVA/C/C++/C# ,etc .

● Easy change the user-defined splash screen.

● Support display screen rotation (degree: 0/90/180/270)


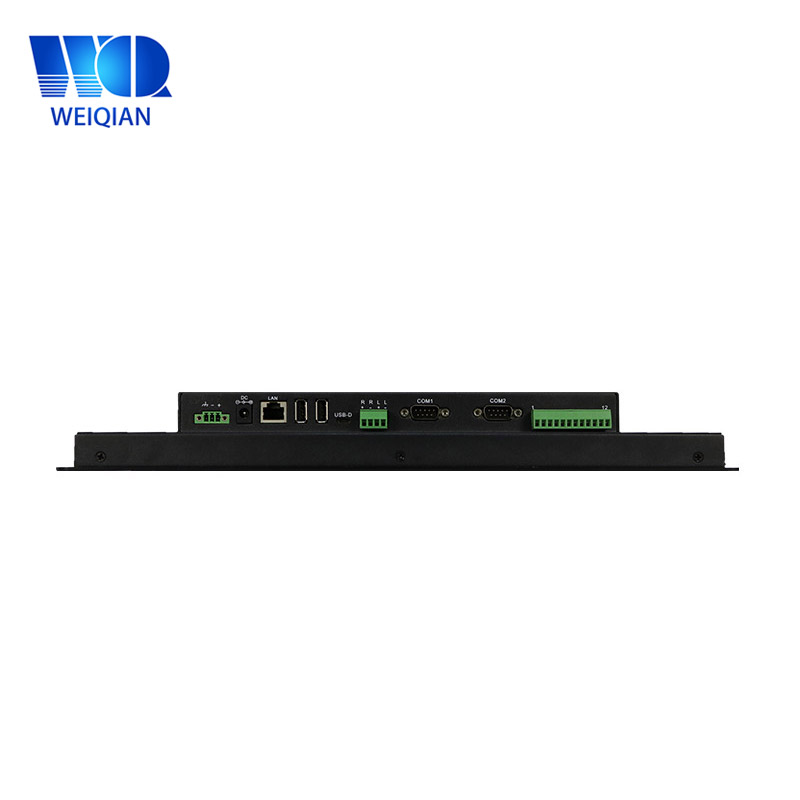

2. Interface definition



1. COM1-485A                                                  2. COM1-485B

3.. GND                                                             4. COM2-485A

5. COM2-485B                                                  6. COM4-TX of RS-232

7. COM4-RX of RS-232                                     8. COM3-TX of RS-232

9. COM3-RX of RS-232                                    10. GND

11. CANH                                                         12. CANL

13.  GND                                                          14 .  COM5-TX of RS-232

15.  COM5-RX of RS-232


2.1 RS-232 interface

4 channels  support the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM5. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485,  COM5 has 2 output type as RS-232 and CAN .


2.2 RS-485 interface

The corresponding port in Linux system is COM1/COM2 ,which is same UART port with COM1/COM2 of RS-232 interface. Also , a 120 ohm(Ω) terminal resistance inside .


2.3 CAN Bus interface

The function of CAN-Bus interface is optional. Also, a 120 ohm(Ω) terminal resistance between CAN+ and CAN- .


2.4 Power interface

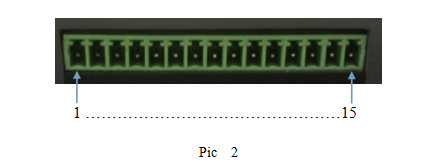

As shown in the figure:


3. Exterior size

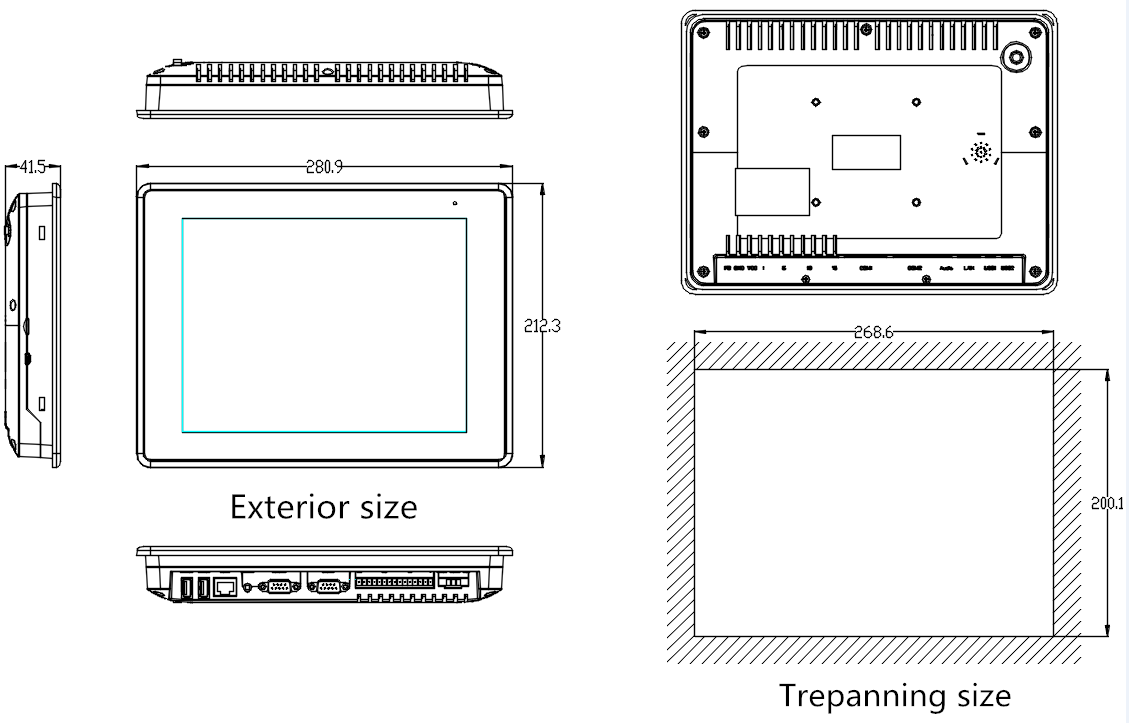

Exterior size    280.9×212.3   mm      Trepanning size    268.6×200.1   mm
