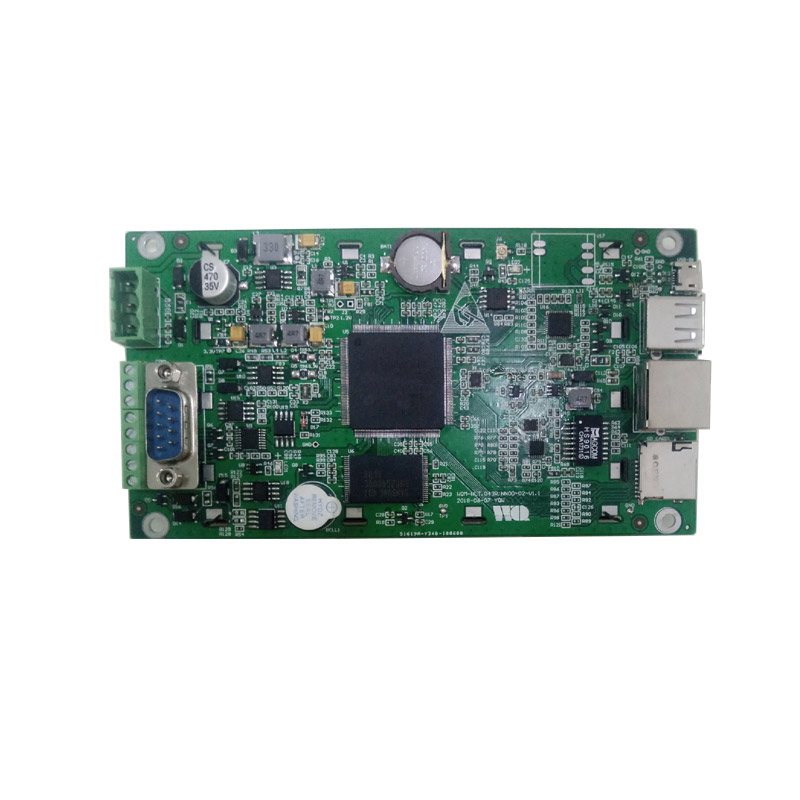

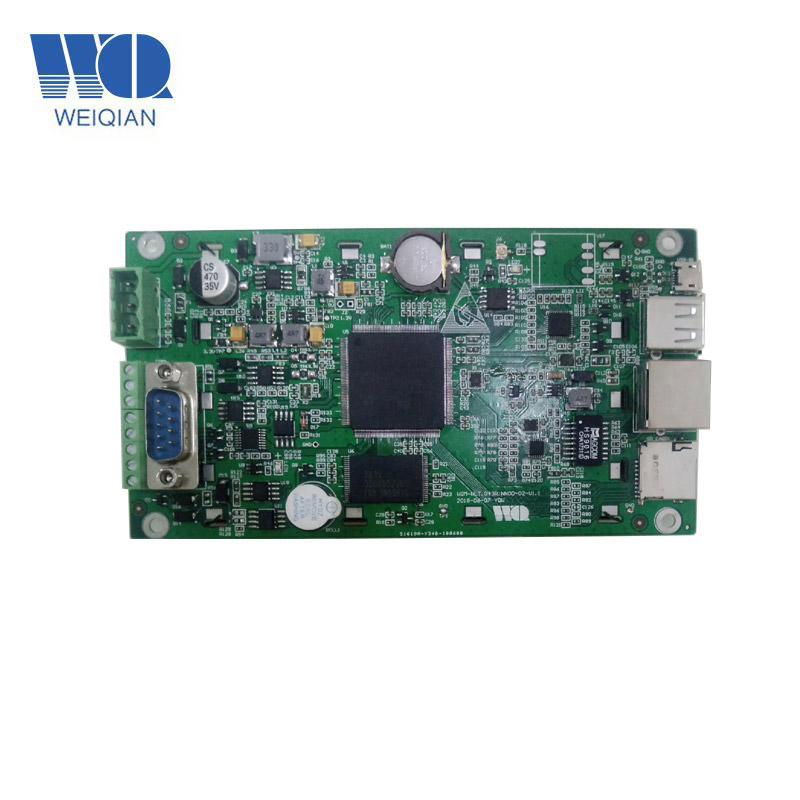

4.3inch Industrial Touch Screen LCD Module Panel PC Win Ce Mini Smart Industrial All-in -One Computer

Product model    WLT-043R-NN00

Basic   parameters

CPU:ARM9 architecture,frequency 300MHZ

Memory: 64MB DDR2

Flash:256MB NandFlash

Display   screen

Size:4.3 inch

Resolution:480×272

Wide-temperature type,64K colors or 260K colors

LED backlight:lifetime > 25000 hours

Touch   screen    4-wire resistance touch screen(driver inside)

Hardware   interface

1 channel DB9 interface(COM1).

1 channel 3-wire RS-232 serial port(COM2)

2 channel RS-485 interface(COM3、COM7),COM3   is a multiplexing of CAN , COM3 as standard .

1 channel USB device interface,support ActiveSync connect to PC to   exchange data and debug application.

1 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel TF slot, support SD/TF   card.

1 channel CAN   interface(driver inside)(optional)

1 channel DC12V~24V, industrial   power solution,higher   reliability.

OS    Windows CE 6.0

Defend degree     /

Working   Environment

 Power: DC 12V~24V,600mA

Working temperature:-10~60℃

Storage temperature:-20~80℃

working humidity:10~90%RH

Size    No shell

power:12~24V

Size :143.7x77.5x25.3 (mm)

trepanning size:108x69.5  (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Software   support

Flash FAT file system protection function.

 IDE: Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++,   Labview development.

Easy change the user-defined splash screen.

Support display screen rotation (degree: 0/90/180/270)
