1. parameters

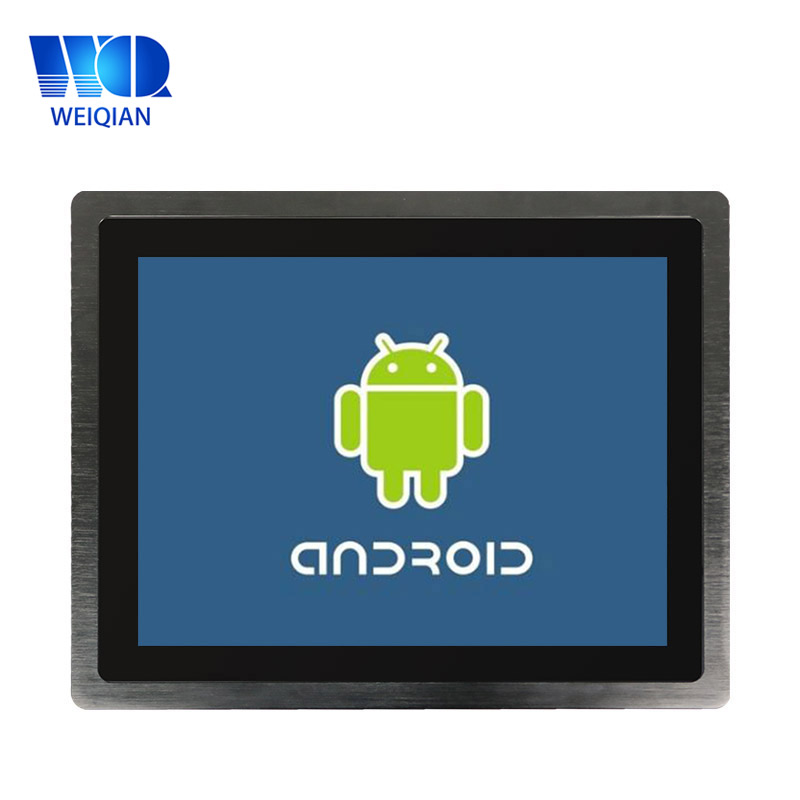

    Product model

    WAR-150C(R)-SM10

   Basic parameters

     ● CPU  Quad-core Cortex®-A9  ;  Frequency 1.4GHz

     ● Memory  1GB DDR3

     ● Flash   8GB

  Display screen

    ● Size   15 inch

    ● Resolution  1024×768

    ● Wide-temperature type     16000k colors or 24 true colors

    ● LED backlight  lifetime > 25000 hours

   Touch screen

   Capacitance/Resistance touch screen

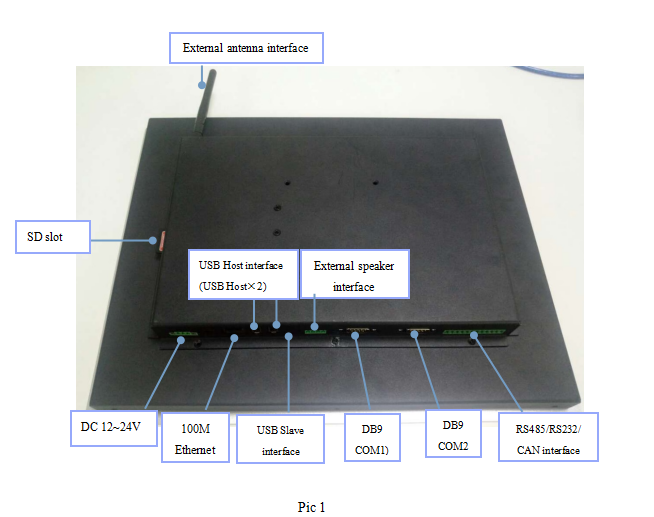

   Hardware interface

    ● 2 channel DB9 interface  COM1,COM2.

    ● 2 channel 3-wire RS-232 serial port  COM3, COM4.

    ● 2 channel RS-485 interface  COM1,COM2 , multiplex as RS-232 (COM1,COM2 ).

    ● 1 channel CAN bus. optional

    ● 4 channel IO port (DO1&DI1, DO2&DI2, DO3&DI3, DO4&DI4), multiplex as RS-232(COM3,COM4)  RS-485(COM1,COM2)   CAN .

    ● 1 channel USB Device port, support ADB connect to PC to exchange data and debug application.

    ● 2 channel USB Host port, support usual USB device such as mouse, keyboard, U disk ,etc.

    ● 1 channel 100M Ethernet interface.

    ● 1 channel SD/MMC slot,support SD /MMC card .

    ● 1 channel external Speaker interface (4Ω3w).

    ● 1 channe● external antenna. (optional )

    ● 2 channel DC12V~24V  industria● power solution  higher reliability.

    ● Built-in WIFI, Bluetooth module.  (optional )

Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.

OS :Android 4.4.2/Android 5.1

Defend degree    IP65 (front panel)

Working Environment

   ● power   12V-24V DC (3A)

   ● working Temperature  -10~60℃

   ● storage temperature:  -20~80℃

   ● working humidity   from 10 to 90%RH

Size

   ● shell structure   Metal

   ● Panel size   378.5x302.5   mm

   ● Trepanning size   360x284  mm

Application area

   ● industrial control  detection device  instruments and meters  security monitoring  medical apparatus and instruments, intelligent terminals embedded high-end application.

   ● Support CAN bus network deployment.

Software support

   ● Support Eclipse   Android Studio   QT Creator  Visual Studio 2015/2017 development   support JAVA/C/C++/C# ,etc .

   ● Easy change the user-defined splash screen.

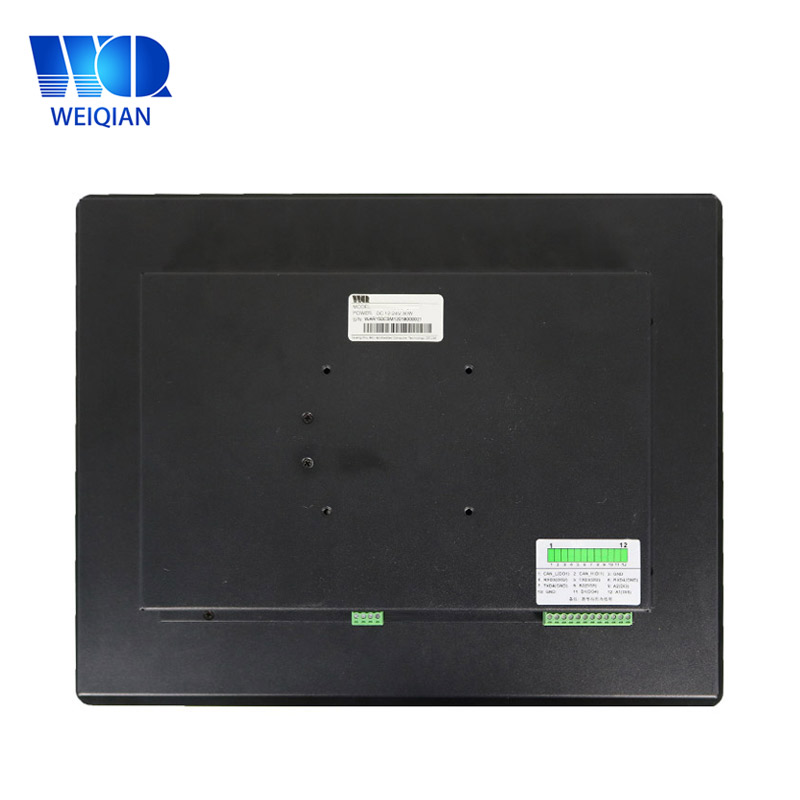

2. Interface definition

1. COM1-RS-485A                          2. COM1-RS-485B                            3. GND

2. 4. COM2-RS-485A                      5. COM2-RS-485B                            6. COM4-RS-232-TX

  7. COM4- RS-232-RX                     8. COM3-RS-232-TX                         9. COM3-RS-232-RX

 10. GND                                         11. CANH                                           12. CANL

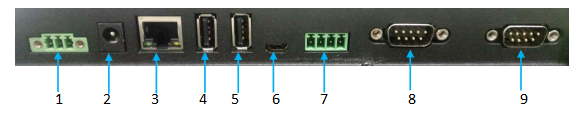

1. 3P   12-24V   Terminal power input interface   2.  12-24V power adapter input interface

3.  100M Ethernet interface                                  4.  USB Host interface    USB host

5.  USB Host interface    USB Host                        6.  USB slave interface    USB Device

7.  External speaker interface                                8.   RS-232  COM1 interface    isolated

9.  RS-232  COM2  interface   isolated

2.1 RS-232 interface

4 channe● serial port  support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4.

2.2 RS-485 interface

The corresponding port in Android system is COM1  COM2, and COM1/COM2, multiplexing as  RS-232 interface ( COM1/COM2 ).

2.3 CAN Bus interface

The function of Can-bus interface is optiona● . Also, without terminal resistance inside ,pls specify once in need.

2.4 Power interface

2.5 External Speaker interface

1.  Right channel  OUTL-                              2.  Right channel  OUTL+

3.  Left channel  OUTR-                                4.  Left channel  OUTR+

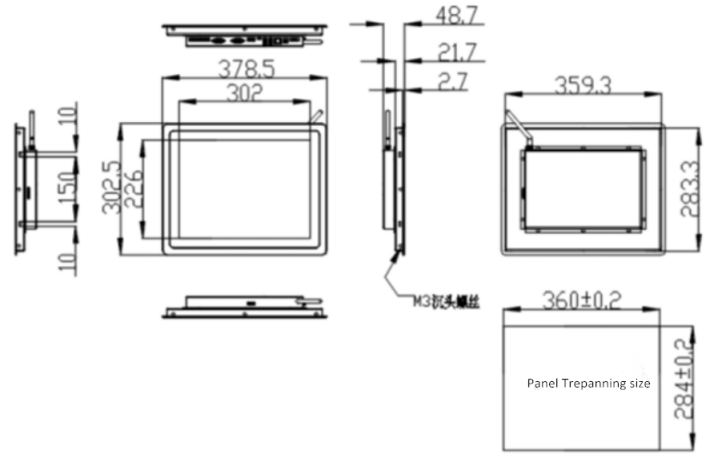

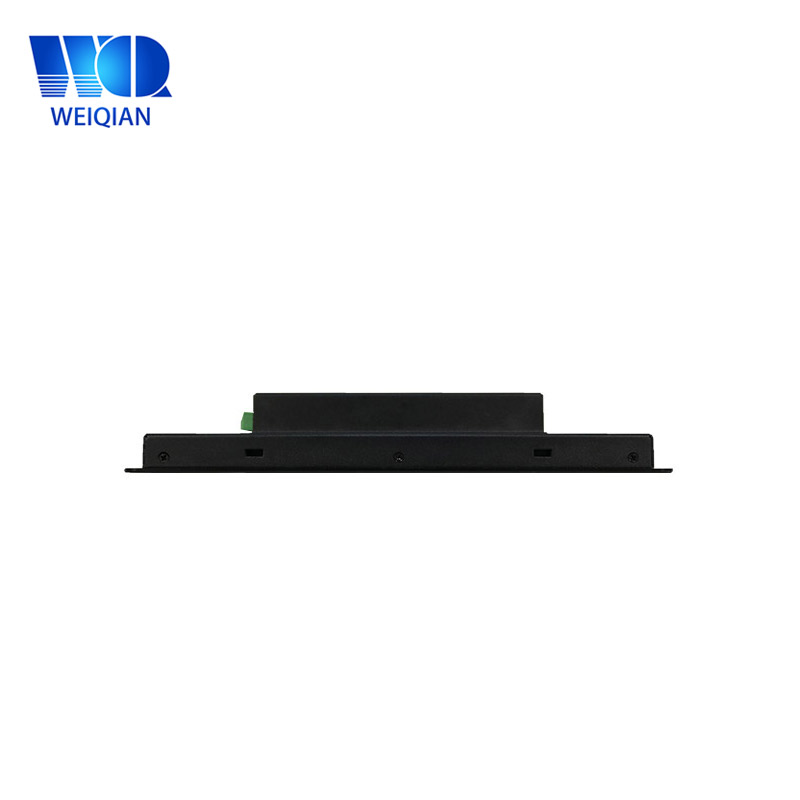

3. Exterior size

Exterior size   378.5x302.5x48.7  mm          Trepanning size   360x284   mm
