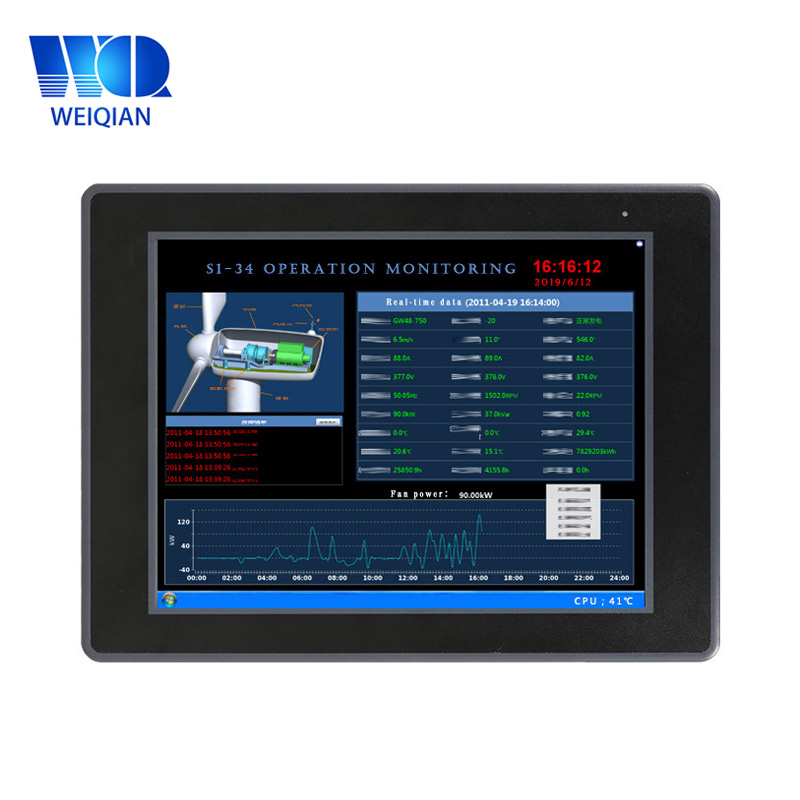

10.4 inch WinCE Industrial Panel PC medical computer tablets risc v board risc v single board computer

Keywords :

medical computer tablets / risc v board / risc v single board computer


  • Hits : 626
  • Company : Guangzhou Weiqian computer technology co., LTD.
  • Telephone : bella@wqlcd.com
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
  • High reliability, no handling errors are allowed, and strict tests are passed
  • With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
  • Communication interface suitable for industrial use, easy to expand
  • Simple and easy secondary development, multi-platform, multi-language support, providing routines

Product Details

1.parameters

Product model

WLT-104R-AP20

Basic parameters

CPU:Cortex A8 Architecture;Frequency 1.0GHZ

 Memory:512MB DDR3

 Flash:256MB NandFlash

 Display screen

 Size:10.4 inch

 Resolution:800×600

 Wide-temperature type, 64K colors or 260K colors

 LED backlight:lifetime>25000 hours

Touch screen

4-wire resistance touch screen(driver inside)

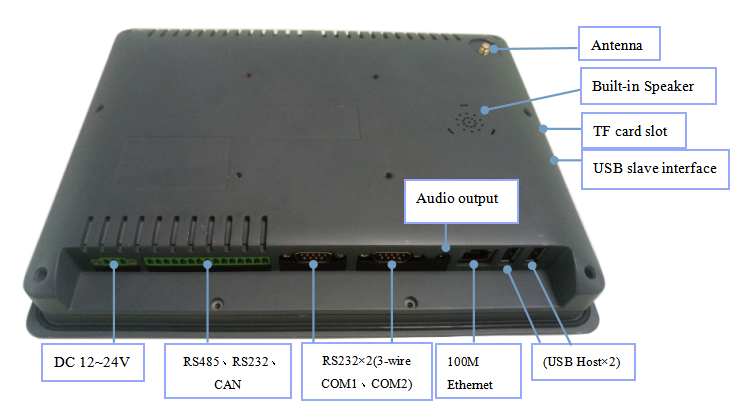

Hardware interface

 5 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4,COM5),2 channel(COM1,COM2)is multiplexing as RS-485 Bus, 1channel (COM 5) is multiplexing as CAN .

 1 channel CAN Bus.(optional)

 1 channel USB Device interface,support ActiveSync connect to PC to exchange data and debug application.

 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

 1 channel 100M Ethernet interface.

 1 channel SD/MMC slot,support TF card.

 1 channel 3.5mm audio output interface.

 1 channel built-in speaker interface. (optional)

 1 channel WIFI Antenna interface.(optional)

 1 channel DC12V~24V,industrial power solution,higher reliability.

 1 channel built-in WIFI .(optional)

Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.

OS

Windows CE 6.0 R3

Defend degree

IP65 (front panel)

Working Environment

 power:DC 12V~24V ,700mA

 working Temperature:-10~60°C

 Storage Temperature:-20~80°C

 Working humidity:10~90%RH

Size

 Structure:plastic

 Panel size:280.90×212.30×41.5(mm)

 Trepanning size:268.60×200.10 (mm)

Application area

 industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

 Support CAN bus network deployment.

Software support

 Flash power-down protection function.

 IDE: Visual Studio 2005/2008.net(.net 2.0 Compact),EVC++,Labview development.

 Easy change the user-defined splash screen.

 Support display screen rotation (degree: 0/90/180/270)

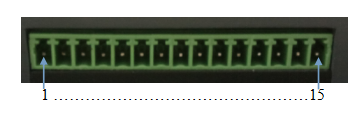

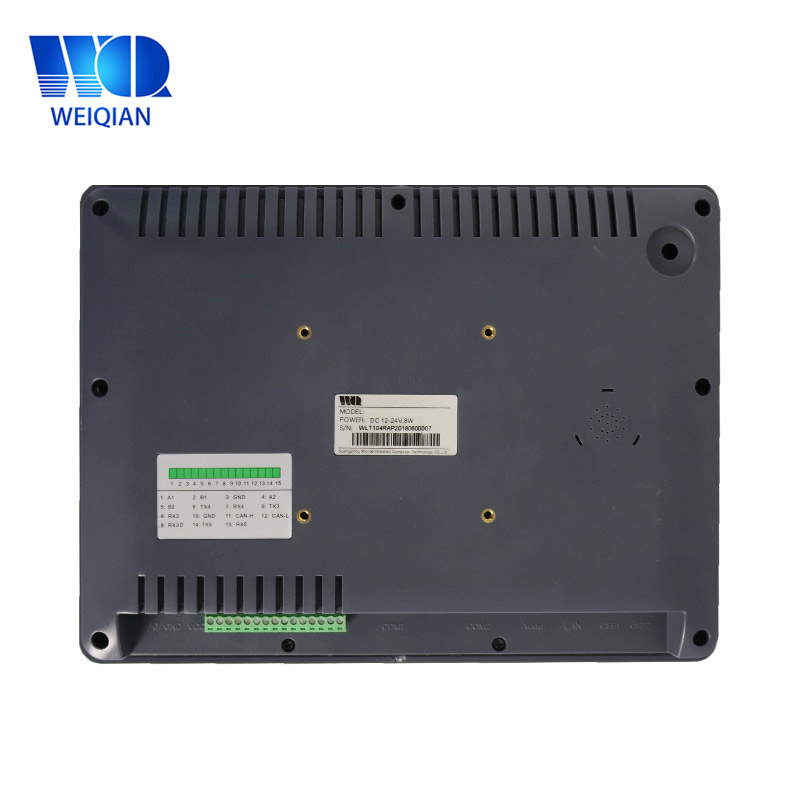

2.  Interface definition



1. COM1-485A

2. COM1-485B

3.. GND

4. COM2-485A

5. COM2-485B

6. COM4-TX of RS-232

7. COM4-RX of RS-232

8. COM3-TX of RS-232

9. COM3-RX of RS-232

10. GND

11. CANH

12. CANL

13.  GND

14 .  COM5-TX of RS-232

15.  COM5-RX of RS-232

2.1 RS-232 interface

4 channels,support the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM5. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485,  COM5 has 2 output type as RS-232 and CAN .

2.2 RS-485 interface

The corresponding port in WinCE system is COM1/COM2 ,which is same UART port with COM1/COM2 of RS-232 interface.  Also , a 120 ohm(Ω) terminal resistance inside .

2.3 CAN Bus interface

The function of CAN-Bus interface is optional. Also, a 120 ohm(Ω) terminal resistance between CAN+ and CAN- .

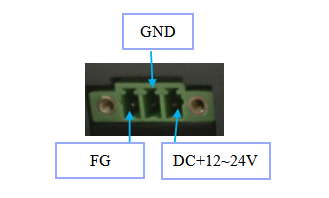

2.4 Power interface

As shown in the figure:

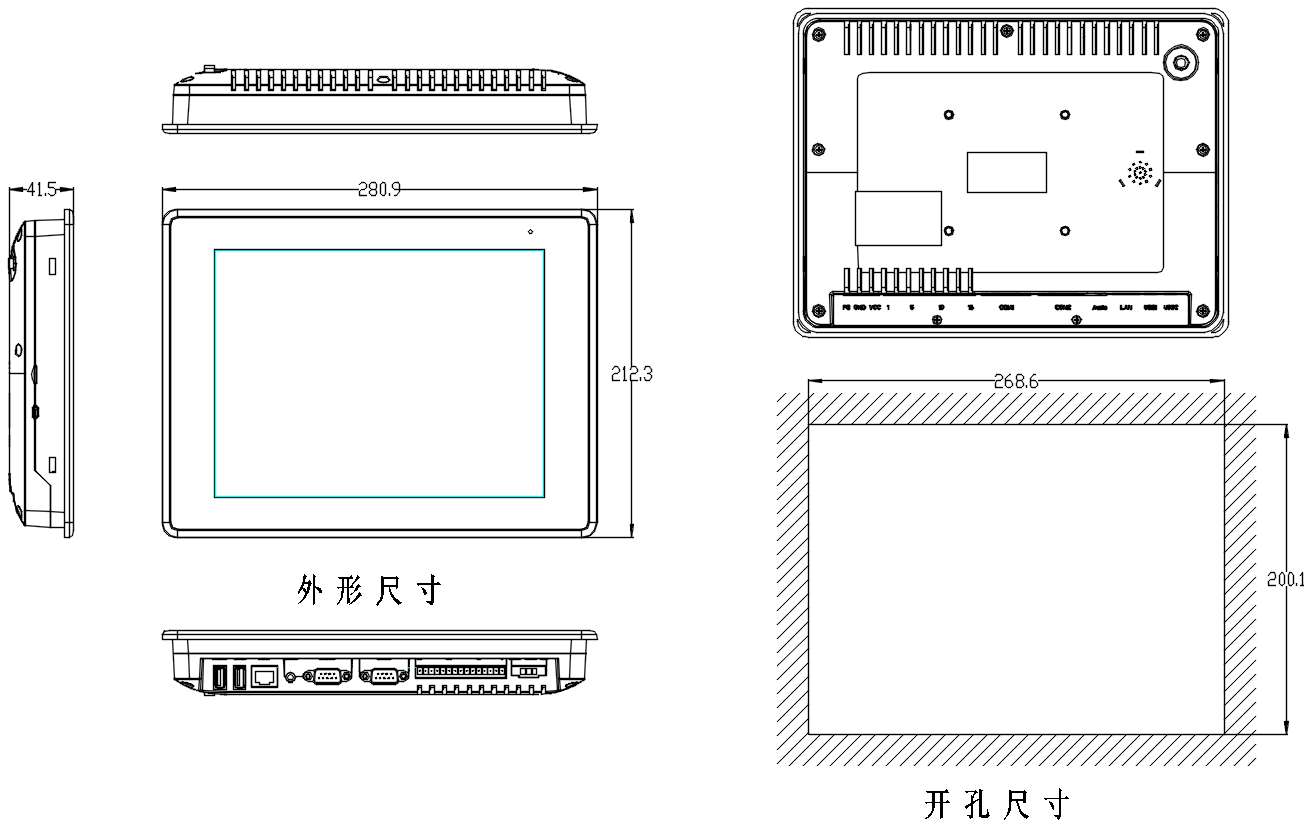

3. Exterior size

Exterior size:280.90×212.30×41.5(mm)     Trepanning size:268.60×200.10 (mm)
