Five Advantages Of Products

High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
High reliability, no handling errors are allowed, and strict tests are passed
With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
Communication interface suitable for industrial use, easy to expand
Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance

Product Details

1.Parameters

Product model

WLT-102R-AP20

Basic parameters

● CPU:Cortex A8 Architecture,frequency 1.0GHZ

● Memory:512MB DDR3

● Flash:256MB NandFlash

Display screen

● Size:10.2 inch

● Resolution:800×480

● LED backlight:lifetime>25000 hours

Touch screen

4-wire resistance touch screen

Hardware interface

● 4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4),2 channel(COM1,COM2)multiplexing as RS-485 bus.(serial port with isolated mode as optional)

● 1 channel CAN bus.(optional)

● 1 channel USB Device interface,support ActiveSync connect to PC to exchange data and debug application.

● 3 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

● 1 channel 100M Ethernet interface.

● 1 channel WIFI module inside.(optional)

● 1 channel SD/MMC slot.

● 1 channel 3.5mm audio output interface.

● 1 channel DC12V~24V,industrial power solution,higher reliability.

Windows CE 6.0 R3

Defend degree

IP65 (front panel)

Working Environment

● power:12V DC(12V as recommendation,the range is 12V~24V),700mA

● working Temperature:-10~60°C

● Working humidity:10~90%RH

Size

● structure:plastic

● Panel size:275×181(mm)

● Trepanning size:266×171(mm)

Application area

● industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

● Support CAN bus network deployment.

Software support

● Flash power-down protection function.

● IDE: Visual Studio 2005/2008.net(.net 2.0 Compact),EVC++,Labview development.

● Easy change the user-defined splash screen.

● Support display screen rotation (degree: 0/90/180/270)

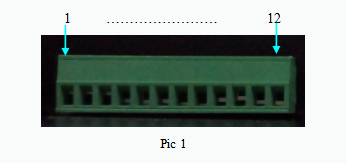

2.Interface definition

1. CANL

2. CANH

3. GND

4. COM3-RX of RS-232

5. COM3-TX of RS-232

6. COM4-RX of RS-232

7. COM4-TX of RS-232

8. COM2-485B

9. COM2-485A

10. GND

11. COM1-485B

12. COM1-485A

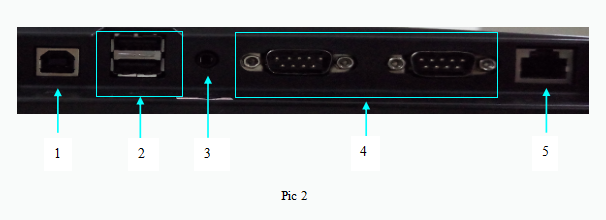

1. USB slave interface(USB Device)

2. USB Host interface(USB host)

3. Audio output

4. RS-232 ( COM1,COM2 )(isolated)

5. 100M Ethernet

2.1 RS-232 interface

4 channels,support the highest-level baudrate 115200bps. The corresponding interface in Win CE system is COM1 ~ COM4.

2.2 RS-485 interface

The corresponding port in WinCE system is COM1,COM2. And COM1/COM2 is a multiplexing of RS-232 interface.

2.3 CAN Bus interface

The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance ,pls specify if in need.

2.4 Power interface

As shown in the figure:

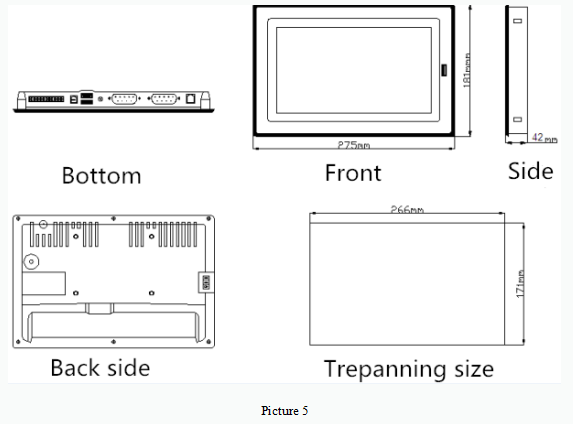

3.Exterior size

Exterior size:275x181x42(mm) Trepanning size:266x171(mm)
