Industrial Touch Screen LCD Module Panel PC Industrial All-in -One Computer
Five Advantages Of Products
- Users can easily set up the boot interface
- WQ brand factory direct sales
- Front panel IP65 , designed by industrial standard
- High stability,7x24 hours no shutdown no outage
- Support Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++, Labview development.lEasy change the user-defined splash screen.
Product Details

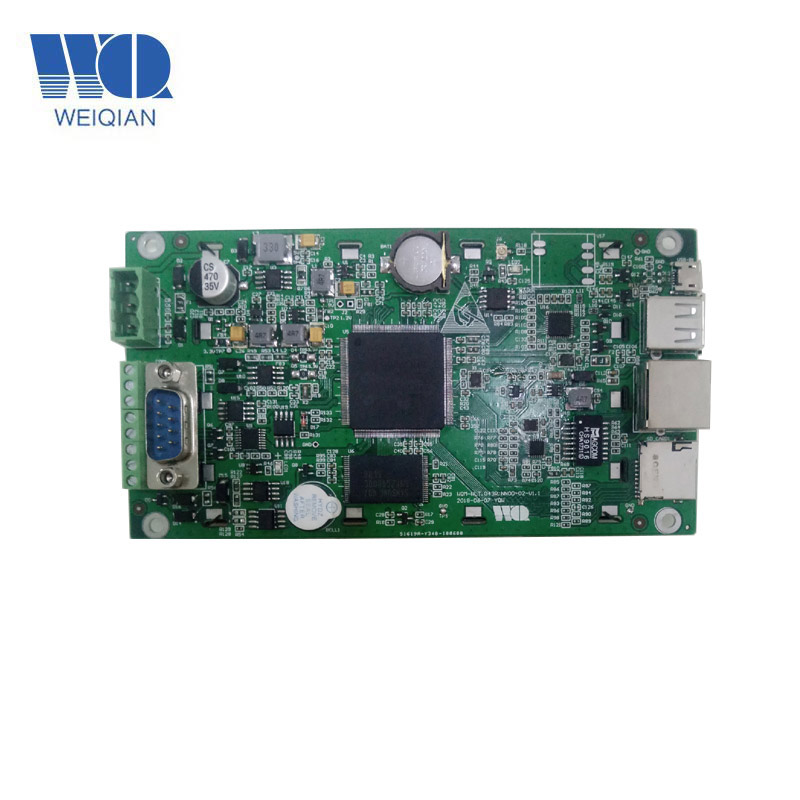

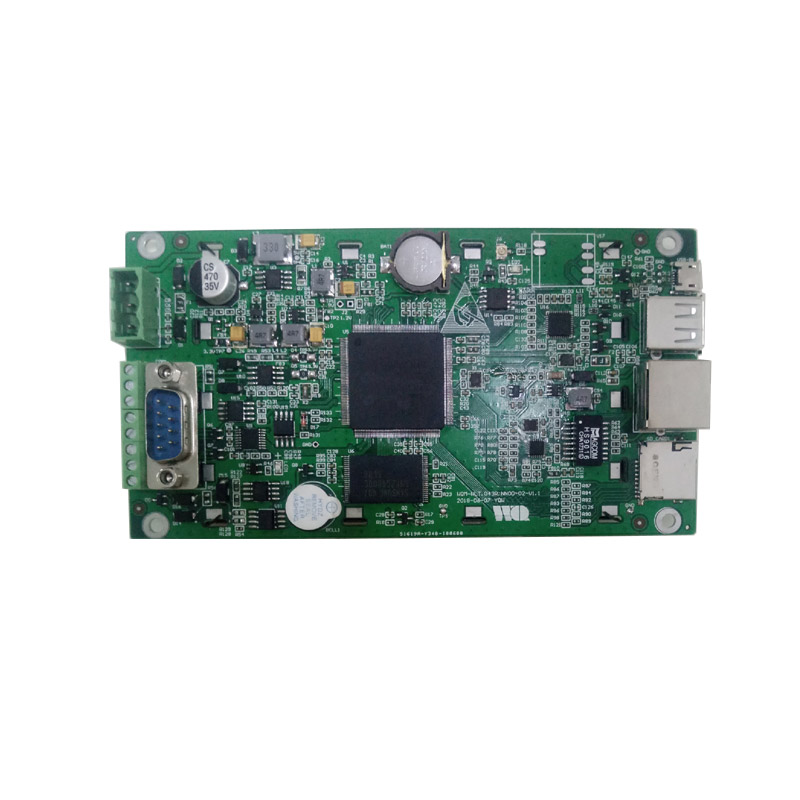

Industrial Touch Screen LCD Module Panel PC Industrial All-in -One ComputerProduct model WLT-043R-NN00
Basic parameters
CPU:ARM9 architecture,frequency 300MHZ
Memory: 64MB DDR2
Flash:256MB NandFlash
Display screen
Size:4.3 inch
Resolution:480×272
Wide-temperature type,64K colors or 260K colors
LED backlight:lifetime > 25000 hours
Touch screen 4-wire resistance touch screen(driver inside)
Industrial Touch Screen LCD Module Panel PC Industrial All-in -One Computer Hardware interface
1 channel DB9 interface(COM1).
1 channel 3-wire RS-232 serial port(COM2)
2 channel RS-485 interface(COM3、COM7),COM3 is a multiplexing of CAN , COM3 as standard .
1 channel USB device interface,support ActiveSync connect to PC to exchange data and debug application.
1 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.
1 channel 100M Ethernet interface.
1 channel TF slot, support SD/TF card.
1 channel CAN interface(driver inside)(optional)
1 channel DC12V~24V, industrial power solution,higher reliability.
OS Windows CE 6.0
Defend degree /
Working Environment
Power: DC 12V~24V,600mA
Working temperature:-10~60℃
Storage temperature:-20~80℃
working humidity:10~90%RH
Size No shell
power:12~24V
Size :143.7x77.5x25.3 (mm)
trepanning size:108x69.5 (mm)
Application area
industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.
Software support
Flash FAT file system protection function.
IDE: Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++, Labview development.
Easy change the user-defined splash screen.
Support display screen rotation (degree: 0/90/180/270)
