Five Advantages Of Products

  • Front panel IP65 , designed by industrial standard
  • High stability,7x24 hours no shutdown no outage
  • Easy for secondary development
  • adapting to various harsh environments
  • Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc

Product Details

Android Industrial Touch Screen PC Touch Screen Industrial Monitor  Product model     WAR-156C-SM20
Basic parameters


    CPU:Octa-core Cortex®-A53 architecture ,frequency 1.4GHz

    Memory:2GB DDR3

    Flash:8GB NandFlash

Display screen

    Size:15.6 inch

    Resolution:1920×1080

    Wide-temperature type,262k colors or 18 true colors

    LED backlight:lifetime > 25000 hour

Touch screen     Capacitance touch screen

Android Industrial Touch Screen PC Touch Screen Industrial Monitor

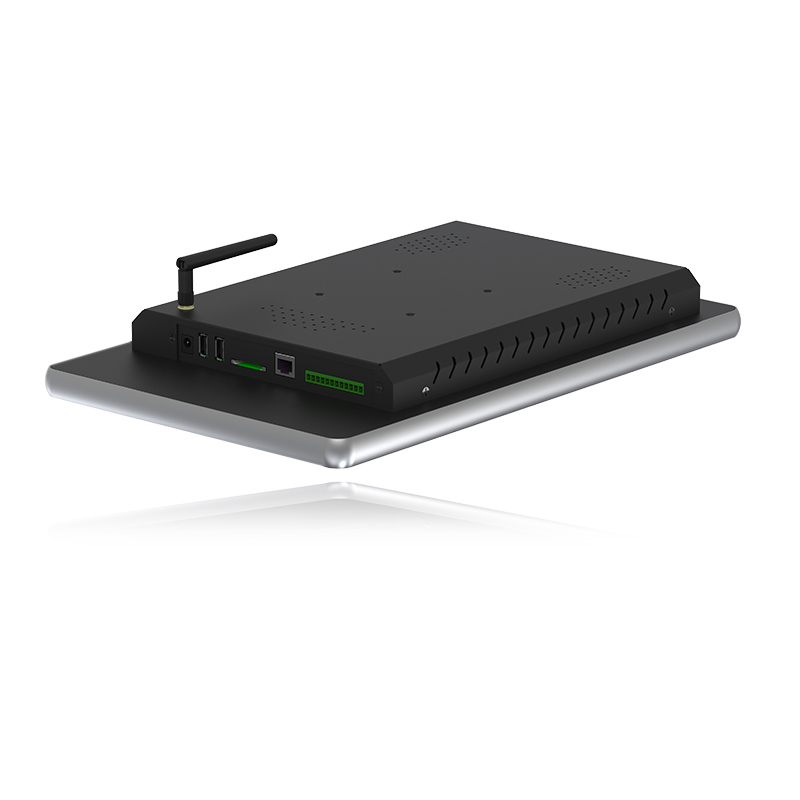

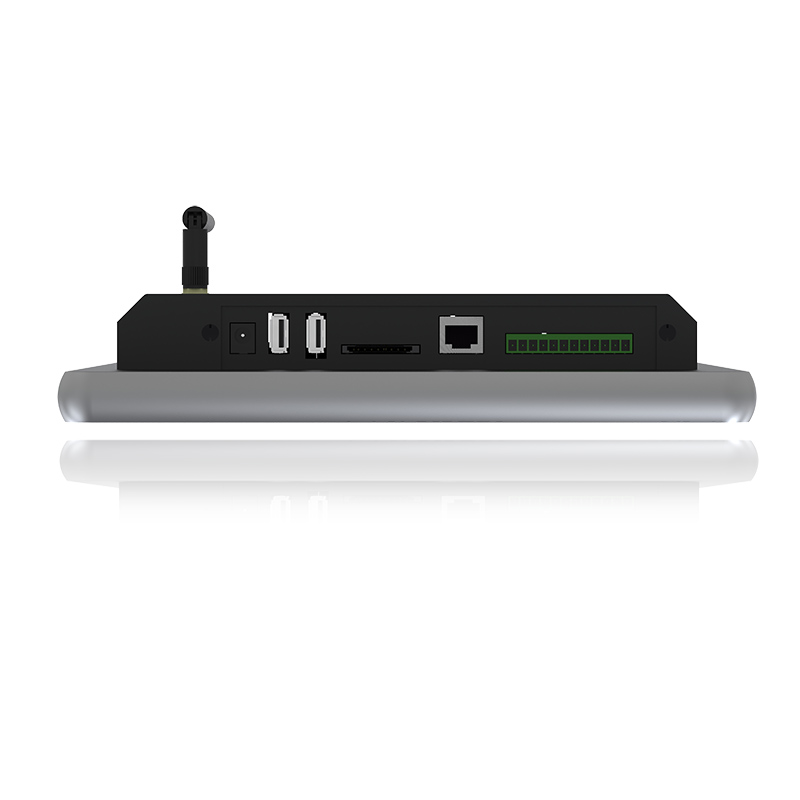

Hardware interface

    2 channel 3-wire RS-232 serial port(COM3,COM4).

    2 channel RS-485(COM1,COM2) .

    1 channel CAN bus interface.(optional).

    1 channel USB device interface, support ADB connect to PC to exchange data and debug application.

    2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

    1 channel 100M Ethernet interface.

    1 channel SD/MMC slot, support TF /SD card.

    1 channel power adapter interface (DC12V~24V) .

    1 channel external WIFI interface  (optional).

    Built-in WIFI , Bluetooth (optional).

OS     Android 5.1


Defend degree     IP65 (front panel)


Working Environment

    power:DC 12V-24V (24V as recommendation)

    working Temperature:0~50ºC

    storage temperature:0~60ºC

    working humidity:10~90%RH

Size

    shell structure: Metal

    panel size:400×250×45.9 (mm)

Application area

    industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

    Support CAN bus network deployment.

Software support

    Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

    Easy change the user-defined splash screen.
