Five Advantages Of Products

  • High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
  • High reliability, no handling errors are allowed, and strict tests are passed
  • With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
  • Communication interface suitable for industrial use, easy to expand
  • Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance

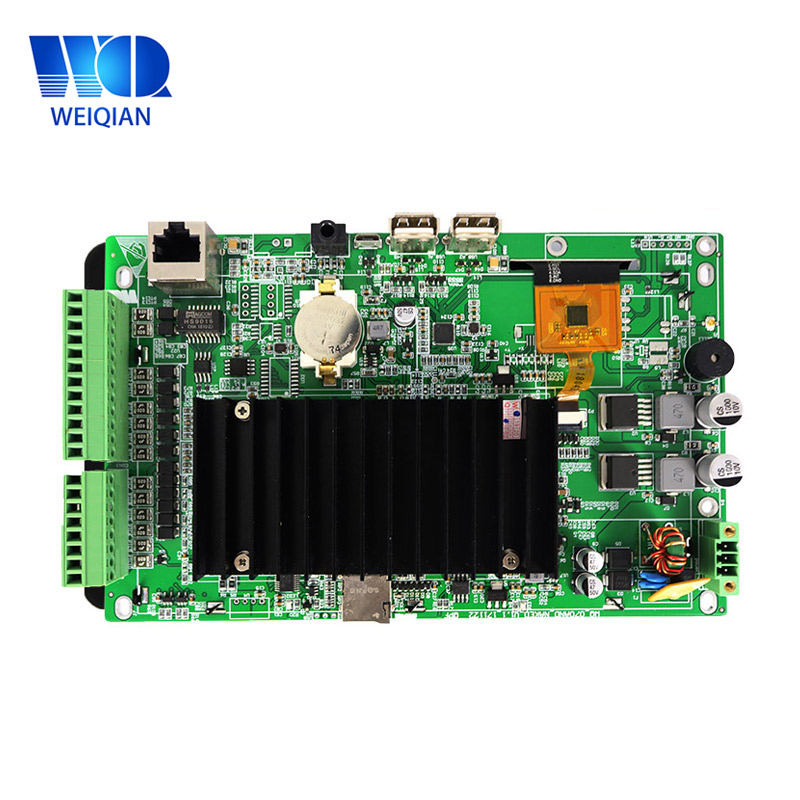

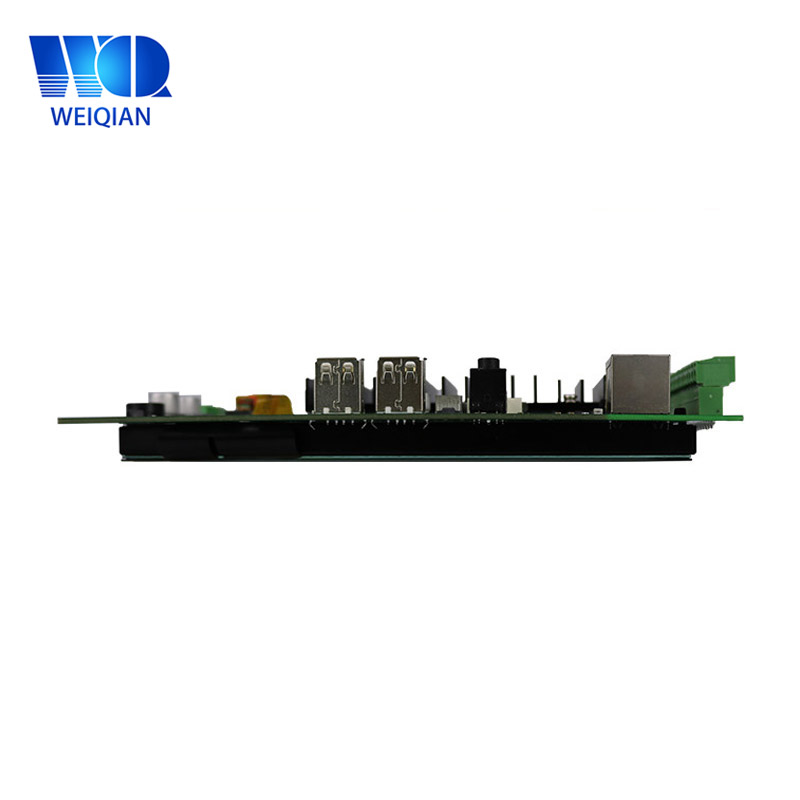

Product Details

1.Parameters

Product model

WLX-070C-SN10/ WLX -070R-SN10

Basic parameters

CPU:Quad-core Cortex®-A9; Frequency 1.4GHz

 Memory:1GB DDR3

 Flash:8GB

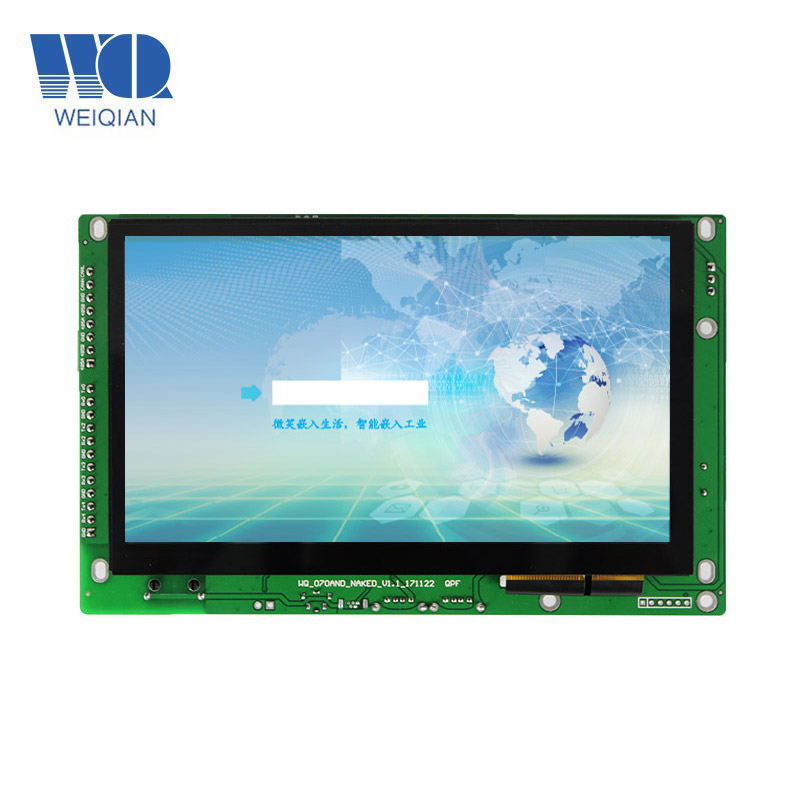

Display screen

 Size:7 inch

 Resolution:1024×600

 Wide-temperature type,16000k colors or 24 true colors

 LED backlight:lifetime > 25000 hours

Touch screen

Capacitance/Resistance touch screen

Hardware interface

 4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4). (Isolation as optional)

 2 channel RS-485(COM1,COM2)multiplex as RS-232 (COM1,COM2) . (Isolation as optional)

 1 channel isolated CAN bus.(optional).

 1 channel USB device interface, support ADB connect to PC to exchange data and debug application.

 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

 1 channel 100M Ethernet interface.

 1 channel SD/MMC slot, support MMC/mini SD card.

 1 channel 3.5mm earphone output interface.

 1 channel speaker interface (built-in power amplifier 2w).(optional)

 1 channel 4G module . (optional)

 1 channel WIFI interface .(optional)

 1 channel DC 12V~24V,industrial power solution,higher reliability.

Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.

OS

Linux

Defend degree

/

Working environment

 power:DC 12V-24V (24V as recommendation)

 working temperature:-10~60℃

 storage temperature:-20~80℃

 working humidity:10~90%RH

Size

 No shell

 power:DC 12V-24V (24V as recommendation)

 size:188×117×41 (mm)

Application area

 industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

 Support CAN bus network deployment.

Software support

 Support Eclipse, QT Creator, Arm linux gcc/g++ compiler, shell programming, STL library, Python2.7 development, support JAVA/C/C++/C# ,etc .

 Easy change the user-defined splash screen.

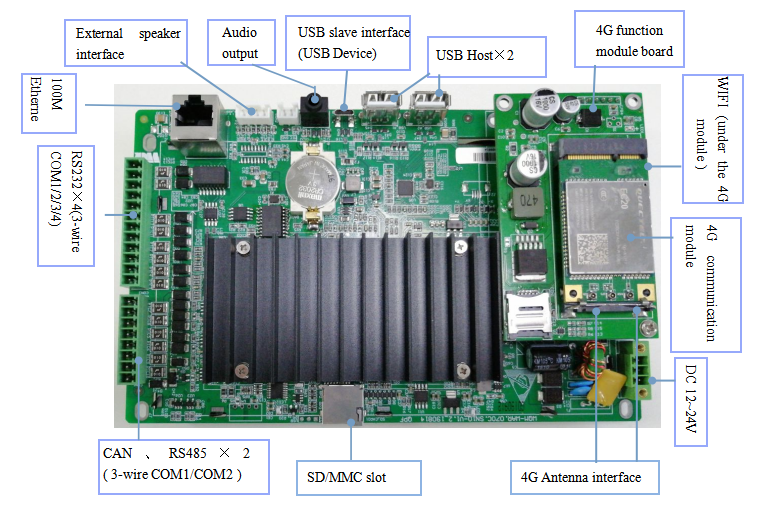

2.  Interface definition



1.  COM1-TX0 of RS-232

2. COM1-RX0 of RS-232

3. GND

4. COM2-TX2 of RS-232

5. COM2-RX2 of RS-232

6. GND

7. COM3-TX3 of RS-232

8. COM3-RX3 of RS-232

9.   GND

10.  COM4-TX4 of RS-232

11.  COM4-RX4 of RS-232

12.  GND

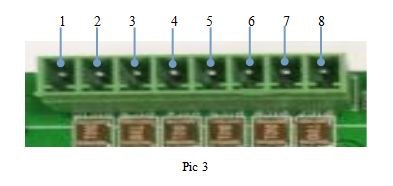

1.  CANL

2.  CANH

3.  GND

4.  COM2-485B

5.  COM2-485A

6.  GND

7.  COM1-485B

8.  COM1-485A

2.1 RS-232 interface

4 channel RS-232 serial port,support the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM4.

2.2 RS-485 interface

The corresponding port in Linux system is COM1,COM2.

2.3 CAN Bus interface

The function of Can-bus interface is optional.

2.4 Power interface

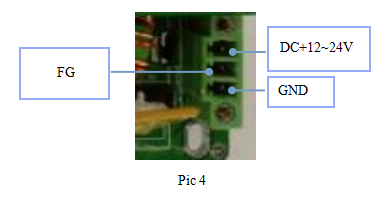

As shown in the figure:

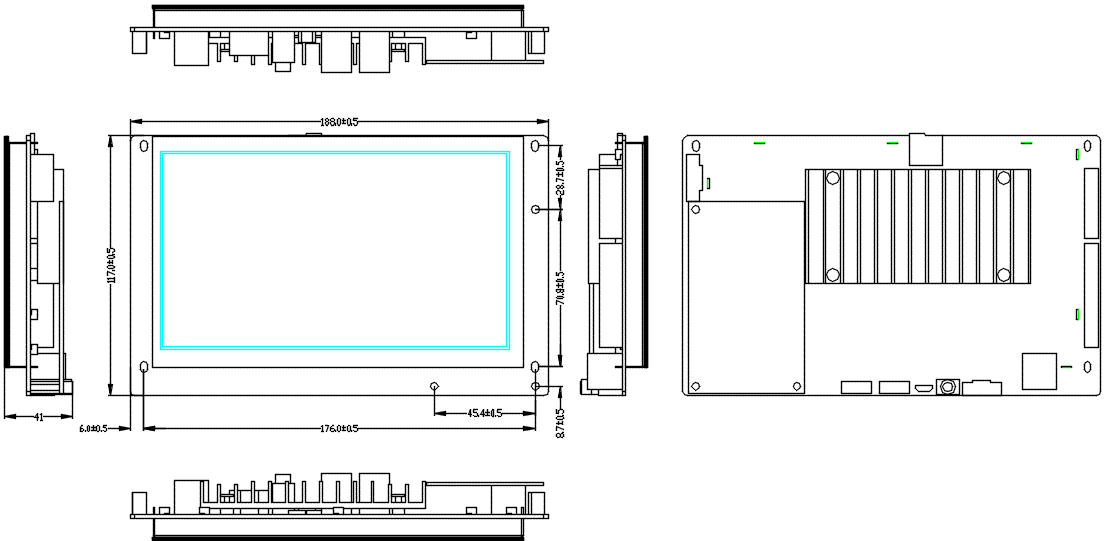

3.Exterior size

Exterior size:188x117x41(mm)
