7 inch Industrial Touch Scree Panel PC

Products

Keywords :

7 inch Industrial Touch Scree Panel PC / 7 inch Industrial Panel PC / Touch Scree Panel PC

Hits : 44
Company : Guangzhou Weiqian computer technology co., LTD.
Telephone : bella@wqlcd.com

Product Details

Contact Us

Five Advantages Of Products

High stability,7x24 hours no shutdown no outage.
Easy for secondary development
Support CAN bus to facilitate customers to build fieldbus network
adapting to various harsh environments
Users can easily set up the boot interface

Product Details

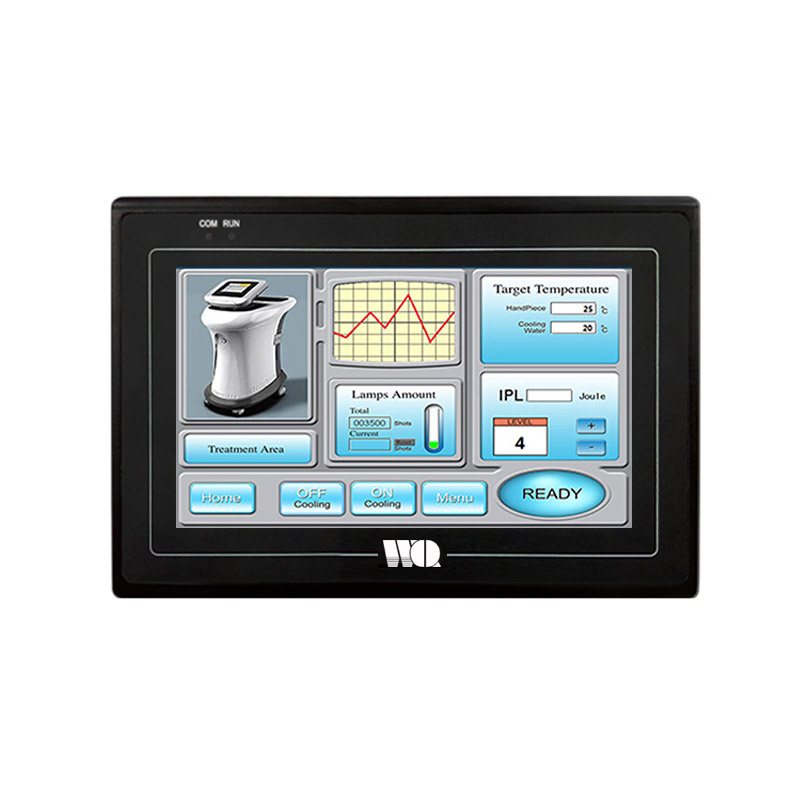

7 inch Industrial Touch Scree Panel PC

Product model

WLT-070R-AP20

Basic parameters

CPU: Cortex -A8 architecture,frequency 1.0GHZ

Memory: 512MB DDR3

Flash:256MB NandFlash

Display screen

Size:7 inch

Resolution:800×480

Wide-temperature type,64K colors or 260K colors

LED backlight:lifetime > 25000 hours

Touch screen

4-wire resistance touch screen(driver inside)

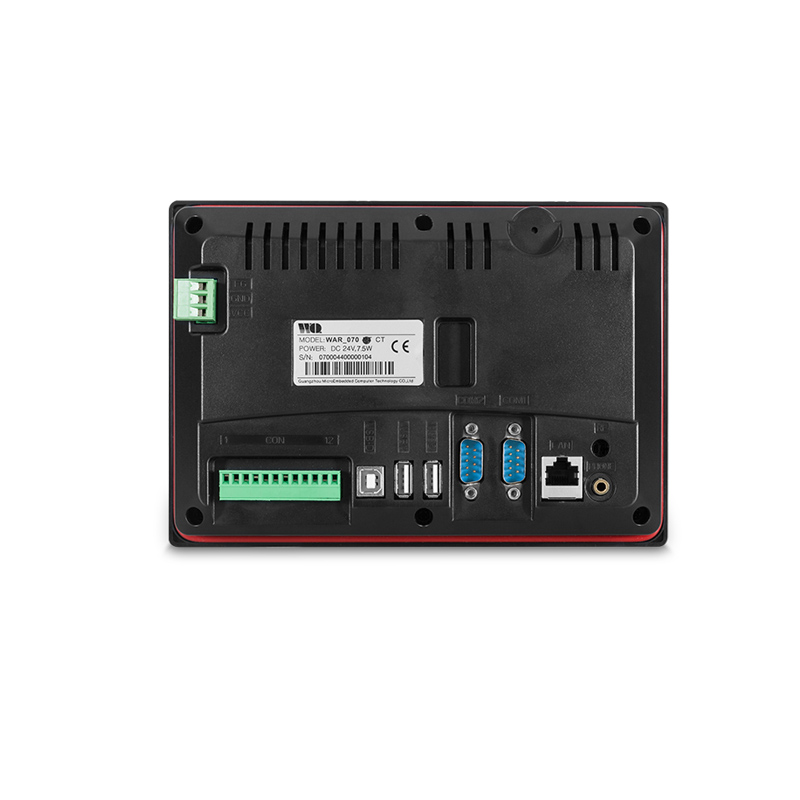

Hardware interface

4 channel isolated 3-wire RS-232 serial port(COM1,COM2,COM3,COM4),2 channel(COM1,COM2)multiplex as RS-485 bus.

1 channel isolated CAN bus.(optional)

1 channel WIFI module inside.(optional)

1 channel USB device interface,support ActiveSync connect to PC to exchange data and debug application.

2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

1 channel 10/100M Ethernet interface.

1 channel SD/MMC slot.

1 channel 3.5mm audio output interface.

1 channel DC12V~24V,industrial power solution,higher reliability.

Windows CE 6.0 R3

Defend degree

IP65(front panel)

Working environment

power:12V DC(12V as recommendation,the range is 12V~24V),600mA

working temperature:-10~60ºC

storage temperature:-20~80ºC

working humidity:10~90%RH

Size

shell structure:plastic

panel size:206.00 x 142.00 (mm)

trepanning size:196.00 x 132 .00 (mm)

Application area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

Support CAN bus network deployment.

Software support

Flash power-down protection function.

IDE: Visual Studio 2005/2008.net(.net 2.0 Compact),Labview development.

Support QT4.8 GUI

Easy change the user-defined splash screen.

Support display screen rotation (degree: 0/90/180/270)
