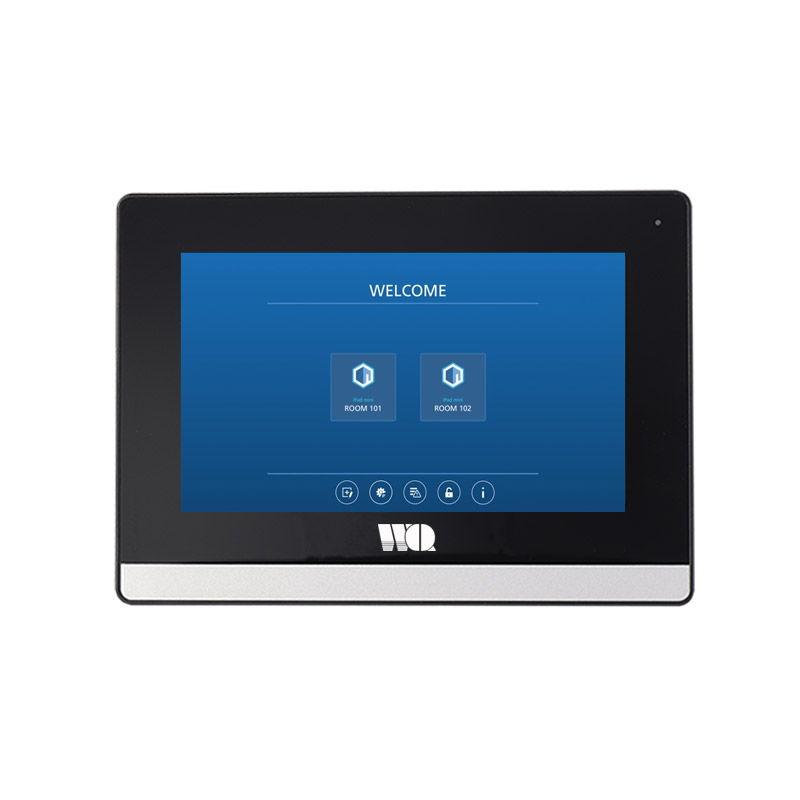

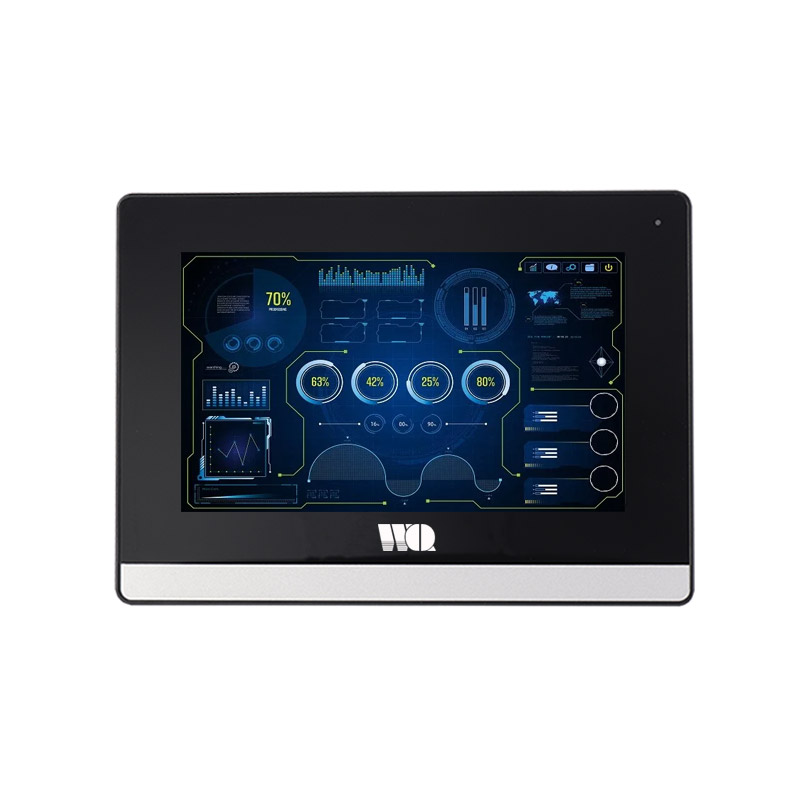

Product   model

WAR-070C-SS10

Basic   parameters

 CPU: Cortex-A9 Architecture, Quad-Core, frequency 1.0GHz

Memory: 1GB DDR3

 Flash:8GB EMMC

Display   screen

 size:7 inch

 Resolution:1024x600

Wide-tempreature type,16,000K colors or 24-bit true color

LED backlight:liftetime > 25000 hour

Touch   screen

Capacitive touch screen with 5 point Multi-touch

Hareware   interface

1 channel DB9(COM1)

 1 channel 3-wire RS-232 uart(COM2)

1 channel RS-485(COM3)

 1 channel isolating CAN bus (optional)

 1 channel external earial

 1 channel USB Device   interface,support ADB connect to PC to exchange data and debug application.

2 channel USB Host interface,   support usual usb deivices, such as mouse,keyboard, U disk and so on.

 1 channel 100 ethernet.

1 channel TF slot, support  mini SD card or TF card.

 1 channel audio output interface.

 1 channel speaker with dual tracks.

1 channel slot for sim card to support 4G.

DC12V~24V power input.

4G /wifi / bluetooth module ( optional ).

OS

Android 4.4.2

Defend   degree

IP65 (frontpanel)

Working   environment

 power:DC12V ~ 24V(24V as recommendation),600mA

 working temperature:-10~60ºC

 storage temperature:-20~85ºC

humidity:10~90%RH

size

shell structure:plastic

panel size:206.00×142.00(mm)

 trepanning size:195.6×131.6(mm)

Application   area

1. industrial control, detection device, instruments and  meters, security monitoring, medical apparatus  and instruments, intelligent terminal and so on.

2. Support CAN Bus network deployment.

software support

IDE supported:Eclipse+ADT,Android Studio,QT Creator,Visual Studio 2015/2017

Development language: JAVA/C/C++/C#   and so on.

Easy change the user-defined   splash screen.
