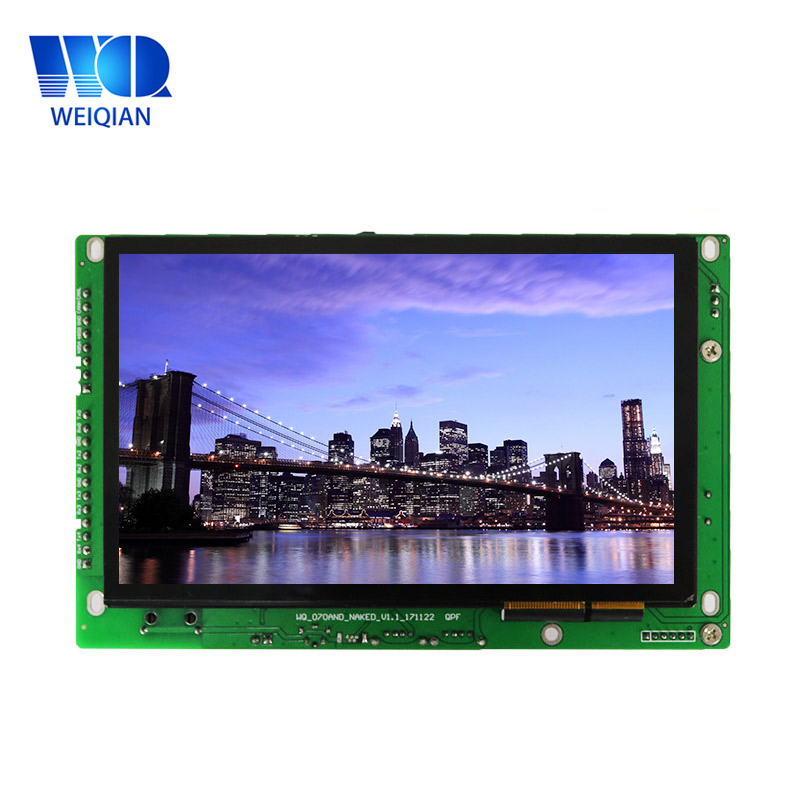

7 inch Android Industrial Panel PC with Shell-less Module industrial pcs computer industrial embedded industrial computer

Keywords :

industrial pcs / computer industrial / embedded industrial computer


  • Hits : 85
  • Company : Guangzhou Weiqian computer technology co., LTD.
  • Telephone : bella@wqlcd.com
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
  • High reliability, no handling errors are allowed, and strict tests are passed
  • With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
  • Communication interface suitable for industrial use, easy to expand
  • Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance

Product Details

1. Parameters

Product model

WAR-070C-SN00

Basic parameters

● CPU:Quad-core Cortex®-A7 architecture;  Frequency 1.2GHz

● Memory:1GB DDR3

● EMMC:8GB

Display screen

● Size:7 inch

● Resolution:1024×600

● Wide-temperature type,16000k colors or 24 true colors

● LED backlight:lifetime > 25000 hours

Touch screen

Capacitance touch screen

Hardware interface

● 4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4).

● 1 channel RS-485(COM4)multiplex as RS-232 (COM4) .

● 1 channel USB device interface, support ADB connect to PC to exchange data and debug application.

● 4 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

● 1 channel 100M Ethernet interface.

● 1 channel SD/MMC slot, support TF /MMC card.

● 1 channel 3.5mm audio MIC interface.

● 1 channel 3.5mm audio HPC interface.

● 1 channel power amplifier interface (8Ω/3w) (optional).

● 1 channel SIM card interface .

● Six buttons: (1x Power, 1x Home, 2x Volume,1x User , 1x Reset ).

● 1 channel CAN interface.(optional).

● 1 channel 4G module . (optional)

● 1 channel WIFI module .(optional)

● Bluetooth ,GPS .(optional)

● 1 channel EDG3.5-3P  DC 12V~24V Power input interface .

OS

Android 6.0

Defend degree

/

Working environment

● power:DC 12V-24V (24V as recommendation)

● working temperature:-10~60℃

● storage temperature:-20~80℃

● working humidity:10~90%RH

Size

● No shell

● Size:194.5x107.5x25.4 (mm)

Application area

● industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

● Support CAN bus network deployment.

Software support

● Support EclipseAndroid StudioQT CreatorVisual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

● Easy change the user-defined splash screen.

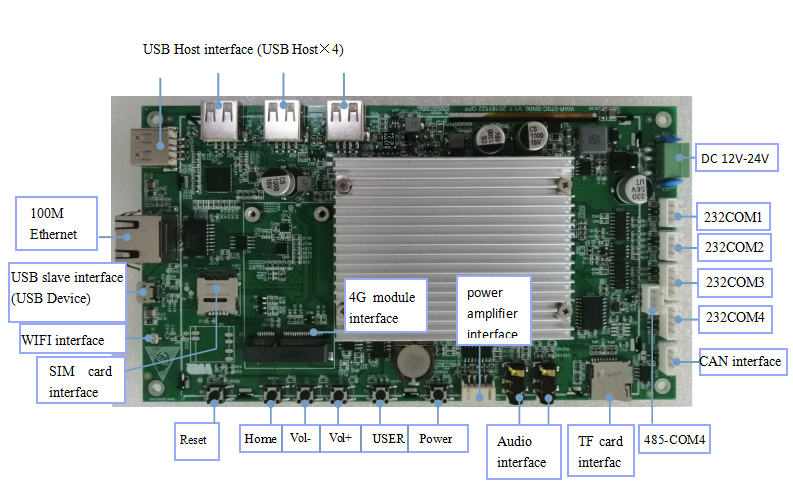

2. Interface definition



2.1 RS-232 interface

4 channel RS-232 serial port,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4.

2.2 RS-485 interface

The corresponding port in Android system is COM4, and 485-COM4 is a multiplexing of 232-COM4 .



2.3 CAN Bus interface

The function of Can-bus interface is optional .

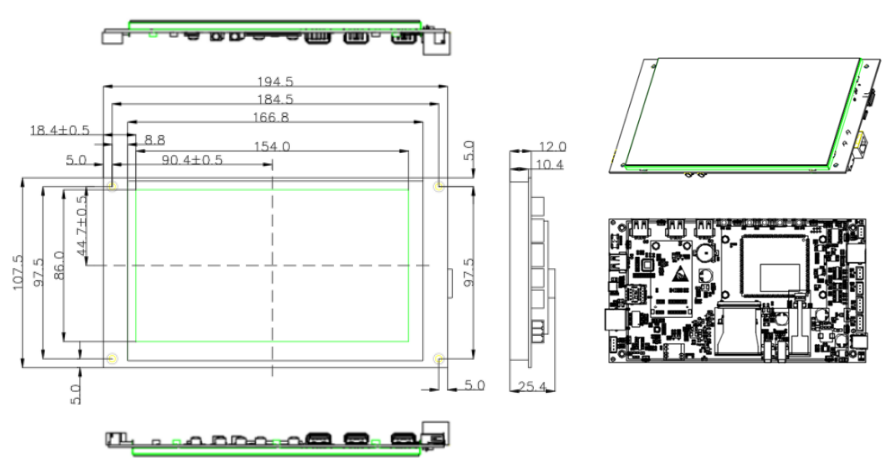

3.Exterior size

Exterior size :194.5x107.5x25.(mm)
