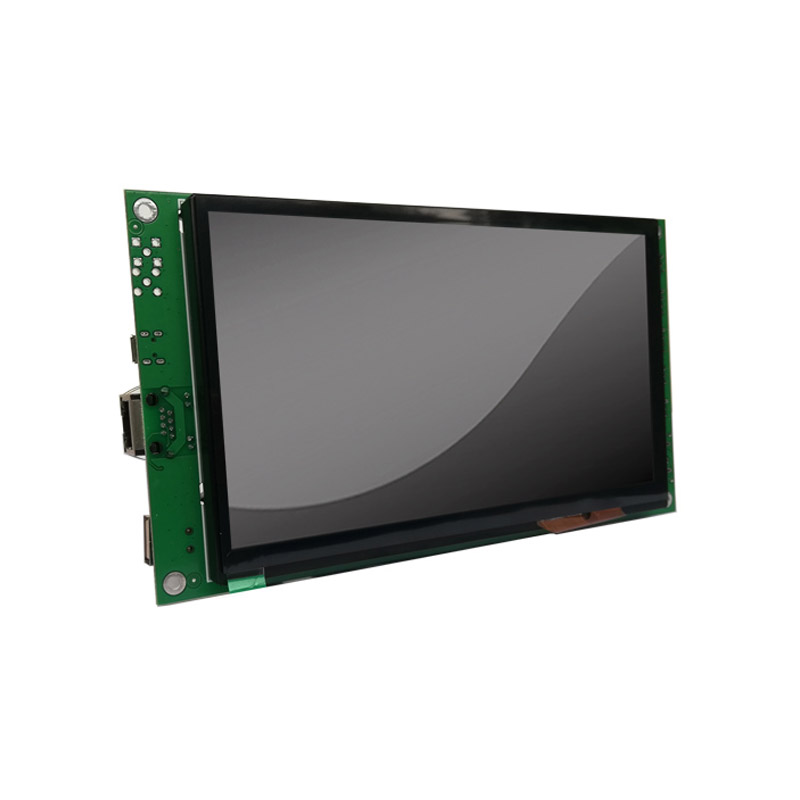

7 Inch Touch Module Industrial Panel PC Masterboard Touch Screen Industrial Monitor

Product model    WLT-070R-NN00

Basic   parameters

CPU:ARM9 architecture,frequency 300MHZ

Memory: 64MB DDR2

Flash:128MB NandFlash

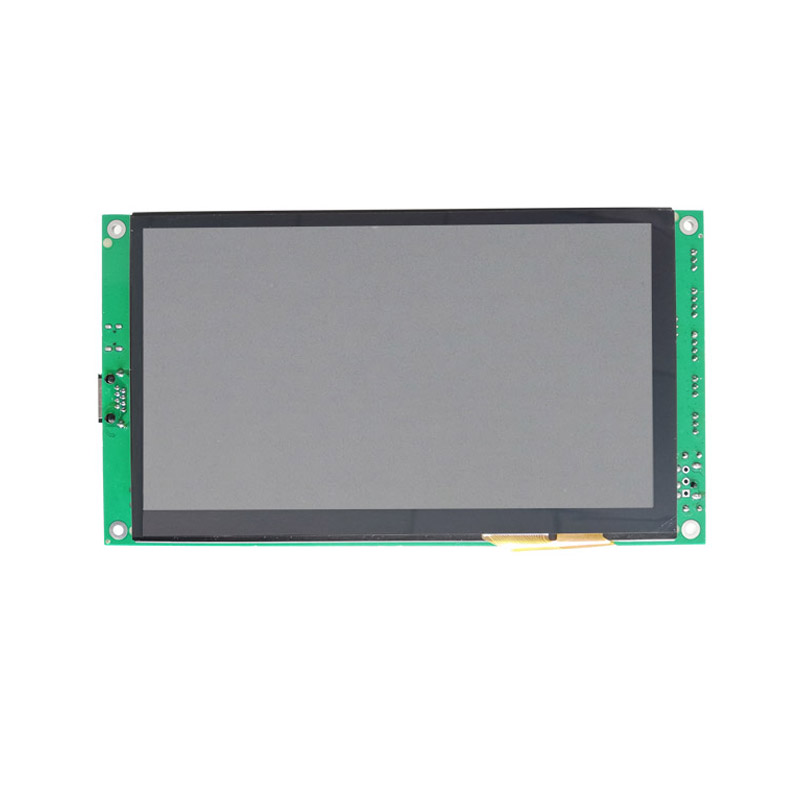

Display   screen

Size:7 inch

 Resolution:800×480

Wide-temperature type,64K colors or 260K colors

LED backlight:lifetime > 25000 hours

Touch   screen    4-wire resistance   touch screen(driver   inside)

Hardware   interface

 2 channel 3-wire RS-232 serial port(COM1,COM2)

1 channel USB device interface,support ActiveSync connect to PC to   exchange data and debug application.

1 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

 1 channel 100M Ethernet interface.

 1 channel TF slot, support SD/TF   card.

1 channel DC 12V~24V, industrial   power solution,higher   reliability.

OS    Windows CE 6.0

Defend   degree    /

Working   Environment

 Power:12V DC(12V~24V),600mA

working Temperature:-10~60℃

storage temperature:-20~80℃

working humidity:10~90%RH

Size

No shell

power:12~24V

size:188x110x23.5 (mm)

Trepanning size :167x105  (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Software   support

 Flash FAT file system protection function.

IDE: Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++,   Labview development.

Easy change the user-defined splash screen.

Support display screen rotation (degree: 0/90/180/270)
