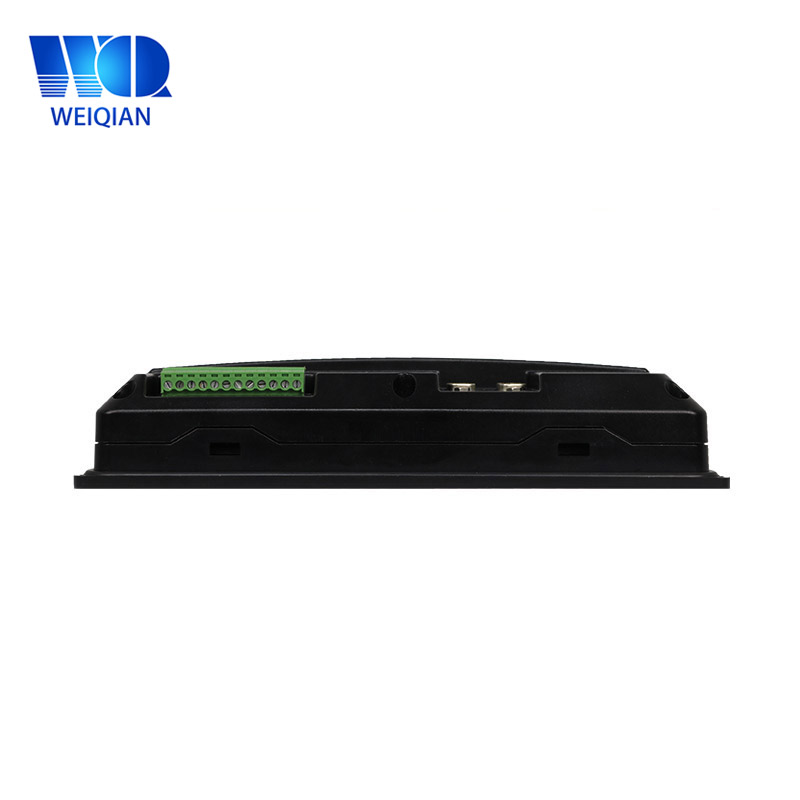

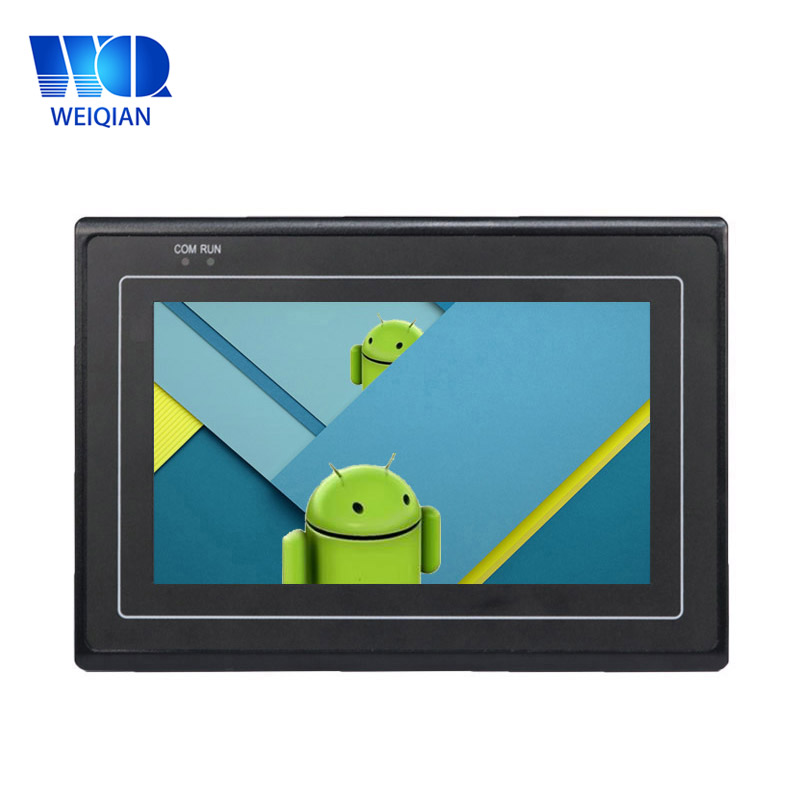

7 Inch Android industrial panel computer on board computer ruggedized pc industrial hmi

Keywords :

on board computer / ruggedized pc / industrial hmi


  • Hits : 266
  • Company : Guangzhou Weiqian computer technology co., LTD.
  • Telephone : bella@wqlcd.com
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
  • High reliability, no handling errors are allowed, and strict tests are passed
  • With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
  • Communication interface suitable for industrial use, easy to expand
  • Adapt to the industrial complex and harsh environment, such as strong, shockproof, moisture-proof, dust-proof, high temperature resistance

Product Details

1. Parameters

Product model

WAR-070C-SP10/WAR-070R-SP10

Basic parameters

CPU:Quad-core Cortex®-A9 architecture,frequency 1.4GHz

 Memory:1GB DDR3

 Flash:8GB NandFlash

Display screen

 Size:7 inch

 Resolution:1024×600

 Wide-temperature type,16000k colors or 24-bit true colors

 LED backlight:lifetime > 25000 hours

Touch screen

Capacitance/Resistance touch screen

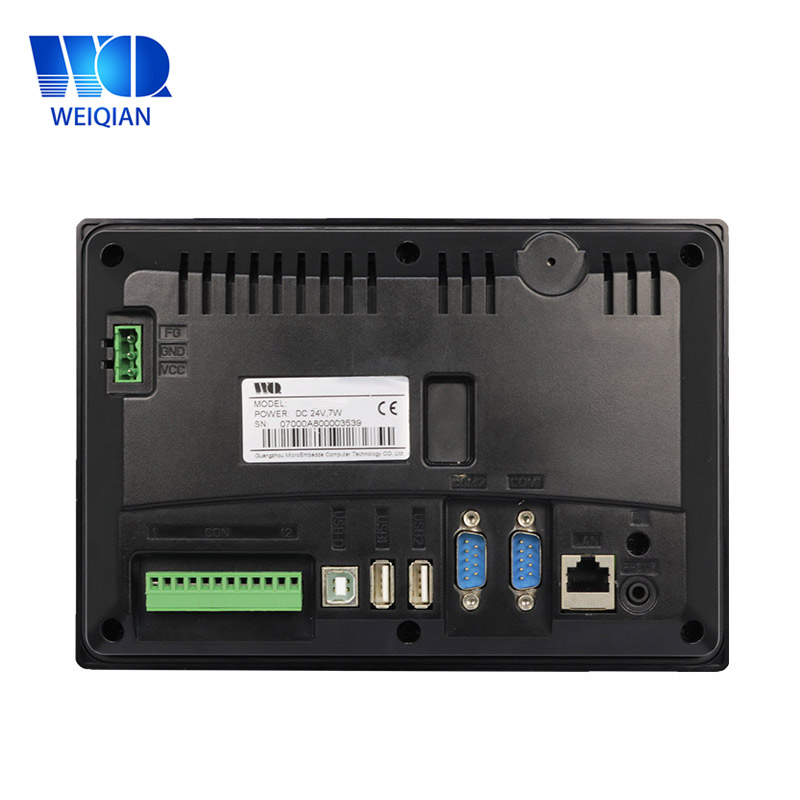

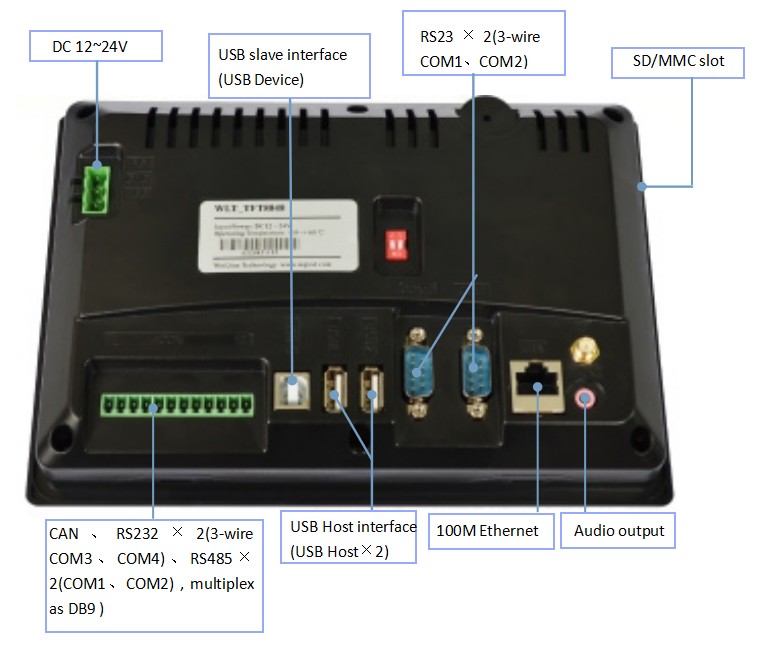

Hardware interface

 4 channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4)

 2 channel RS-485(COM1,COM2)multiplex as RS-232 (COM1,COM2) ( isolated as optional)

 1 channel isolated CAN bus.(optional)

 1 channel USB device interface, support ADB connect to PC to exchange data and debug application.

 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

 1 channel 100M Ethernet interface.

 1 channel SD/MMC slot,support mini SD/MMC .

 1 channel 3.5mm earphone output interface.

 1 channel WIFI module .(optional)

 DC12V~24V,  industrial power solution,higher reliability.

Built-in WIFI , Bluetooth module .(optional)

Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.

OS

Android 4.4.2/Android 5.1

Defend degree

IP65 (front panel)

Working environment

 power:DC 12V-24V (24V as recommendation)

 working Temperature:-10~55℃

 storage temperature:-20~80℃

 working humidity:10~90%RH

Size

 shell structure:plastic

 panel size:206.00×142.00 (mm)

 trepanning size:195.6×131.6 (mm)

Application area

 industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

 Support CAN bus network deployment.

Software support

 Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

 Easy change the user-defined splash screen.

2. Interface definition


1  CANL

2 CANH

3 GND

4 COM3-RX of RS-232

5 COM3-TX of RS-232

6 COM4-RX of RS-232

7 COM4-TX of RS-232

8 COM2-485B

9 COM2-485A

10 GND

11 COM1-485B

12 COM1-485A



2.1 RS-232 interface

4 channels,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485.

2.2 RS-485 interface

The corresponding port in Android system is COM1,COM2. And COM1/COM2 is a multiplexing of COM1/COM2 of RS-232 interface. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .

2.3 CAN Bus interface

The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .

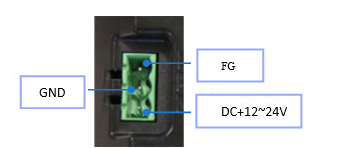

2.4 Power interface

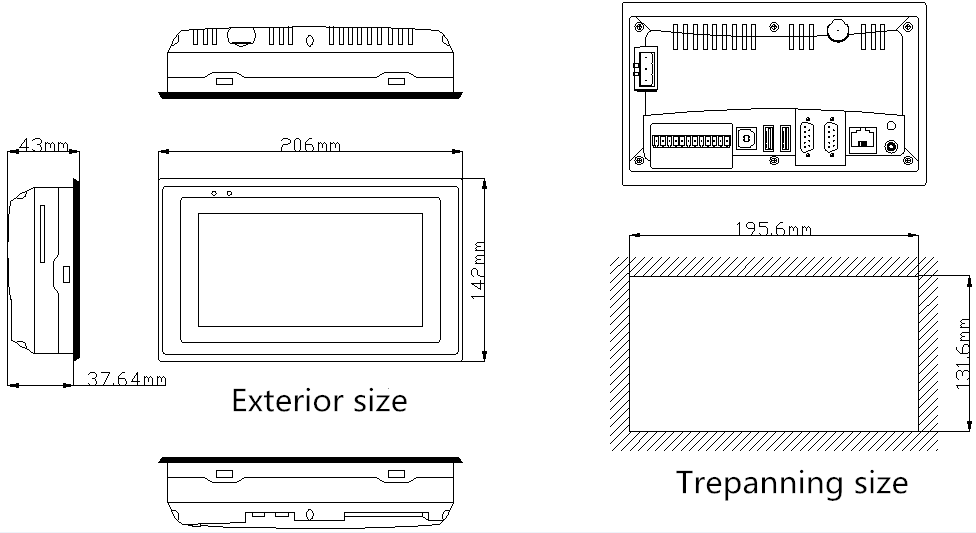

3. Exterior size

Exterior size:206×142(mm)            Trepanning size:195.6×131.6(mm)
