Parameters

Product model

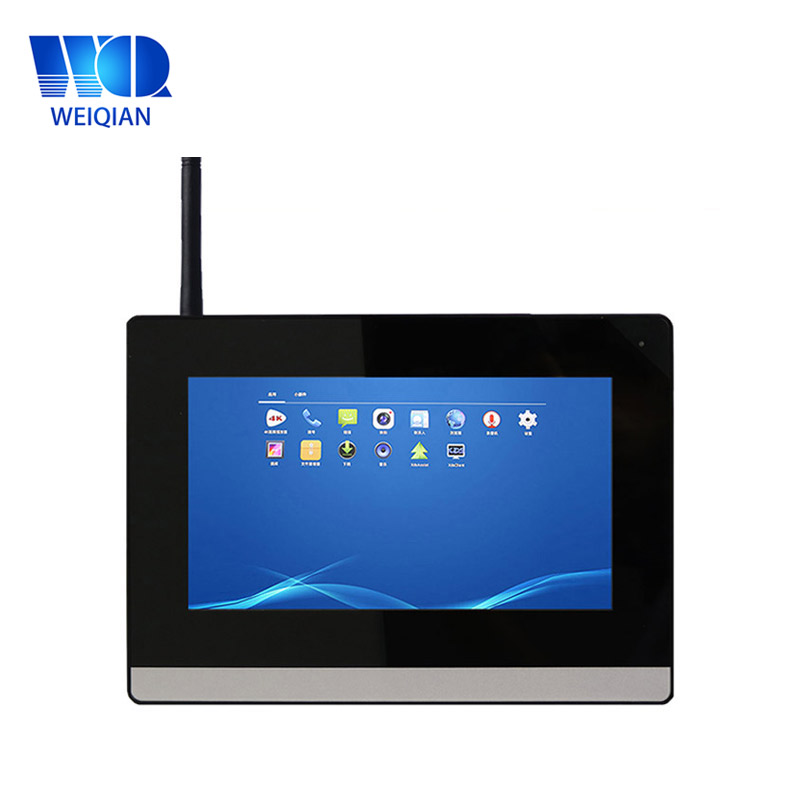

WAR-070C-SS10

Basic parameters

● CPU:Quad-core Cortex®-A9 architecture; Frequency 1.4GHz

● Memory:1GB DDR3

● Flash:8GB NandFlash

Display screen

● Size:7 inch

● Resolution:1024×600

● Wide-temperature type,16000k colors or 24-bit true colors

● LED backlight:lifetime > 25000 hours

Touch screen

Capacitance/Resistance touch screen

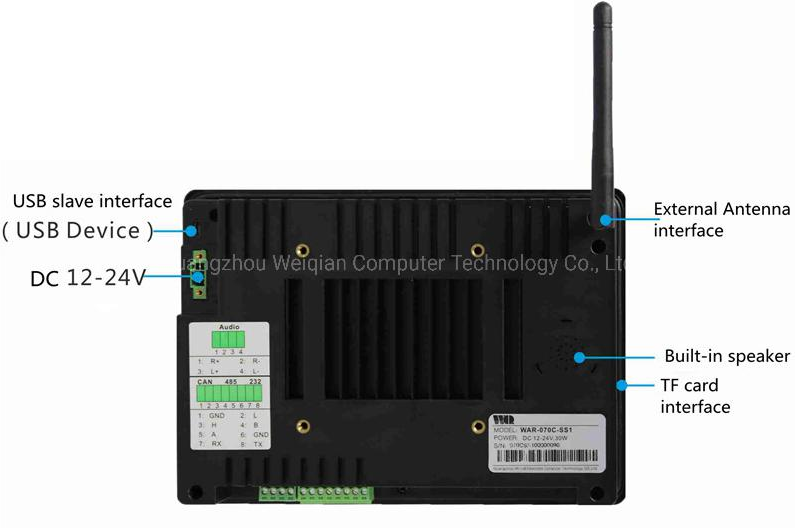

Hardware interface

● 1 channel DB9 interface(COM1)(Isolation as optional).

● 1 channel 3-wire RS-232 serial port(COM2)(Isolation as optional).

● 1 channel RS-485 interface(COM3)(Isolation as optional).

● 1 channel isolated CAN bus interface(optional).

● 1 channel external WIFI antenna interface (optional).

● 1 channel USB Device interface,support ADB connect to PC to exchange date and debug application .

● 2 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc.

● 1 channel 100M Ethernet interface.

● 1 channel SD/MMC slot,support TF card.

● 1 channel audio output interface .

● 1 channel built-in speaker interface (optional).

● 1 channel external speaker interface, power 8 Ω1.7 W or 4 Ω 3 W(optional).

● 1 channel 4G communication card interface .

● 1 channel DC 12V~24V power input .

● Built-in 4G Module ,WIFI , Bluetooth  (optional) .

Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.

OS

Android 4.4.2 /Android 5.1

Defend degree

IP65 (front panel)

Working environment

● power:DC 12V-24V (24V as recommendation)

● working temperature:-10~60℃

● storage temperature:-20~80℃

● working humidity:10~90%RH

Size

● shell structure:plastic

● panel size:202.1×144.1 (mm)

● trepanning size:192.1×134.1 (mm)

Application area

● industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

● Support CAN bus network deployment.

Software support

● Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

● Easy change the user-defined splash screen.

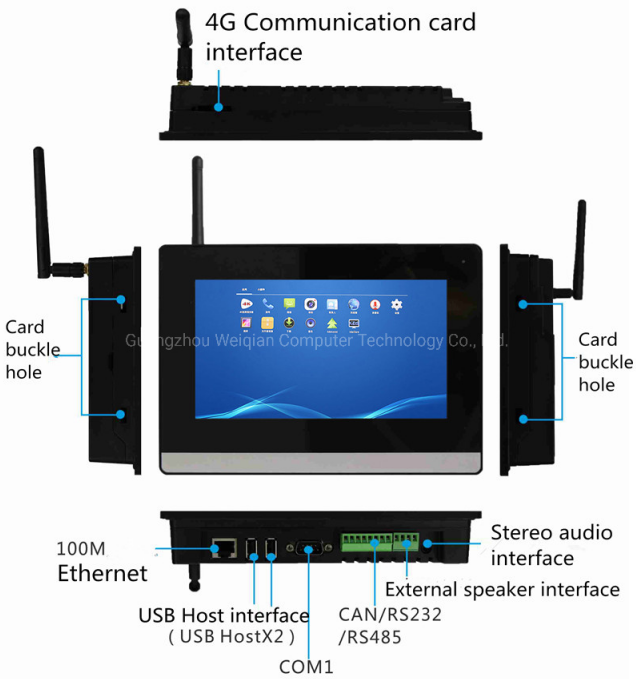

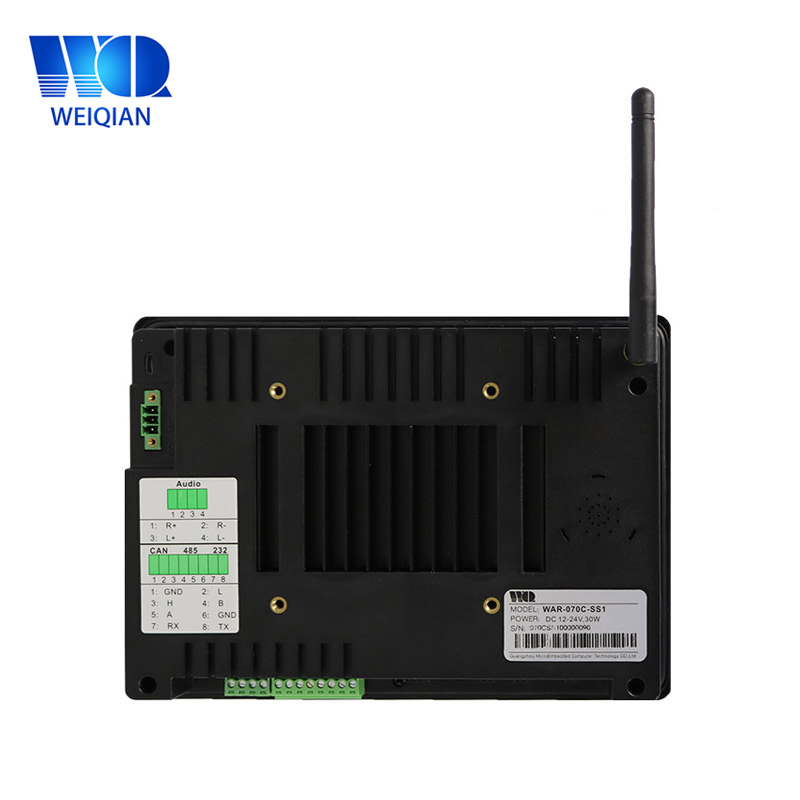

2. Interface definition

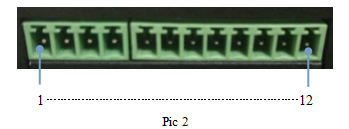

1. External speaker interface  R+

2. External speaker interface  R-

3. External speaker interface  L+

4. External speaker interface  L-

5. GND

6. CANL

7. CANH

8. COM3-485B

9. COM3-485A

10. GND

11. COM2-RX of RS-232

12. COM2-TX of RS-232

2.1 RS-232 interface

2 channel RS-232 serial port,support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 , COM2.

2.2 RS-485 interface

The corresponding port in Android system is COM3 .

2.3 CAN Bus interface

The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside , pls specify once in need .

2.4 Power interface

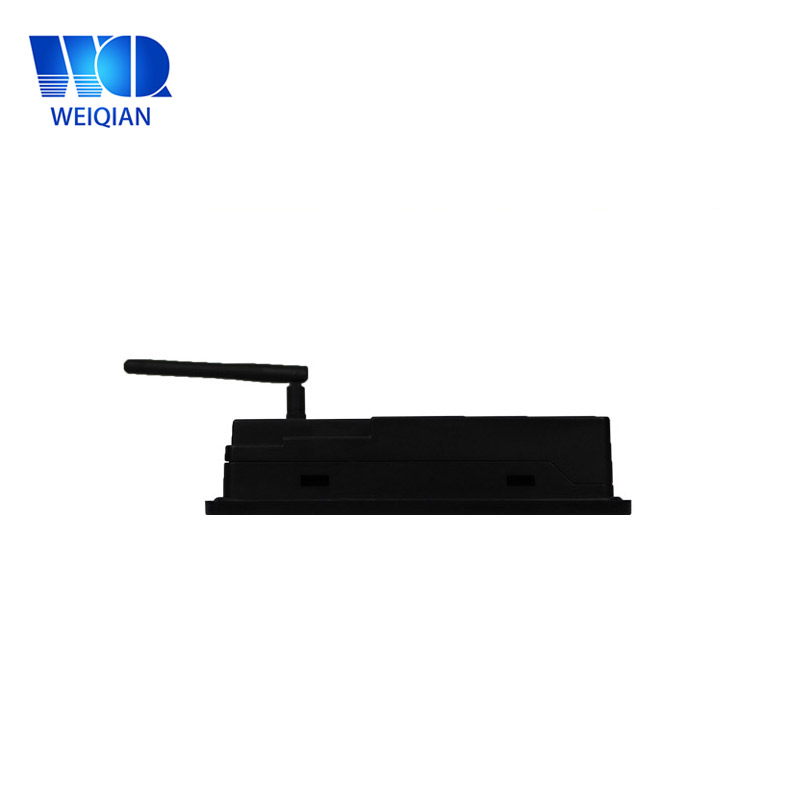

3. Exterior size

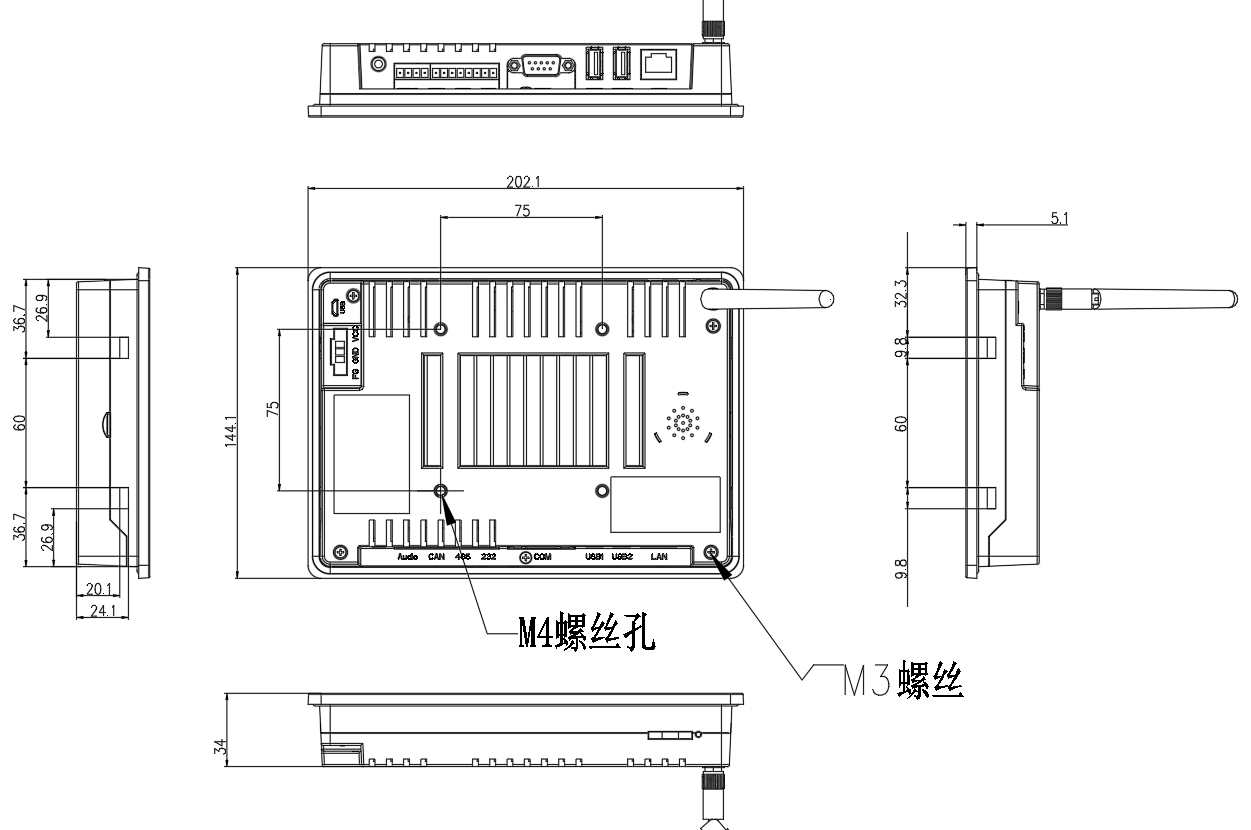

Exterior size:202.1×144.1×34(mm)     Trepanning size:192.1×134.1(mm)
