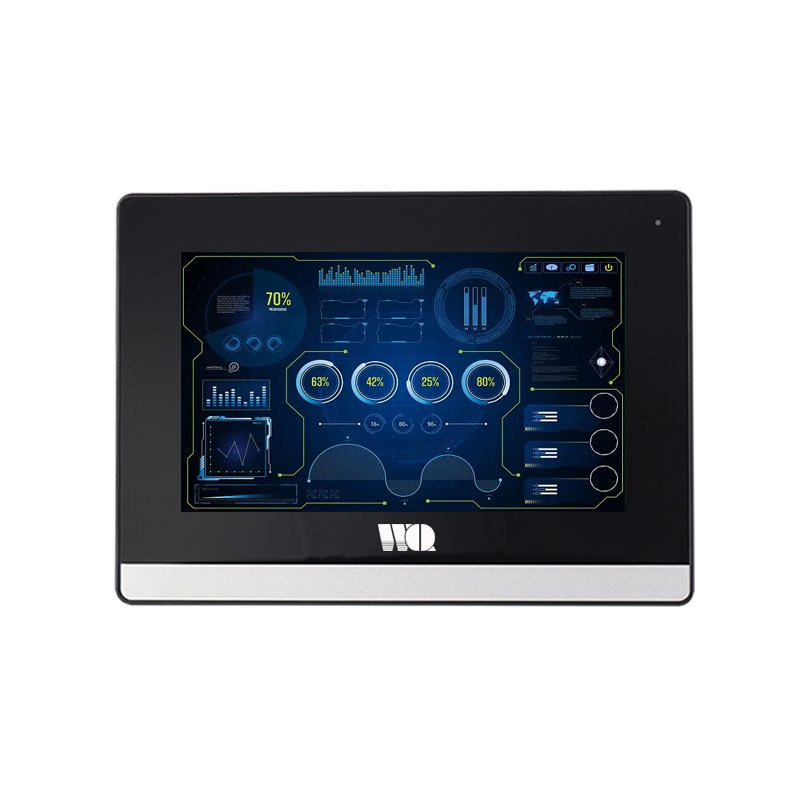

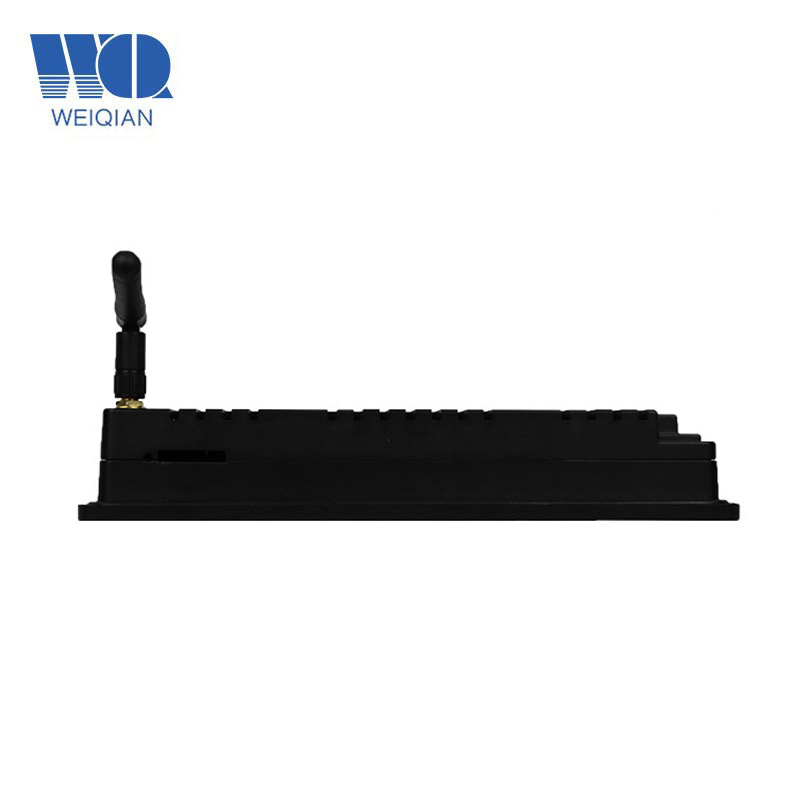

Product   model  WLX-070C-SS10

Basic   parameters

CPU:Quad-core Cortex®-A9 architecture,frequency 1.4GHz

Memory:1GB DDR3

Flash:8GB NandFlash

Display   screen

Size:7 inch

Resolution:1024×600

Wide-temperature type,16000k colors or 24 true colors

LED backlight:lifetime > 25000 hours

Touch   screen

Capacitance/Resistance touch screen

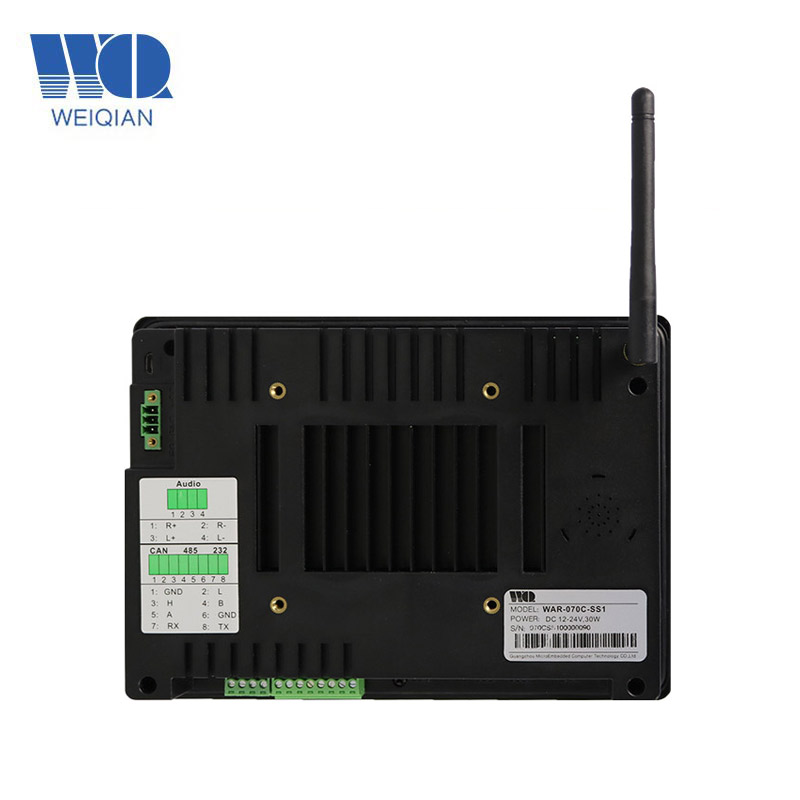

Hardware   interface

1 channel DB9 interface(COM1).

1 channel 3-wire RS-232 serial port(COM2).

1 channel RS-485 interface(COM3).

1 channel isolated CAN bus interface(optional).

1 channel external antenna   interface.

1 channel USB Device interface,support ADB connect to PC to exchange date and debug   application .

2 channel USB Host interface,   support usual USB device such as mouse, keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot,support TF   card.

1 channel audio output interface .

1 channel speaker interface.

1 channel 4G communication card   interface .

1 channel DC 12V~24V .

Built-in 4G ,WIFI ,Bluetooth (optional) .

OS  Linux

Defend   degree

IP65 (front panel)

Working   environment

power:DC 12V-24V (24V as recommendation)

working temperature:-10~60℃

storage temperature:-20~85℃

working humidity:10~90%RH

Size

shell structure:plastic

panel size:201.5×143.5×34.5 (mm)

trepanning size:191.5×133.5 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software   support

QT Creator(QT C++)development, easy to use other software flexibly.

Easy change the user-defined splash   screen.
