Five Advantages Of Products

High stability, 7x24 hours without downtime, using fanless CPU processor with low power consumption and high stability
High reliability, no handling errors are allowed, and strict tests are passed
With self-recovery function, to deal with unexpected situations, such as uninterrupted disconnection and shutdown for a long time
Communication interface suitable for industrial use, easy to expand
Simple and easy secondary development, multi-platform, multi-language support, providing routines

Product Details

1. Parameters

Product model

WLT-043R-NN00

Basic parameters

● CPU:ARM9 architecture;Frequency 300MHZ

● Memory: 64MB DDR2

● Flash:128MB NandFlash

Display screen

● Size:4.3 inch

● Resolution:480×272

● Wide-temperature type,64K colors or 260K colors

● LED backlight:lifetime > 25000 hours

Touch screen

4-wire resistance touch screen(driver inside)

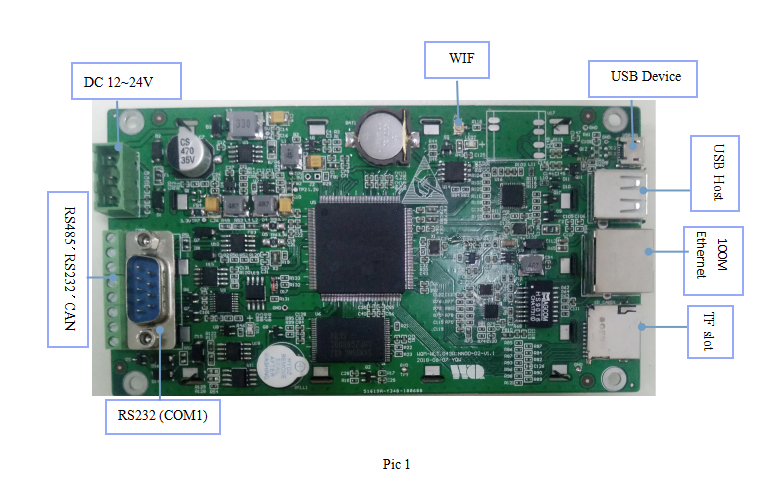

Hardware interface

● 1 channel DB9 interface(COM1).

● 1 channel 3-wire RS-232 serial port(COM2)

● 2 channel RS-485 interface(COM3,COM7),COM3 is a multiplexing of CAN , COM3 as standard .

● 1 channel USB device interface,support ActiveSync connect to PC to exchange data and debug application.

● 1 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

● 1 channel 100M Ethernet interface.

● 1 channel TF slot, support SD/TF card.

● 1 channel CAN interface(driver inside)(optional)

● 1 channel DC12V~24V Power Input interface .

Attention

When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.

Windows CE 6.0

Defend degree

Working Environment

● Power: DC 12V~24V,600mA

● Working temperature:-10~60℃

● Storage temperature:-20~80℃

● working humidity:10~90%RH

Size

● No shell

● power:DC12~24V

● Size :144x77.7x25.3 (mm)

● trepanning size:108x69.5 (mm)

Application area

● industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

Software support

● Flash FAT file system protection function.

● IDE: Visual Studio 2005/2008.net(.net 2.0 Compact), EVC++, Labview development.

● Easy change the user-defined splash screen.

● Support display screen rotation (degree: 0/90/180/270)

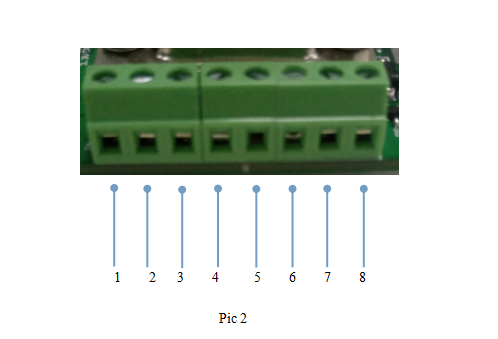

2. Interface definition

1. COM7-485B

2. COM7-485A

3. GND

4. COM2-RX of RS-232

5. COM2-TX of RS-232

6 GND

7 COM3-485B (CANL)

8 COM3-485A (CANH)

2.1 RS-232 interface

2 channel serial port, support the highest-level baudrate115200bps. The corresponding interface in Linux system is COM1 ~ COM2.

2.2 RS-485 interface

The corresponding port in Linux system is COM3,COM7.

2.3 CAN Bus interface

The function of Can-bus interface is optional . Also, without terminal resistance inside ,pls specify once in need.

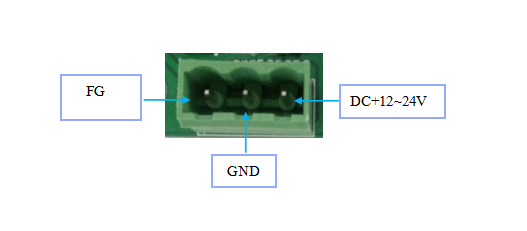

2.4 Power interface

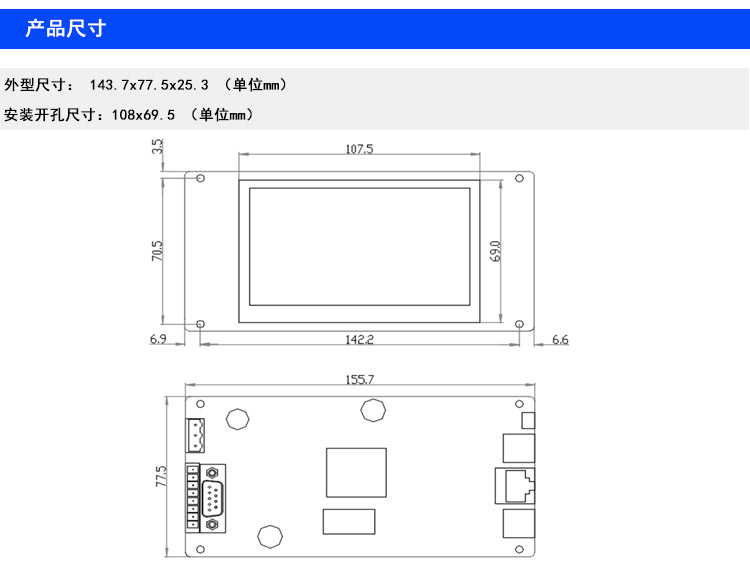

3. Exterior size

Exterior size:144x77.5x25.3(mm) Trepanning size:108x69.5 (mm)
