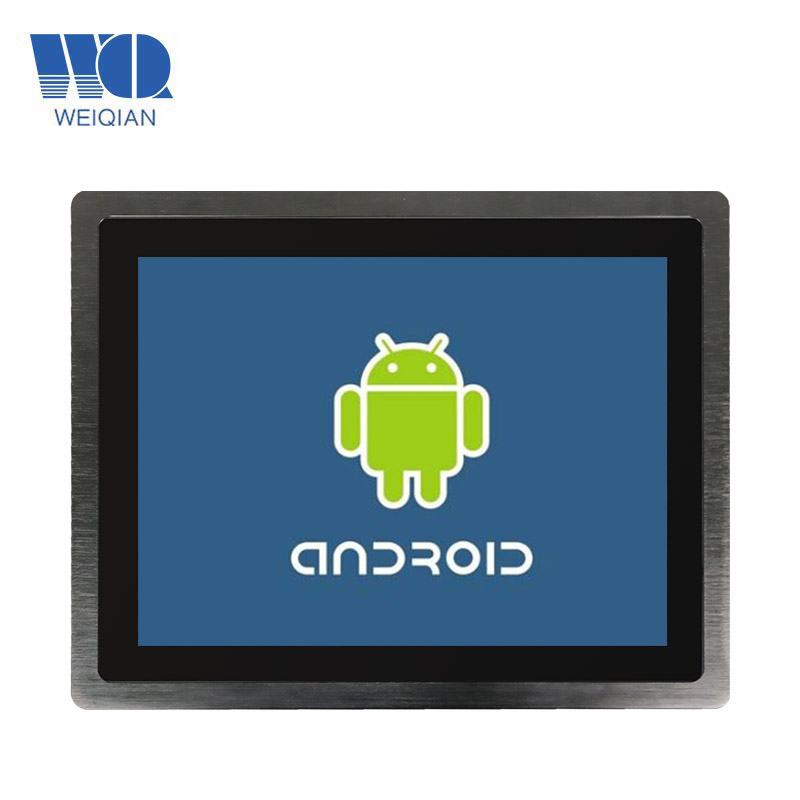

Product   model  WAR-150C-SM10/WAR-150R-SM10

Basic   parameters

CPU:Quad-core Cortex®-A9 ,frequency   1.4GHz

Memory:1GB DDR3

Flash:8GB NandFlash

Display   screen

Size:15 inch

Resolution:1024×768

Wide-temperature type,16000k colors or 24 true colors

LED backlight:lifetime > 25000 hours

Touch   screen

Capacitance/Resistance touch screen

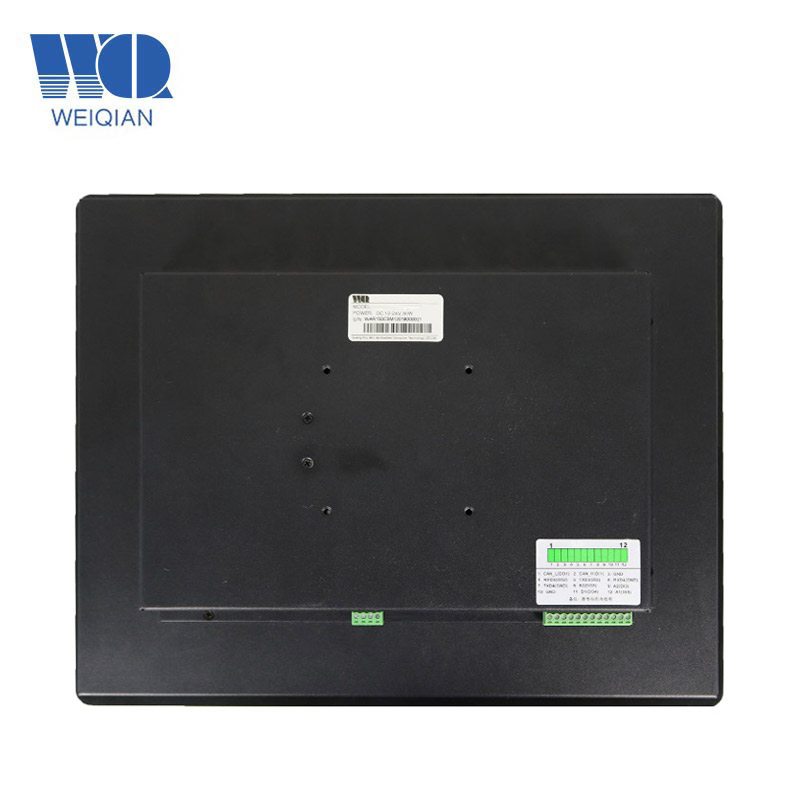

Hardware   interface

2 channel DB9 interface(COM1,COM2).

2 channel 3-wire RS-232 serial port(COM3, COM4).

2 channel RS-485 interface(COM1、COM2 ), multiplex as COM1、COM2 of RS-232.(Signal isolated as optional)

1 channel CAN bus.(optional)

1 channel USB Device interface,support ADB connect to PC to   exchange data and debug application.

2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot.

1 channel external Speaker   interface.

1 channel external antenna.

2 channel DC12V~24V,industrial power solution,higher reliability.

Built-in WIFI, Bluetooth module  (optional ).

OS  Android 4.4.2

Defend   degree

IP65 (front panel)

Working   Environment

power:12V-24V DC/3A

working Temperature:-10~60℃

storage temperature:  -20~80℃

working humidity:10~90%RH

Size

shell structure:metal

Panel size:378.2x302.6x50  (mm)

Trepanning size:359x283.5 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software   support

Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

Easy change the user-defined splash   screen.
