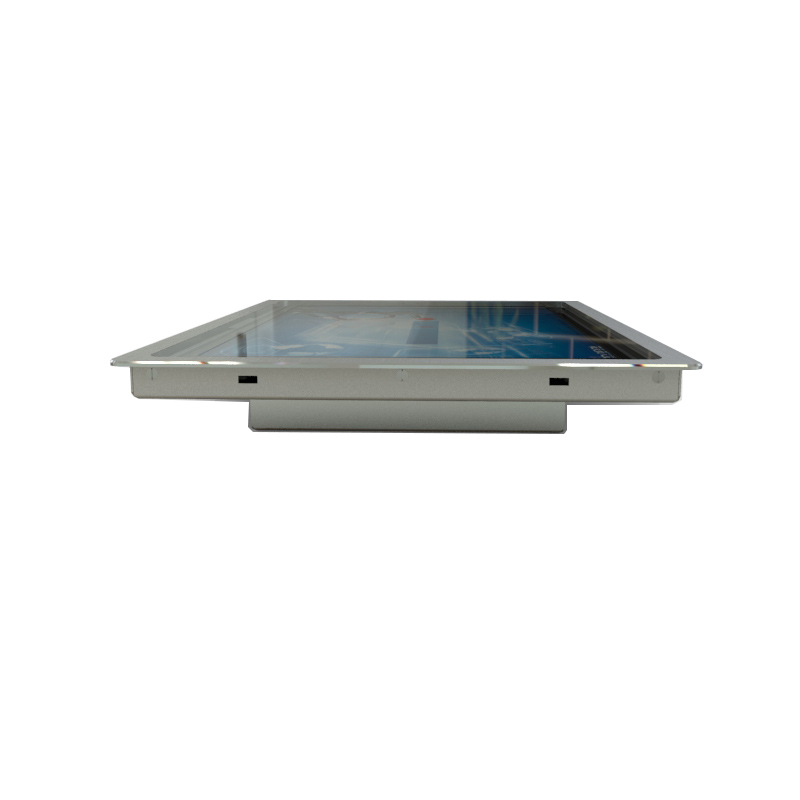

15 Inch All in One Industrial Tablet PC

Product model

WLX-150R-AM10

Basic   parameters

CPU: Cortex -A8 architecture,frequency 1.0GHZ

 Memory: 512MB DDR3

Flash:256MB NandFlash

Display   screen

Size:15 inch

Resolution:1024×768

 Wide-temperature type,16000k colors or 24 true colors

 LED backlight:lifetime > 25000 hours

Touch   screen

5-wire resistance touch screen(driver inside)

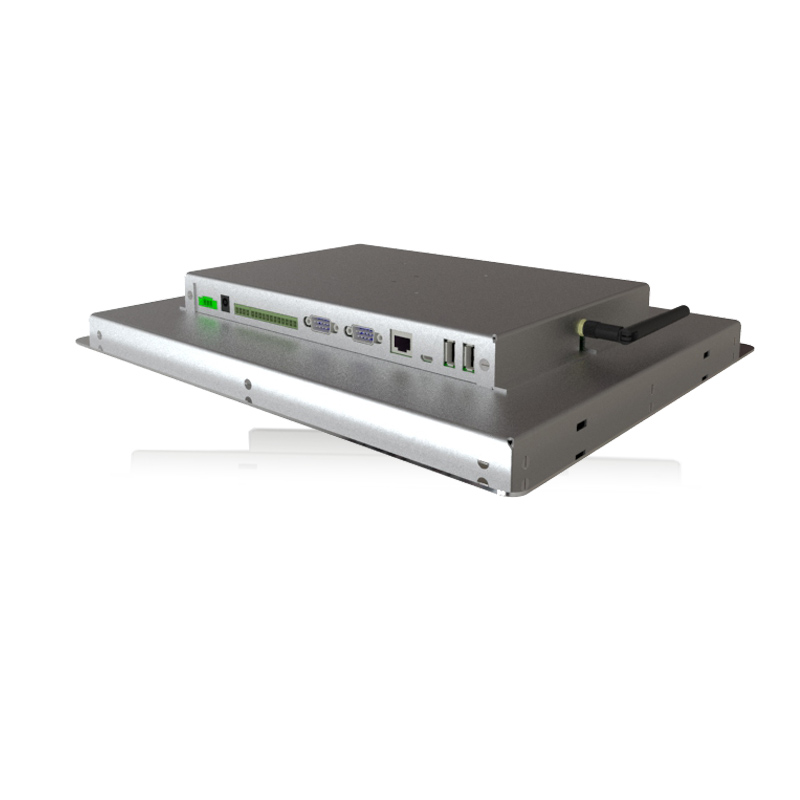

Hardware   interface

2 channel DB9 interface(COM1,COM2)

1 channel 3-wire RS-232 serial port(COM3)

2 channel RS-485 interface(COM1,COM2 ), multiplex as COM1,COM2 of RS-232.(Signal isolated as optional).

1 channel CAN bus.(optional).

1 channel USB Device interface.

2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot.

1 channel external Speaker   interface.

 1 channel external antenna.

 2 channel DC12V~24V,industrial power solution,higher reliability.

 Built-in WIFI, Bluetooth    (optional )

OS

Linux

Defend   degree

IP65 (front panel)

Working   environment

Power:DC 12V-24V  /3A

Working temperature:-10~60ºC

Storage temperature:-20~80ºC

 Working humidity:10~90%RH

Size

 shell structure:metal

panel size:378.5x302.5(mm)

 trepanning size:360x284 (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

 Support CAN bus network deployment.

Software   support

Flash power-down   protection function.

QT Creator(QT C++)development, easy to flexibly use other software .

Easy change the user-defined splash   screen.

 Support display screen rotation (degree:   0/90/180/270).
