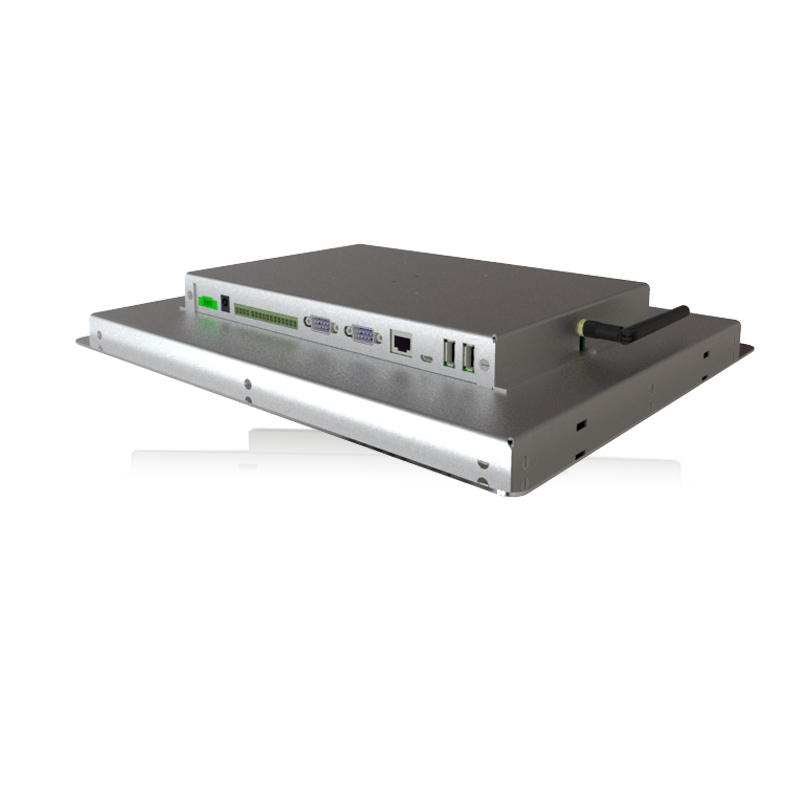

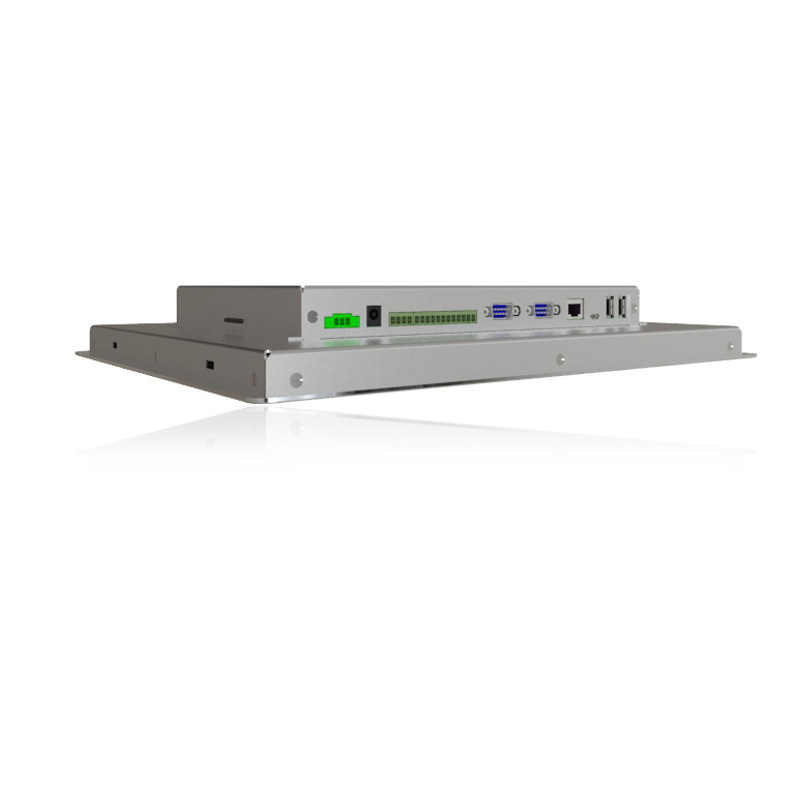

15.6 Inch Android Touch Screen Embedded Industrial PC

Keywords :

15.6 Inch Android Touch Screen / Embedded Industrial PC / 15.6 Inch Embedded Industrial PC


  • Hits : 45
  • Company : Guangzhou Weiqian computer technology co., LTD.
  • Telephone : bella@wqlcd.com
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Support CAN bus to facilitate customers to build fieldbus network
  • Front panel IP65 , designed by industrial standard
  • Easy for secondary development
  • High stability,7x24 hours no shutdown no outage.
  • Multi- industrial communication interface RS-232, RS-485 .

Product Details

Product Details

Product model  WAR-156C-SM20
15.6 Inch Android Touch Screen Embedded Industrial PC Basic parameters

CPU:Octa-core Cortex®-A53 architecture ,frequency 1.4GHz

Memory:2GB DDR3

Flash:8GB NandFlash

Display screen

Size:15.6 inch

Resolution:1920×1080

Wide-temperature type,262k colors or 18 true colors

LED backlight:lifetime > 25000 hour

Touch screenCapacitance touch screenHardware interface

2 channel 3-wire RS-232 serial port(COM3,COM4).

2 channel RS-485(COM1,COM2) .

1 channel CAN bus interface.(optional).

1 channel USB device interface, support ADB connect to PC to exchange data and debug application.

2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot, support TF /SD card.

1 channel power adapter interface (DC12V~24V) .

1 channel external WIFI interface  (optional).

Built-in WIFI , Bluetooth (optional).

OSAndroid 5.1Defend degreeIP65 (front panel)Working Environment

power:DC 12V-24V (24V as recommendation)

working Temperature:0~50ºC

storage temperature:0~60ºC

working humidity:10~90%RH

Size

shell structure: Metal

panel size:398.35×248.35×45.9 (mm)

15.6 Inch Android Touch Screen Embedded Industrial PC Application area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application.

Support CAN bus network deployment.

Software support

Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc .

Easy change the user-defined splash screen.
