Product model    WLT-120R-AM20

Basic    parameters

    CPU: Cortex -A8 architecture,frequency 1.0GHZ

    Memory: 512MB DDR3

    Flash:256MB NandFlash

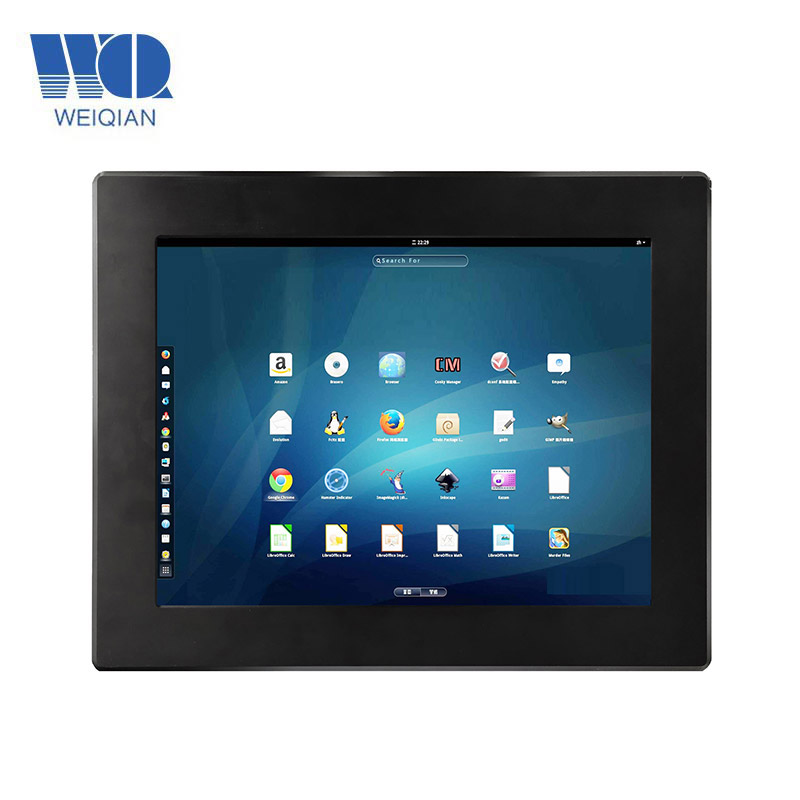

Display    screen

    Size:12 inch

    Resolution:800×600

    Wide-temperature type,64K colors or 260K colors

    LED backlight:lifetime > 25000 hours

Touch    screen

4-wire resistance touch screen(driver inside)

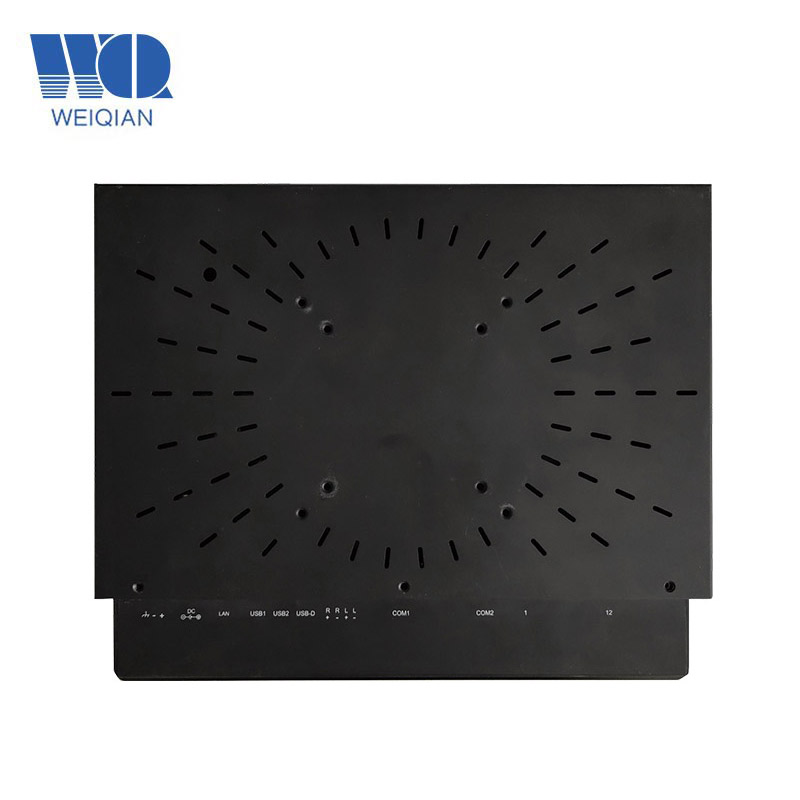

Hardware interface

    2 channel DB9 interface (COM1,COM2)

    3 channel 3-wire RS-232 serial port (COM3、COM4、COM5)

    2 channel RS-485 interface(COM1、COM2)multiplex    as DB9 (COM1、COM2).(Signal    isolated as optional)

    1 channel CAN bus, multiplex as COM5,COM5    as standard .(optional),

    1 channel USB device interface,support ActiveSync connect to PC to    exchange data and debug application

    2 channel USB Host interface,support usual USB device such as mouse,    keyboard, U disk ,etc.

    1 channel 100M Ethernet    interface.

    1 channel SD/MMC slot.

    1 channel External Speaker    interface.

    2 channel DC12V~24V,industrial power solution,higher reliability.

OS    Windows CE 6.0

Defend    degree

IP65 (front panel)

Working    Environment

    power:12V-24V DC/3A

    working Temperature:-10~60℃

    storage temperature: -20~80℃

    working humidity:10~90%RH

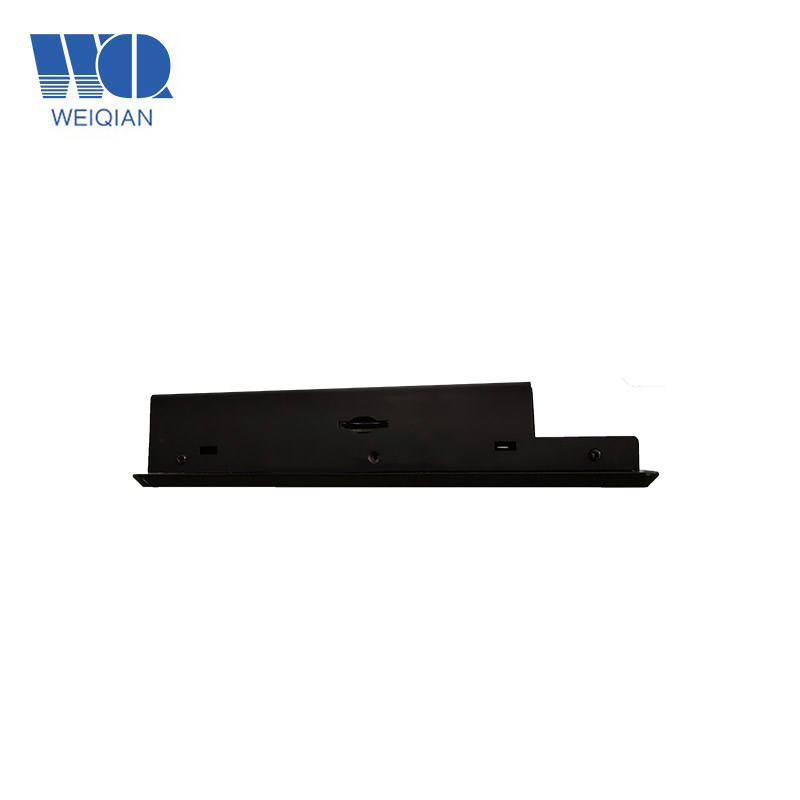

Size

    shell structure:metal

    panel size:319x259(mm)

    trepanning size:305.2x245.8 (mm)

Application    area

    industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent    terminals embedded high-end application.

    Support CAN bus network deployment.

Software support

    Flash power-down    protection function.

    IDE: Visual Studio 2005/2008.net(.net 2.0 Compact)、Labview development.

    Easy change the user-defined splash    screen.

    Support display screen rotation (degree:    0/90/180/270)
