Product model  WLX-104R-AP10

Basic   parameters

CPU: Cortex -A8 architecture,frequency 1.0GHZ

Memory: 512MB DDR3

Flash:256MB NandFlash

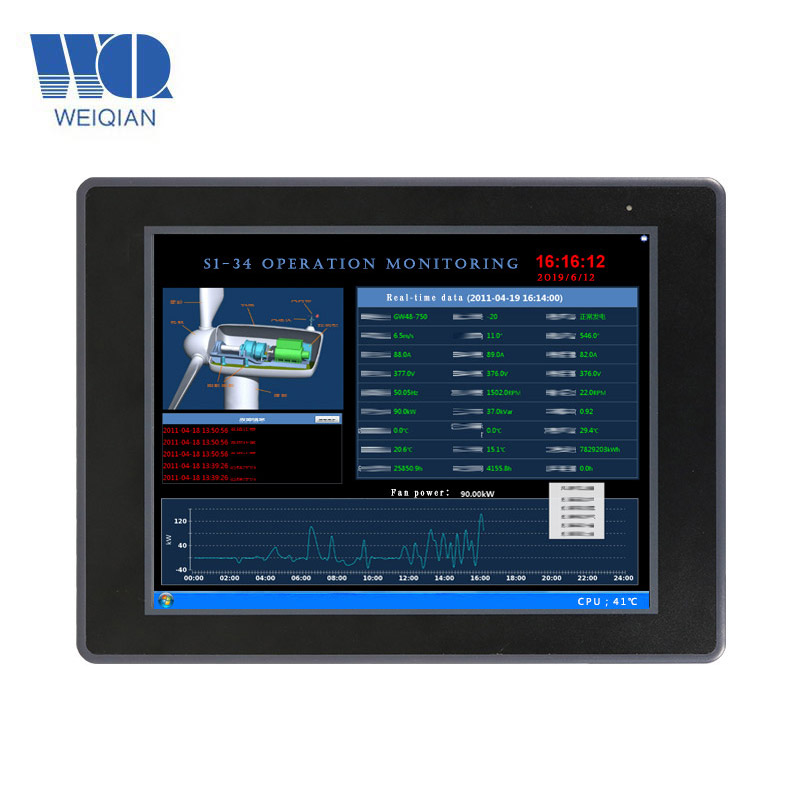

Display   screen

 Size:10.4 inch

Resolution:800×600

Wide-temperature type,64K colors or 260K colors

LED backlight:lifetime > 25000 hours

Touch screen

4-wire resistance touch screen

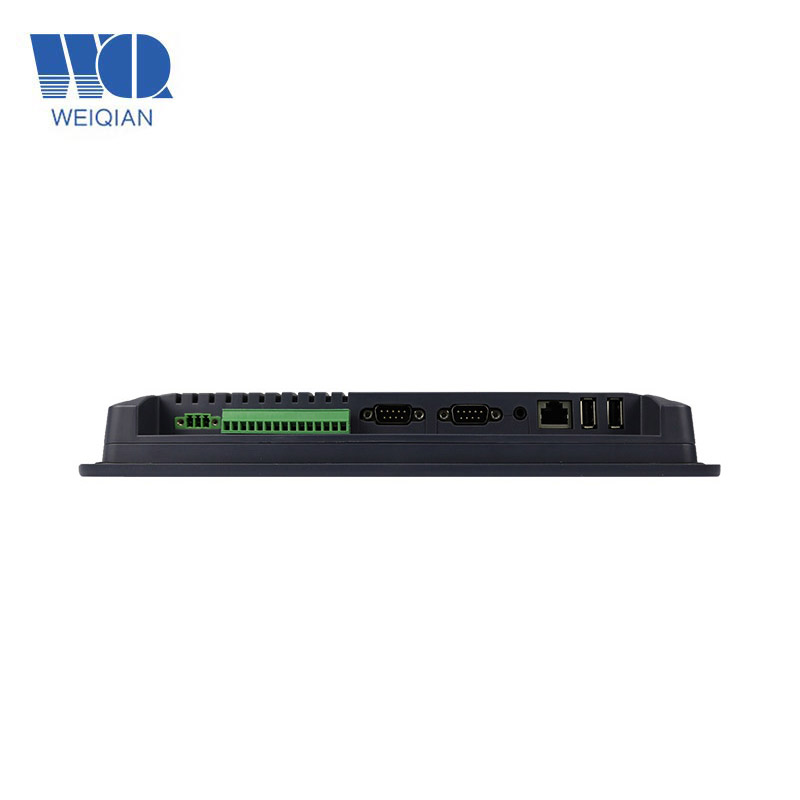

Hardware   interface

 5channel 3-wire RS-232 serial port(COM1,COM2,COM3,COM4,COM5),2 channel(COM1,COM2)multiplex as RS-485 bus. And COM5 is   a multiplexing of CAN .

 1 channel CAN bus.(optional).

1 channel USB device interface.

2 channel USB Host interface,support usual USB device such as mouse,   keyboard, U disk ,etc.

1 channel 100M Ethernet interface.

1 channel SD/MMC slot, support TF   card.

1 channel 3.5mm audio output   interface.

1 channel built-in Speaker   interface.(optional).

1 channel  WIFI antenna.(optional).

 DC 12V~24V,isolated industrial power solution,higher reliability.

 Built-in WIFI, Bluetooth    (optional )

OS  Linux

Defend   degree

IP65    (front panel)

Working   environment

power:DC 12V-24V  /1A

working temperature:-10~60ºC    storage   temperature:-20~80ºC

working humidity:10~90%RH

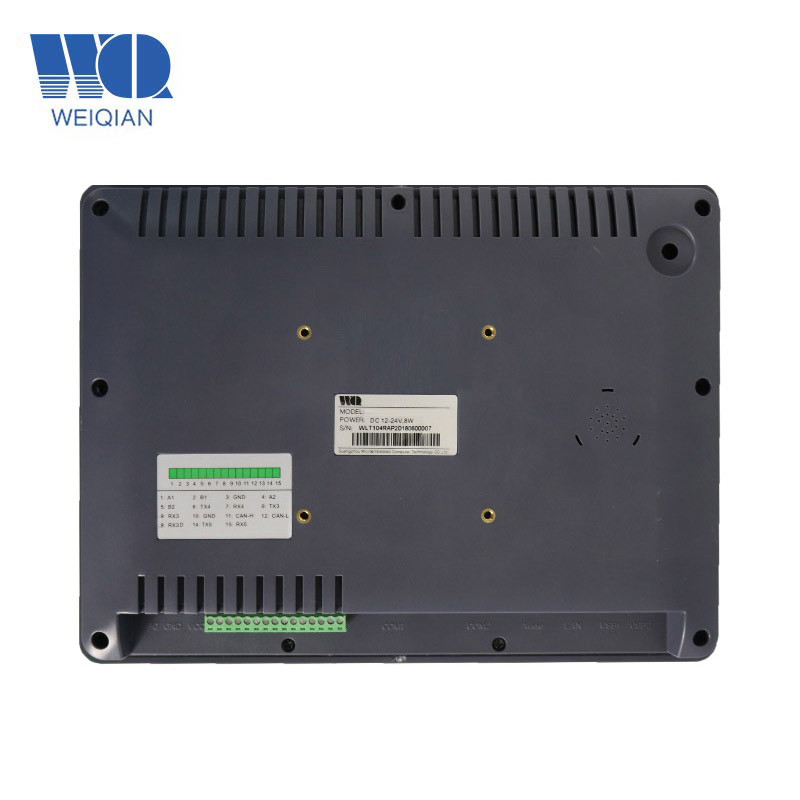

Size

 shell structure:plastic

power:DC 12V-24V (24V   as recommendation)

panel size: 280.9×212.3     (mm)

trepanning size: 268.6×200.1     (mm)

Application   area

industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent   terminals embedded high-end application.

Support CAN bus network deployment.

Software   support

Flash power-down protection function.

QT Creator(QT C++)development, easy to flexibly use other software .

Easy change the user-defined splash screen.

Support display screen rotation (degree: 0/90/180/270)
